Commissioning

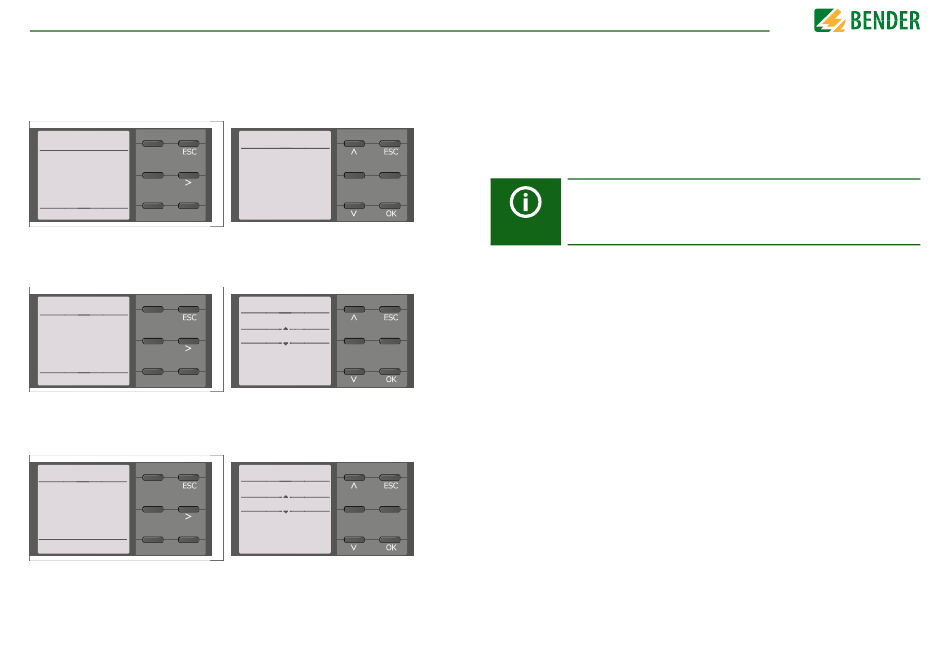

7.2.6 Setting EDS current

Set the maximum locating current.
EDS441: 1-5 mA
EDS440: 10-50 mA
For further information, refer to "Current" on page
lle
Commissioning 6.6
Please select
the locating
current
8/11
7.2.7 Set response value R
an1
You can set the prewarning response value here.
A value of 100 Ω/V is recommended for prewarning.
lle
Commissioning 5.6
Please set a
response value
for R(an1) for
Alarm 1.
7/9
7.2.8 Set response value R
an2
You can set the response value for the main alarm here.
A value of 50 Ω/V is recommended for the main alarm.
lle
Commissioning 5.6
Please set a
response value
for R(an2) for
Alarm 2.
8/9
34
51.
Current 6.6.9
o 1mA
o 1.8mA
o 2.5mA
o 5mA
• 10mA
for alarm 1
Alarm 1 5.6.8
40 kΩ
Min. 1 kΩ
Max. 10MΩ
for alarm 2
Alarm 2 5.6.9
10 kΩ
Min. 1 kΩ
Max. 10MΩ
Commissioning

7.3 Recommissioning

If the device has already been put into operation once, the self test will be carried out
shortly after connecting the supply voltage. The commissioning wizard will not restart.
You can restart the commissioning wizard using the following menu path:
Menu/Device settings/Commissioning
This menu can be used to modify settings made previously.
Observe device status!
Once initial commissioning has been completed and the initial measure-
ment has been taken, the device changes from the alarm state to normal
state by adhering to the set response values.
