im Vertrieb von
COMMAND
Horizontal Shift
Shift right
Shift left
Vertical Shift
Shift down
Shift up
Horizontal Size
Increase size
Decrease size
Vertical Size
Increase size
Decrease size
Zoom
Zoom in
Zoom out
Horizontal Filter (Detail)
Specific value
Increment up
Increment down
Vertical Filter (Detail)
Specific value
Increment up
Increment down
Scaler Rate
Set scaler rate
Freeze
Enable
Disable
Executive Mode
Enable
Disable
www.camboard.de
CAMBOARD Electronics

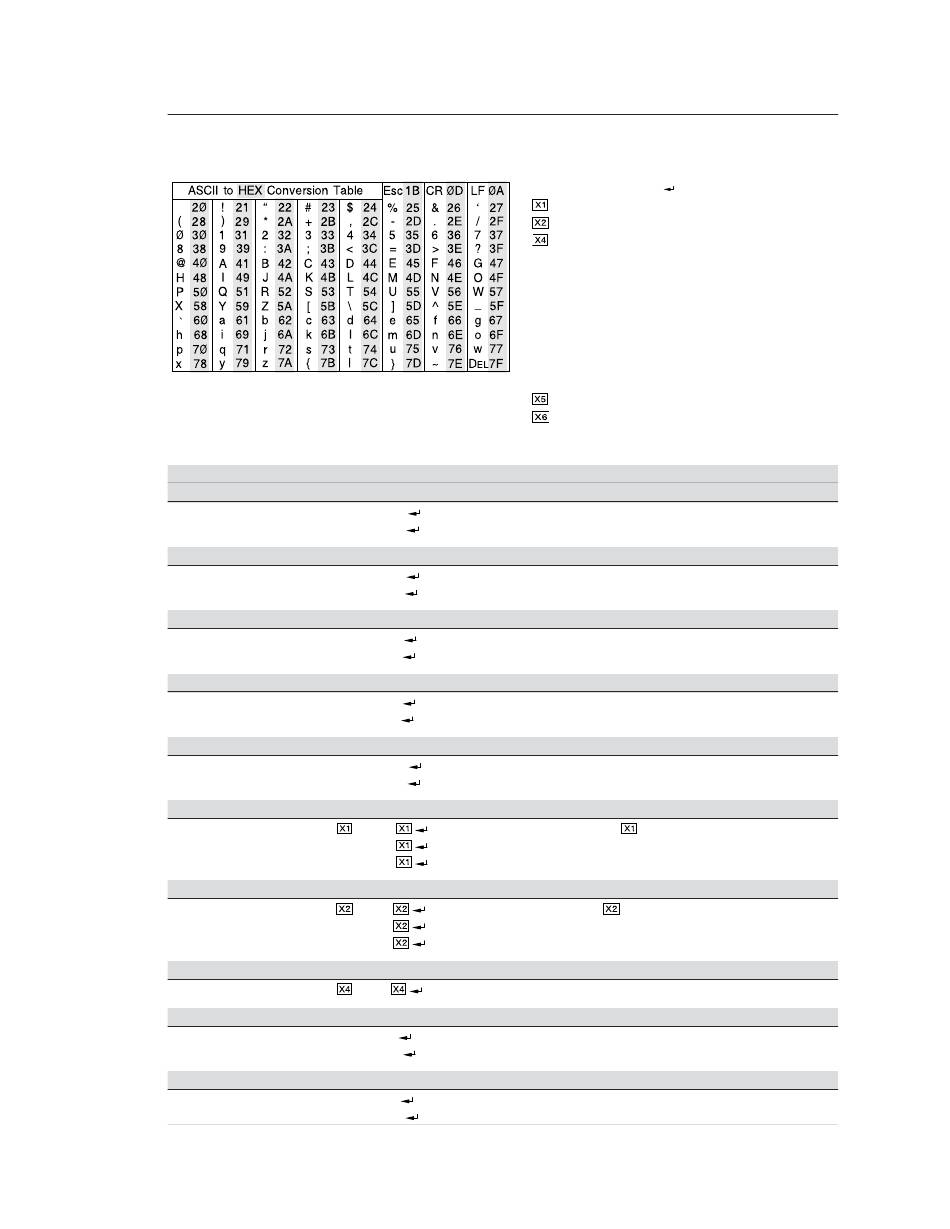

Command/response table
ASCII RESPONSE
DESCRIPTION
{H
Hph+
Shift image right one step
}H
Hph–
Shift image left one step
{/
Vph+
Shift image down one step
}/
Vph–
Shift image up one step
{:
Hsz+
Increase horizontal size by one step
}:
Hsz–
Decrease horizontal size by one step
{;
Vsz+
Increase vertical size by one step
};
Vsz–
Decrease vertical size by one step
{+
Zom+
Increase image size by one step
}+
Zom–
Decrease image size by one step
D Dhz
Select horizontal filter
{D
Dhz
Select next higher horizontal filter (Dhz + 1)
}D
Dhz
Select next lower horizontal filter (Dhz – 1)
d Dvt
Select vertical filter
{d
Dvt
Select next higher vertical filter (Dvt + 1)
}d
Dvt
Select next lower vertical filter (Dvt – 1)
= Rte
Set video scaled output resolution
F
Frz1
Set freeze mode to on (freeze current displayed image)
f
FrzØ
Set freeze mode to off
X
Exe1
Set executive mode to on
x
ExeØ
Set executive mode to off
Tel. 07131 911201
Fax 07131 911203
Symbol definitions:
= CR/LF, • = space
= Horizontal filtering level, 1-4
= Vertical filtering level, 0-9
= Scaled output resolution = 3 = 640x480
= 1 = on, 0 = off
= xxx.xx
Hrt = Horizontal rate = kHz,
Vrt = Vertical rate = Hz
(Dhz)
(Dvt)
Continued on next page
ce-info@camboard.de
DDS 100 RS-232 Programmer's Guide
4 = 800x600
5 = 832x624
6 = 852x480
7 = 1024x768
8 = 720p
9 = 848x480
10 = 1280x768
11 = 1360x765
4-3
