Summary of Contents for Extron electronics DDS 402

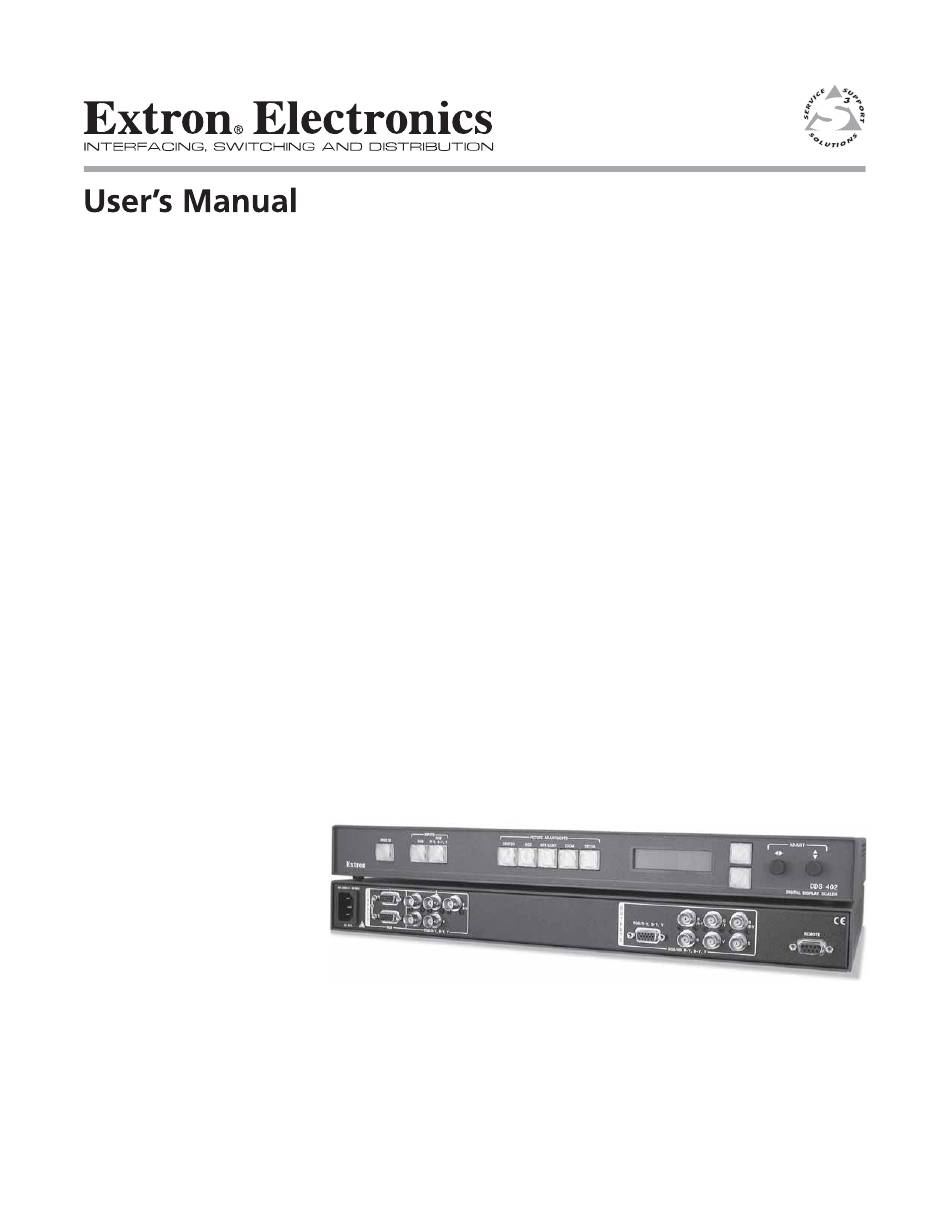

- Page 1 Vertrieb von CAMBOARD Electronics DDS 402 Digital Display Scaler 68-555-01 Rev. D 01 05 www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
- Page 2 im Vertrieb von CAMBOARD Electronics Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important operating and maintenance Power sources • This equipment should be operated only from the power source indicated on the product.
- Page 3 /B-Y /R-Y /B-Y Step 2 Install four rubber feet on the bottom of the DDS 402, or mount the DDS to furniture or in a rack RGBHV video RGBS video (see figure on the bottom of this page). Step 3...
- Page 4 Vertrieb von CAMBOARD Electronics Quick Start — DDS 402, cont’d Typical DDS 402 Application DDS 402 100-240V 50-60Hz /R-Y /B-Y /R-Y /B-Y RGB/R-Y, B-Y, Y RS-232 RGB/R-Y, B-Y, Y RGB/HD R-Y, B-Y, Y 2A MAX RS-232 Plasma Display Control...
- Page 5 Vertrieb von CAMBOARD Electronics Quick Start — DDS 402, cont’d Output menu Input Configuration MENU Output Resol 1024 x 768 Output Signal Sync Polarity NEXT NEXT NEXT NEXT Configuration Refresh @ 60 H Neg V Neg Scaler output resolutions...
- Page 6 Vertrieb von CAMBOARD Electronics Quick Start — DDS 402, cont’d Advanced Configuration menu Smooth edges Set top and bottom blanking Output Edge Smoothing Top Blanking Bot < > • On (default) • 0 to 237, top and bottom Configuration •...
-
Page 7: Table Of Contents
im Vertrieb von CAMBOARD Electronics Table of Contents Chapter 1 • Introduction ....................... 1-1 About this Manual ......................1-2 About the Scaler ........................1-2 Features ........................... 1-3 Chapter 2 • Installation ......................2-1 Installation Overview ....................... 2-2 Mounting the Scaler ...................... - Page 8 im Vertrieb von CAMBOARD Electronics Table of Contents, cont’d Advanced Configuration menu ..................3-9 Edge Smoothing submenu .................. 3-9 Blue Mode submenu ................... 3-9 ..................3-9 Test Pattern submenu Blanking submenu ....................3-9 .................... 3-9 RGB Delay submenu ....................3-10 Reset submenu ........................
- Page 9 im Vertrieb von CAMBOARD Electronics Appendix A • Reference Information ................A-1 Specifications ........................A-2 Part Numbers ........................A-3 Included parts ........................A-3 Suggested part ........................A-3 Firmware Upgrade Installation ................... A-4 Button Labels ........................A-6 Installing labels in the scaler’s buttons ................A-6 www.camboard.de Tel.
- Page 10 im Vertrieb von CAMBOARD Electronics Table of Contents, cont’d 68-555-01 Rev. D All trademarks mentioned in this manual are the properties of their respective owners. 01 05 www.camboard.de Tel. 07131 911201 ce-info@camboard.de Digital Display Scaler • Table of Contents Fax 07131 911203...
-
Page 11: Chapter 1 • Introduction
im Vertrieb von CAMBOARD Electronics Digital Display Scaler Chapter One Introduction About this Manual About the Scaler Features www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 12: About This Manual
(Input 2). Input 1 is buffered, looped through, and output on a 15HD connector for use by a local monitor. The DDS 402 scales the selected input up or down to any 1 of 41 output resolutions and rates and outputs the video as both RGBHV or RGBS video and HD component video, on five BNCs and a 15HD connector. -
Page 13: Features
With the included mounting brackets, the scaler can be rack mounted, or mounted under a desk or table, or against a wall or the side of a desk. The DDS 402 has an internal 100VAC to 240VAC, 50/60 Hz, 30 watts auto-switchable power supply that provides worldwide power compatibility. - Page 14 The time delay between the RGB and sync signals is user adjustable up to five seconds on the front panel and under RS-232 control. Horizontal and vertical detail — The DDS 402 offers four levels of horizontal detail and eight levels of vertical detail. Horizontal and vertical detail minimize the loss of picture fidelity.
- Page 15 Freeze mode — Locks the output display to the selected image. Once an input is frozen, the input can be removed without losing the output image. This feature lets the DDS 402 function as a still store. Auto memories — The two inputs support 32 auto-recall memories each, based on the incoming frequency.
- Page 16 im Vertrieb von CAMBOARD Electronics Introduction, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de Digital Display Scaler • Introduction Fax 07131 911203...
-
Page 17: Chapter 2 • Installation
im Vertrieb von CAMBOARD Electronics Digital Display Scaler Chapter Two Installation Installation Overview Mounting the Scaler Cabling and Rear Panel Views Configuration www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 18: Installation Overview
Installation Installation, cont’d Installation Overview To install and set up a DDS 402 Digital Display Scaler for operation, perform the following steps: Disconnect power from all of the equipment, including the video source(s), and the devices that will receive the scaled video signal. -
Page 19: Video Input Connections
REMOTE RGB/R-Y, B-Y, Y RGB/HD R-Y, B-Y, Y 2A MAX Figure 2-2 — DDS 402 rear panel connectors Video input connections Input 1 (computer video) input (top) connector — Connect computer or RGB video to this female 15HD connector. Input 1 (computer video) loop-through (bottom) connector —... -
Page 20: Rs-232 Connection
LCD displays the product name and then cycles through the default messages. Configuration DDS 402 can be configured using either the front panel controls, the SIS, or the Windows Control program. See chapter 3, Operation, chapter 4, Programmer’s Guide, and chapter 5, Scaler Software for more information. -
Page 21: Chapter 3 • Operation
im Vertrieb von CAMBOARD Electronics Digital Display Scaler Chapter Three Operation Front Panel Controls and Indicators Front Panel Operations Optimizing the Video www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 22: Front Panel Controls And Indicators
BRT/CONT ZOOM DETAIL MENU R-Y, B-Y, Y NEXT DDS 402 DIGITAL DISPLAY SCALER 10 11 Figure 3-1 — Front panel, digital display scaler Freeze button Freeze button — The Freeze button locks the output display to the current image being input. When the freeze function is enabled, the button is lit. To unfreeze the image, press the Freeze button again. -
Page 23: Picture Adjustment Buttons
Menu button — The Menu button enters and moves through the main menu system in the DDS 402. See Front Panel Operations in this chapter for details. Next button — The Next button steps through the submenus in the DDS 402 menu system. -
Page 24: Button Icons
Input and output labels can be created easily with Extron’s Button Label Generator software, which ships with every Extron DDS 402. Each input and output can be labeled with names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection (figure 3-2). -
Page 25: Configuration
LCD display cycle. Configuration The DDS 402 can be configured using either the menu system and front panel controls, the SIS, or the Windows Control program. See chapter 4, Programmer’s Guide, and chapter 5, Scaler Software. -
Page 26: Input #2 Submenu
Input Configuration main menu or the Input #2 submenu to the Output Configuration main menu. To return to the default screens, let the DDS 402 remain idle for 10 seconds until the selected screen times out, or press the Menu button until the Exit Menu appears, then press the Next button. -
Page 27: Resolution And Refresh Rates Submenu
It exactly matches the output rate of the DDS 402’s scaler to the frame rate of the selected input. Select this feature if you will be using motion video sources with a display that is capable of a variety of refresh rates. -
Page 28: Memory Presets Menu
Presets, saved values of the current centering and sizing settings, are saved in non- volatile memory; when the DDS 402 is powered down and later powered back up, the settings are available for selection. Saving the settings to a preset overwrites the settings previously written to that preset. -
Page 29: Advanced Configuration Menu
The RGB Delay submenu displays and sets the RGB delay. With RGB delay, the DDS 402 switches to the new sync signal before switching RGB (video) signals. This allows a brief delay for the displays to adjust to the new sync timing before displaying the new picture, which will appear without glitches. -
Page 30: Reset Submenu
CAMBOARD Electronics Operation, cont’d Reset submenu The Reset submenu resets the DDS 402 to the default values. Reset the scaler by pressing and holding the Freeze button while this submenu is Unit Reset to active. The LCD displays Unit Reset to Factory Defaults when the Factory Defaults reset is complete. -
Page 31: Front Panel Security Lockout (Executive Mode)
• Detail: Horizontal (Horz) adjusts from 0 to 7. Vertical (Vert) adjusts from 0 to 7. The DDS 402 picture adjustment functions time-out after 10 seconds; the adjustments are activated and saved and the LCD returns to the default display cycle. -
Page 32: Optimizing The Video
im Vertrieb von CAMBOARD Electronics Operation, cont’d Optimizing the Video Perform the following steps, in sequence, after you have installed the DDS. This procedure will help you to configure the scaler for the best settings for your display environment. In a multi-screen environment, perform this procedure for each display. -
Page 33: Chapter 4 • Programmer's Guide
im Vertrieb von CAMBOARD Electronics Digital Display Scaler Chapter Four Programmer’s Guide Symbols Scaler-Initiated Messages Host-to-Scaler Instructions Scaler Error Responses Using the Command/Response Table Command/Response Table for SIS Commands Command/Response Table for Special Function SIS Commands www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 34: Symbols
im Vertrieb von CAMBOARD Electronics Programmer’s Guide The scaler’s rear panel Remote 9-pin D female connector (figure 4-1) can be connected to the RS-232 serial port output of a host device such as a computer running the HyperTerminal utility or a control system. This connection makes software control of the scaler possible. -
Page 35: Scaler-Initiated Messages
The reconfig message is initiated by the scaler when a front panel operation has occurred or a memory preset has been recalled. Power-up (c) Copyright 2002, Extron Electronics, DDS 402 Vx.xx The copyright message is initiated by the scaler when it is first powered on. Vx.xx is the firmware version number. -
Page 36: Rgb Delay
im Vertrieb von CAMBOARD Electronics Programmer’s Guide, cont’d A front panel vertical size adjustment has occurred. A front panel color brightness adjustment has occurred. is the brightness variable. A front panel contrast adjustment has occurred. is the contrast variable. A front panel zoom adjustment has occurred. A front panel horizontal detail filter adjustment has occurred. -
Page 37: Host-To-Scaler Instructions
im Vertrieb von CAMBOARD Electronics Host-to-Scaler Instructions The scaler accepts SIS (Simple Instruction Set) commands through the Remote port. SIS commands consist of one or more characters per command field. They do not require any special characters to begin or end the command character sequence. -
Page 38: Command/Response Table For Sis Commands
im Vertrieb von CAMBOARD Electronics Programmer’s Guide, cont’d Command/response table for SIS commands Command ASCII Command Response Additional description (host to scaler) (scaler to host) Input selection Select video input In• Select video input Example: In•2All Select video input 2. Select video input &... - Page 39 im Vertrieb von CAMBOARD Electronics Command/response table for SIS commands (cont’d) Command ASCII Command Response Additional description (host to scaler) (scaler to host) Horizontal detail filter Set a specific filter value Set the horizontal detail level. Increment Increase the horizontal detail. Decrement –D Decrease the horizontal detail.
- Page 40 Firmware version, part number & information requests Query firmware version number Q x.xx Show the controller firmware version. Request part number 60-426-01 Show the DDS 402’s part #. Request general information (See below) Show the DDS 402’s status. •Hrt •Vrt •Std •Prennn...
-
Page 41: Command/Response Table For Special Function Sis Commands
im Vertrieb von CAMBOARD Electronics Command/response table for special function SIS commands The syntax for setting a special function is # where is the function number (such as 3 for the “set RGB delay” command in the first example below), is the value or variable (such as 35 in the first example below), and # is the execute command. - Page 42 im Vertrieb von CAMBOARD Electronics Programmer’s Guide, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de 4-10 Digital Display Scaler • Programmer’s Guide Fax 07131 911203...
-
Page 43: Chapter 5 • Scaler Software
im Vertrieb von CAMBOARD Electronics Digital Display Scaler Chapter Five Scaler Software Control Software for Windows Button-Label Generator www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 44: Control Software For Windows
Pgm icon in the Extron Electronics group or folder. The Comm menu appears on the screen. Click on the comm port that is connected to the DDS 402’s Remote port. The Extron USPDDS Control Program window (figure 5-1) appears. Figure 5-1 — Windows Control program window www.camboard.de... -
Page 45: Using The Help Program
For information on program features, press the F1 computer key, or click on the Help menu from within the USPDDS Control Program, or double-click on the USPDDS Help icon in the Extron Electronics group or folder. For explanations of buttons or functions, click on the tabs in the help screen to reach the desired screen. -
Page 46: Button-Label Generator
Scaler Software, cont’d Button Label Generator You may wish to customize the labeling of the DDS 402’s front panel buttons. Blank templates for the DDS 402’s button label windows are included in appendix A of this manual. However, you can easily create, customize, and print labels for the scaler’s button label windows by using the Button-Label Generator software. -
Page 47: Appendix A • Reference Information
im Vertrieb von CAMBOARD Electronics Digital Display Scaler A ppendix A Reference Information Specifications Part Numbers Firmware Upgrade Installation Button Labels www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203... -
Page 48: Specifications
im Vertrieb von CAMBOARD Electronics Reference Information Specifications Video input Number/signal type ....1 RGBHV, RGBS, RGsB 1 RGBHV, RGBS, RGsB, component video Connectors ........(1) 15-pin HD female 5 BNC female Nominal level ....... 1 Vp-p for Y of component video 0.7 Vp-p for RGBfor R-Y and B-Y of component video Minimum/maximum levels .. -
Page 49: Part Numbers
Warranty ........3 years parts and labor All nominal levels are at ±10%. Specifications are subject to change without notice. Part Numbers Included parts These items are included in each order for a DDS 402: Included parts Part number DDS 402 60-426-01... -
Page 50: Firmware Upgrade Installation
Some DDS 402 firmware updates must be performed at the Extron factory. Replace firmware in the DDS 402 as follows: Disconnect the AC power cord from the DDS 402 to remove power from the unit. To prevent electric shock, always unplug the DDS 402 from the AC power source before opening the enclosure. - Page 51 Pin 1 mark Socket Figure A-3 — Key and pin 1 mark Replace the top cover on the DDS 402, and fasten it with the screws that were removed in step 3. Rack/furniture mount the scaler, and reconnect the AC power cord.
-
Page 52: Button Labels
im Vertrieb von CAMBOARD Electronics Reference Information, cont’d Button Labels Figure A-4 provides blank button labels. If desired, photocopy them or cut them out of the manual, write button information in each button area as desired, and put them in the scaler’s input buttons’ windows. Installing labels in the scaler’s buttons Install new labels in the scaler’s front panel input buttons as follows:... - Page 53 Extron’s Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period...
- Page 54 PM Industrial Building 16 Ichibancho The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2005 Extron Electronics. All rights reserved. Fax 07131 911203...
