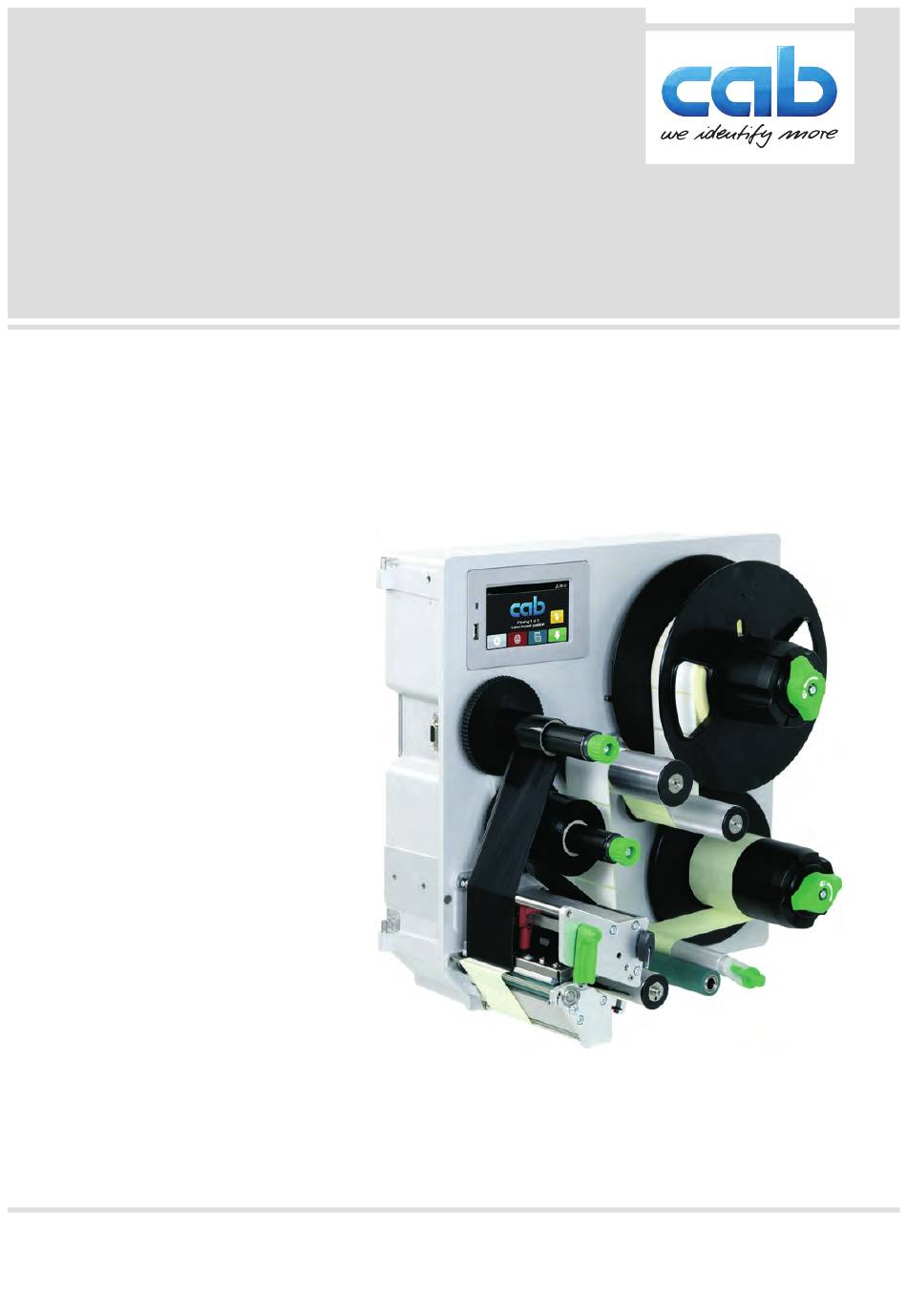

- Page 1 Service Manual Label Printer HERMES Q MADE IN GERMANY...
- Page 2 Edition: 12/2019 - Part No. 9003469 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Instructions ............................... 4 General Safety Instructions ........................4 Protective Devices ........................... 5 Handling Electricity ..........................5 Procedure in Case of Accidents ......................5 Environment ............................. 5 Tools ................................ 6 Maintenance ............................7 Cleaning by the Operator ......................... 7 Cleaning the Label Sensor ........................ -
Page 4: Introduction
Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous voltages. Danger! Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury. Warning! Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury. -
Page 5: Protective Devices
Introduction Protective Devices Warning! There is a risk of injury if protective devices are missing or defective. Replace all protective devices (covers, safety notices, grounding cables etc) after maintenance work has been completed. Replace parts that have become defective or unusable. Wear protective goggles for: •... -
Page 6: Tools
Test collar for transfer ribbon winder (cab Part-No. 5540932) • Distance caliber 0,1 mm (cab Part-No. 5961064) • Gauge for brake adjustment at the label unwinder HERMES Qx/xxx-2 (cab Part-No. 5961092) • Gauge for brake adjustment at the label unwinder HERMES Qx/xxx-3 (cab Part-No. 5961694) Standard tools: •... -
Page 7: Maintenance
Maintenance Cleaning by the Operator The following cleaning work is described in the Assembly Instructions. • Cleaning the device • Cleaning the printhead • Cleaning the print roller Cleaning the Label Sensor Note! At HERMES Q2, HERMES Q4 and HERMES Q4.3 the label sensor can be cleaned with rear cover closed. At HERMES Q6.3 the label sensor cable must be unplugged. -
Page 8: Replacing Assembly Units
Replacing Assembly Units Replacing the Printhead The printhead of the label printer can be replaced without the need for fine adjustment. The printhead must be replaced if worn or when switching to a printhead with higher or lower resolution. 1 Data connector 2 Power connector 3 Threaded holes 4 Catching holes... - Page 9 Replacing Assembly Units Figure 3 Replacing the printhead Dismounting the Printhead 1. Remove the media from the printer. 2. Lock the printhead. 3. Loosen two screws (6). 4. Open the printhead locking and if necessary remove the printhead from the pins (9). 5.
-
Page 10: Replacing The Print Roller And The Transport Roller
Replacing Assembly Units Replacing the Print Roller and the Transport Roller Figure 4 Replacing print roller and transport roller Replacing the print roller 1. Turn lever (4) counterclockwise to lift the printhead assembly. 2. Loosen screw (6). 3. Remove ball bearing (5) and print roller (2) through the plate (3). 4. -
Page 11: Replacing The Slipping Clutches
Replacing Assembly Units Replacing the Slipping Clutches The rewinder for the transfer ribbon and the internal rewinder are coupled with slipping clutches to the main drive. The supply hub of the transfer ribbon is braked with a slipping clutch during printing. Replace a slipping clutch when the set value of the torque cannot be set ... - Page 12 Replacing Assembly Units Replacing the Slipping Clutches at the Rewinders 1 Collar the belt gear 2 Winder axle 3 Coupling disks 4 Slipping clutch 5 Snap ring Figure 6 Slipping clutches at the rewinders 1. Unplug the printer from the electrical outlet. 2.
-
Page 13: Replacing The Label Sensor
Replacing Assembly Units Replacing the Label Sensor Note! Soiling of the label sensor can also cause malfunctions. Before replacing the label sensor, check whether it is soiled and clean it if necessary 3.2 on page 7. Danger! Risk of death via electric shock! ... -
Page 14: Replacing The Pcb Cpu
Replacing Assembly Units Replacing the PCB CPU Danger! Risk of death via electric shock! Before opening the housing cover, disconnect the device from the mains supply and wait at least one minute until the power supply unit has discharged. 1 4 screws 2 PCB CPU Connectors... -
Page 15: Replacing The Power Supply Unit
Replacing Assembly Units Replacing the Power Supply Unit Danger! Risk of death via electric shock! Before opening the housing cover, disconnect the device from the mains supply and wait at least one minute until the power supply unit has discharged. Figure 10 Replacing the power supply unit 1. -
Page 16: Adjustments
Adjustments Measuring and Adjusting the Winding Torques The rewinder for the transfer ribbon and the internal rewinder are coupled with slipping clutches to the rewinder drive. The unwinder of the transfer ribbon is braked with slipping clutches during printing. The correct setting of the torques of these slipping clutches is necessary for: •... - Page 17 Adjustments The set values for the winding torque and the resulting pulling force at the test collar are: Winder Measurement Direction of rotation Winding torque M Pulling force F Ribbon rewinder against winding direction Hermes Q2 10,2 - 10,8 Ncm 3,4 - 3,6 N Hermes Q4/Q4.3/Q6.3 12,9 - 14,4 Ncm...
- Page 18 Adjustments Internal Rewinder Measurement of the winding torque at the internal rewinder occurs by determining the pulling forces with a cord wrapped around the rewinder. The physical relation between the torque and the pulling force is: F= M / r Pulling force [N], Winding torque [Ncm], Radius of the rewinder (3,8 cm)
-
Page 19: Adjusting The Winding Torques
Adjustments 5.1.2 Adjusting the Winding Torques The winding torque of a winder can be changed at the knurled ring of the respective slipping clutch. The numbers on the knurled ring stand for the value of the winding torque: • 1: Lowest winding torque •... -
Page 20: Adjusting The Brake At The Label Unwinder
Adjustments Adjusting the Brake at the Label Unwinder The brake (9) at the label unwinder is switched on and off by the movement of the swing arm (1). The correct adjustment of the switching point guarantees an accurate label transport and a high positioning accuracy of the peeled labels. -
Page 21: Adjusting The Label Feed Path
Adjustments Adjusting the Label Feed Path The inner edge of the label liner must softly touch the paper guiding edges (1) of the chassis during the transport. The direction of the material (2) run can be adjusted by the eccentric on the deflection roller (3). Figure 16 Adjusting the label feed path 1. -
Page 22: Adjusting The Printing Mechanism
Adjustments Adjusting the Printing Mechanism Major adjustment of the printing mechanism beyond format-based settings is only required if the printhead assembly has been removed or parts in this area have been replaced. Excluded from this is the replacement of the printhead, after which readjustment is generally not required. -
Page 23: Aligning The Printhead To The Print Roller
Adjustments 5.4.2 Aligning the Printhead to the Print Roller In order to achieve the best possible print image the following printhead settings are necessary: • Setting the parallelism of horizontal lines and the edge of the label. • Aligning the heating line to the top of the print roller. This is the position with the highest print image density. HERMES Q without automatic ribbon saver HERMES Q with automatic ribbon saver Figure 18... -
Page 24: Adjusting The Printhead Pressure
Adjustments 5.4.3 Adjusting the Printhead Pressure The printhead pressure can be changed with the screws (1a) and (1b) at the inside and outside of the printhead. Increasing the printhead pressure leads to an improvement of the print image density on the corresponding side and to a shifting of the ribbon feed path to the opposite side. -
Page 25: Adjusting The Distance Of The Printhead From The Paper Guiding Edge
Adjustments 5.4.4 Adjusting the Distance of the Printhead from the Paper Guiding Edge Not at HERMES Q with automatic ribbon saver The purpose of the adjustment is the positioning of the first printing dot 1 mm away from the paper guiding edge. Figure 20 Adjusting the distance of the printhead to the paper guiding edge 1. -
Page 26: Adjusting The Transfer Ribbon Feed Path
Adjustments 5.4.5 Adjusting the Transfer Ribbon Feed Path The transfer ribbon feed path can be affected by the following adjustments: Method Purpose Adjusting the rear ribbon deflection Planing the ribbon between unwinder and print unit Fine-tuning of the printhead pressure Avoiding wrinkles in the print zone arising from the inner or outer side Bowing the printhead Avoiding wrinkles in the print zone arising from the middle Adjusting the front ribbon deflection... -
Page 27: Final Test
Final Test Recheck the setting with the test function Test grid ( Configuration Manual) or a similar print pattern. When using standard cab media, the test printout must show lines with sharp contours and black areas without any parts missing. -
Page 28: Adjusting The Tension At The Rewinder Belt And The Transport Roller Belt
Adjustments Adjusting the Tension at the Rewinder Belt and the Transport Roller Belt Danger! Risk of death via electric shock! Before opening the housing cover, disconnect the device from the mains supply and wait at least one minute until the power supply unit has discharged. Figure 23 Adjusting the tension at the rewinder belt and the transport roller belt 1. -
Page 29: Adjusting The Automatic Ribbon Saver
Adjustments Adjusting the Automatic Ribbon Saver The ribbon saver reduces the consumption of transfer ribbon by lifting the printhead while feeding blank label areas. The printhead will be lifted by eccentrics and the ribbon unwinder will be blocked by a magnetic clutch. Print phase Saver phase Eccentrics... -
Page 30: Adjusting The Magnetic Clutch
Adjustments 5.6.2 Adjusting the Magnetic Clutch A misaligned magnetic clutch can cause a very high and not adjustable torque at the ribbon supply hub. The distance between chassis of the magnetic clutch (2) and the armature disk (3) must be 0.1 mm . Danger! Risk of death via electric shock! ... -
Page 31: Troubleshooting And Error Treatment
Troubleshooting and Error Treatment Failure of Device Functions Functional error Possible remedy Medium is not transported Check electrical connections between PCB CPU and motor Check drive mechanism Replace the PCB CPU Replace the motor No print image with medium Check plug connections at the printhead transport Examine printhead cable for damage and replace if necessary Check the automatic ribbon saver... -
Page 32: Block Diagram
Block Diagram Figure 26 Block diagram HERMES Q... -
Page 33: Layout Diagram Pcb Cpu
Layout Diagram PCB CPU Measuring points at CON9: #FD1 R117 TOP10 C116 R150 C296 R151 C269 R152 C262 C266 R116 C179 C157 R140 R142 C155 C175 C163 C290 C295 R158 +24V (+24V) C301 C169 C153 Measuring points on the PCB: 25 4 9 8 7 6 5 4 3 2 C222... -
Page 34: Index
Index Automatic ribbon saver adjustment ..29 Test collar .........16 Torque.........16, 18 Transfer ribbon ......26, 29 Belt tension ........28 Transfer ribbon feed path ...22, 26 Block diagram ........32 Transport roller .........10 Brake label unwinder ......20 Brake ribbon unwinder....11, 12 Unwinder ........12, 17 Cleaning ..........7 Voltages, exposed ......5 Environment ........5...
