Summary of Contents for CAB SQUIX SQ 1000

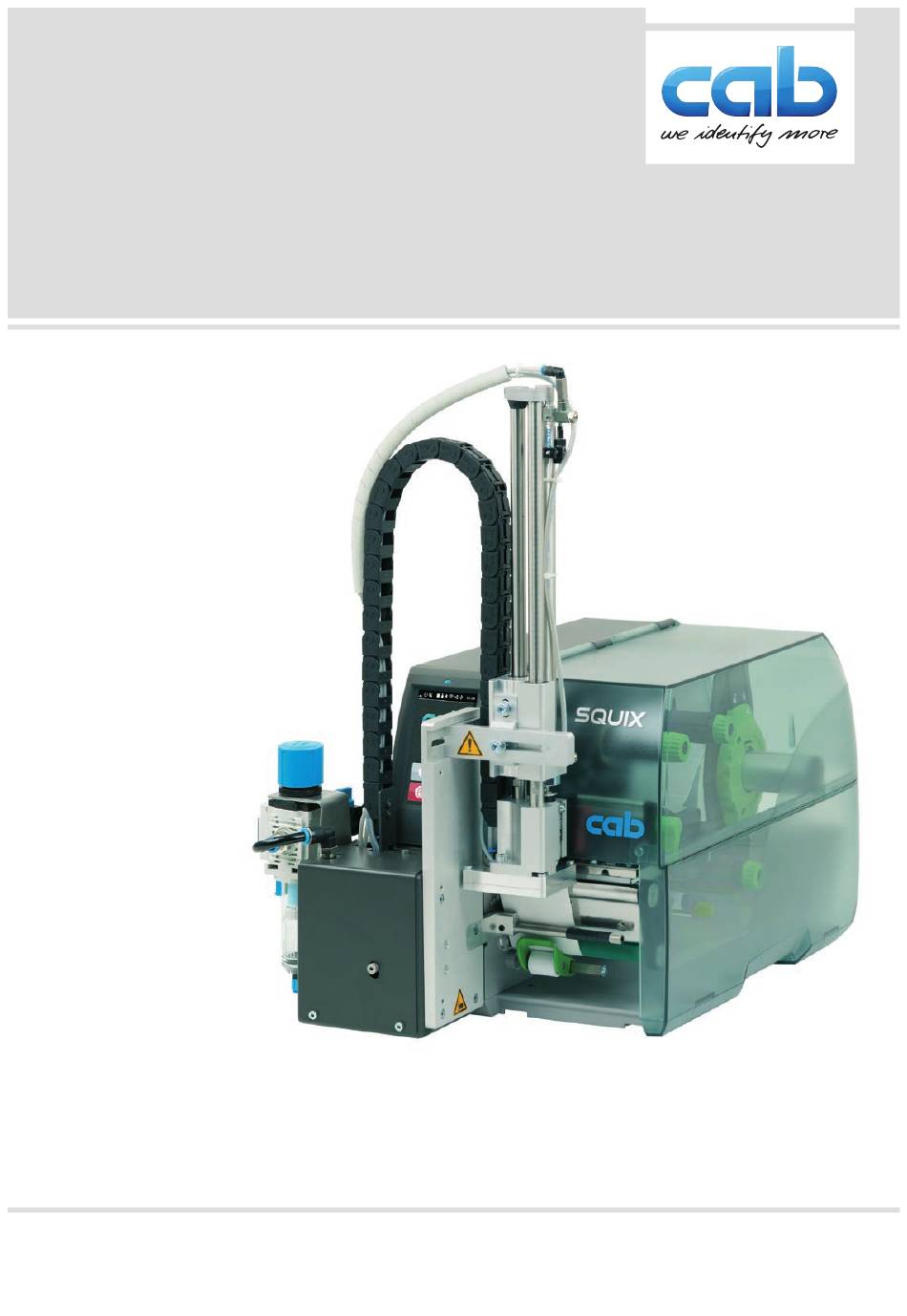

- Page 1 Assembly Instructions Applicator SQ 1000 MADE IN GERMANY...
- Page 2 Edition: 06/2024 Part No. 9003631 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Instructions ............................... 4 Intended use ............................4 Safety Instructions ............................ 4 Safety Markings ............................5 Environment ............................. 5 Product Description ..........................6 Function Description ..........................6 Important Features ........................... 6 Technical Data ............................6 Device Overview ............................ -
Page 4: Introduction
• The applicator is intended exclusively used on a cab printer of the SQUIX ...-P series. Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use;... -
Page 5: Safety Markings
Introduction Before mounting the delivered components disconnect the printer from the power supply and close the shutoff • valve of the applicator. • Only connect the device to other devices which have a protective low voltage. Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting. •... -
Page 6: Product Description
Product Description Function Description The applicator SQ 1000 is an additional module for the label printer of the SQUIX series and is used for the automatic transfer of labels, printed in real-time, onto a product. The transfer of the label to the product can occur via three methods: •... - Page 7 Product Description Tamp-on pads sizes of labels. Pads may be manufactured custom-made as well. Tamp-on pad A1021 universal 70 x 60 universal 90 x 90 custom-made Type SQUIX 2 25 - 63 25 - 63 Label width SQUIX 4 / 4.3 25 - 70 25 - 90 25 - 116...
-
Page 8: Device Overview
Product Description Device Overview 1 Manometer for working pressure 2 Knurled screw for fastening the applicator to the printer 3 Top throttle valve cylinder 4 Stopper for "blow on" mode 5 Cylinder assembly group 6 Pneumatic cylinder 7 bottom throttle valve 8 Tamp retainer 9 Tamp (application specific) 10 Blowpipe for supporting air... -
Page 9: Contents Of Delivery
Product Description Contents of Delivery 1 Applicator with lifting cylinder 2 Cylinder screw 3 Pad (as ordered) 4 Piercing pin (only delivered with universal tamp pads) Documentation Fig. 4 Contents of delivery Note! Please keep the original packaging in case the applicator must be returned. Attention! The device and printing materials will be damaged by moisture and wetness. -
Page 10: Installation
Installation Mounting the Applicator to the Printer Attention! Disconnect the printer from the power supply before mounting the applicator! Ensure the printer is in a stable secure position! Connect the compressed air only after mounting the applicator to the printer! Fig. -
Page 11: Piercing The Foil Of The Universal Tamp Pad
Installation Piercing the Foil of the Universal Tamp Pad The universal tamp pad has holes drilled into it which enable the labels to be sucked and held onto the pad. When the pad is delivered these holes are covered by a sliding foil. A number of these holes need to be pierced with the piercing pin provided. -
Page 12: Operation
Operation Test Mode without a Print Job Fig. 9 Display By alternating between buttons on the display it is possible to simulate the labeling process without an active printing job. Push button This causes the feed of an empty label. Simultaneously the vacuum of the pad as well as the supporting air are activated. -
Page 13: Standard Operation
Operation Standard Operation Before starting the labeling process ensure that all connections are securely established. Load printing and labeling material. Ensure that the locking system is closed. „5.1 Inserting Materials“. Open the compressed air shut-off valve. Attention! ... -
Page 14: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Check the operator's manual of the printer. Error treatment: Clearing the error results. Press the feed key to synchronize the label feed, remove the left over labels manually. ... - Page 15 Error Messages Error Treatment: Clear the error state. In order to clear the error state press continue, repeat or cancel. Continue with the next label in the printing queue. Repeat the print of the label causing the error. Only applicable with error Vac. plate empty. Cancel the current print job.
-
Page 16: Licences
Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards the list of restricted substances Signed for, and on behalf of the Manufacturer Karlsruhe, 20.03.2024 cab Produkttechnik GmbH & Co KG Wilhelm-Schickard-Str. 14 Klaus Bardutzky D-76131 Karlsruhe Managing Director... -
Page 17: Eu Declaration Of Incorporation
Marcel Michalski Am Unterwege 18/20 99610 Sömmerda Signed for, and on behalf of the Manufacturer Karlsruhe, 20.03.2024 cab Produkttechnik GmbH & Co KG Wilhelm-Schickard-Str. 14 Klaus Bardutzky D-76131 Karlsruhe Managing Director The product must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Directive on machinery.
