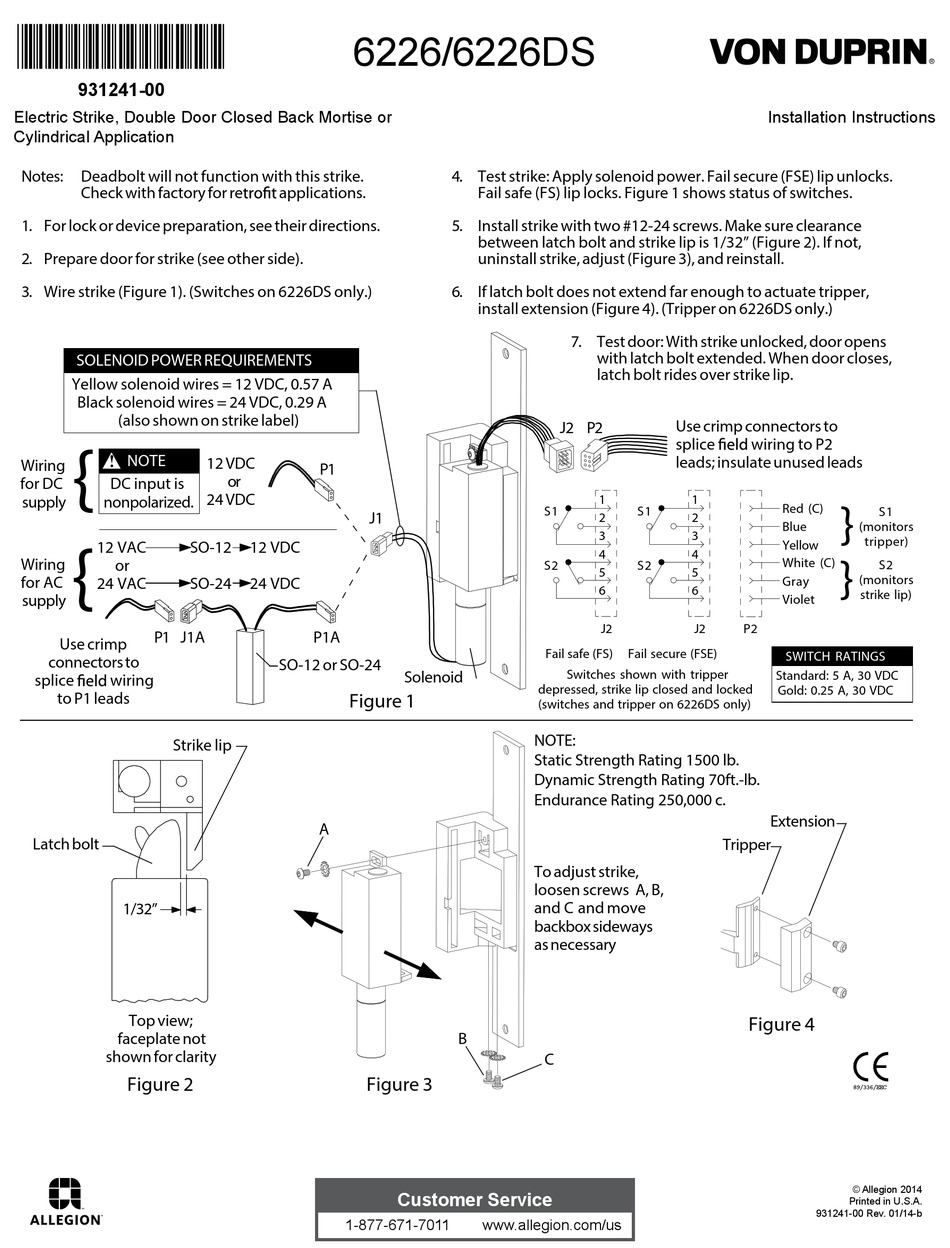

Von Duprin 6226 Installation Instructions

*931241-00*
931241-00

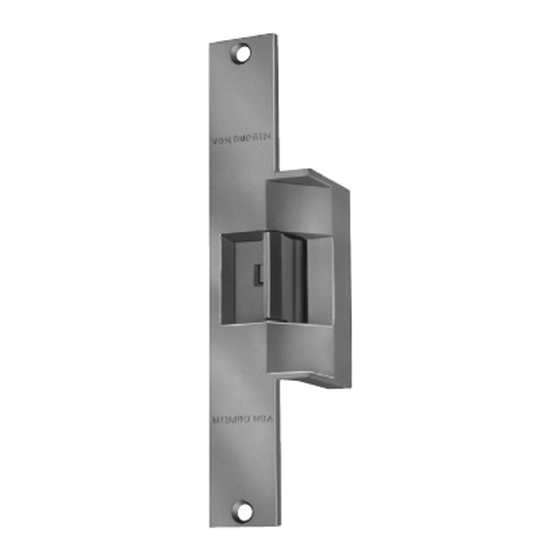

Electric Strike, Double Door Closed Back Mortise or
Cylindrical Application

Notes:

Deadbolt will not function with this strike.
Check with factory for re
1. For lock or device preparation, see their directions.
2. Prepare door for strike (see other side).
3. Wire strike (Figure 1). (Switches on 6226DS only.)

SOLENOID POWER REQUIREMENTS

Yellow solenoid wires = 12 VDC, 0.57 A
Black solenoid wires = 24 VDC, 0.29 A
(also shown on strike label)
{
!
NOTE

Wiring

for DC DC input is
supply nonpolarized.
{
12 VAC SO-12
Wiring
or
for AC
24 VAC SO-24
supply
P1 J1A
Use crimp
connectors to
splice wiring
to P1 leads
Strike lip
Latch bolt
1/32"
Top view;
faceplate not
shown for clarity
Figure 2
6226/6226DS
applications.
12 VDC
P1
or
24 VDC
J1
12 VDC
24 VDC
P1A
SO-12 or SO-24
Figure 1
A
Figure 3
1-877-671-7011
4. Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
5. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32" (Figure 2). If not,
uninstall strike, adjust (Figure 3), and reinstall.
6. If latch bolt does not extend far enough to actuate tripper,
install extension (Figure 4). (Tripper on 6226DS only.)
7. Test door: With strike unlocked, door opens
J2 P2
S1
S2
Fail safe (FS)
Solenoid Switches shown with tripper
depressed, strike lip closed and locked
(switches and tripper on 6226DS only)
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
To adjust strike,
loosen screws A, B,
and C and move
backbox sideways
as necessary
B
C
Customer Service
www.allegion.com/us
Installation Instructions
with latch bolt extended. When door closes,
latch bolt rides over strike lip.
Use crimp connectors to
splice wiring to P2
leads; insulate unused leads
1 1
S1
2 2
3 3
4 4
S2
5 5
6 6
J2 J2 P2
Fail secure (FSE)
Standard: 5 A, 30 VDC
Extension
Tripper
Figure 4
}
Red (C)
S1
Blue (monitors
tripper)
Yellow
}
White (C)
S2
(monitors
Gray
strike lip)
Violet

SWITCH RATINGS

Gold: 0.25 A, 30 VDC
89/336/EEC
© Allegion 2014
Printed in U.S.A.
931241-00 Rev. 01/14-b
