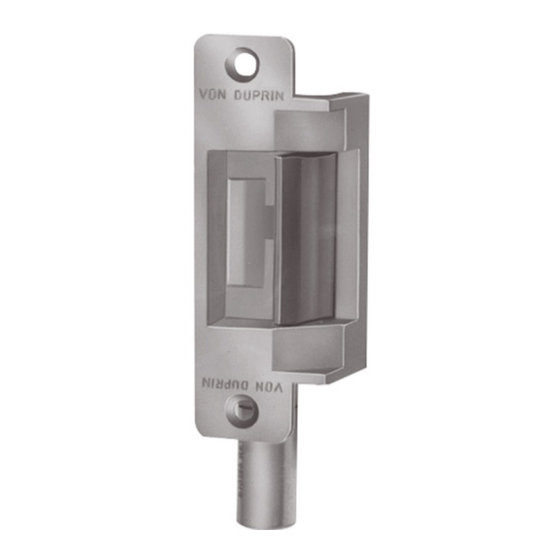

Electric strike, single door aluminum frame mortise or cylindrical application
Hide thumbs Also See for 6211AL:

Advertisement

Quick Links

*931221-00*
931221-00

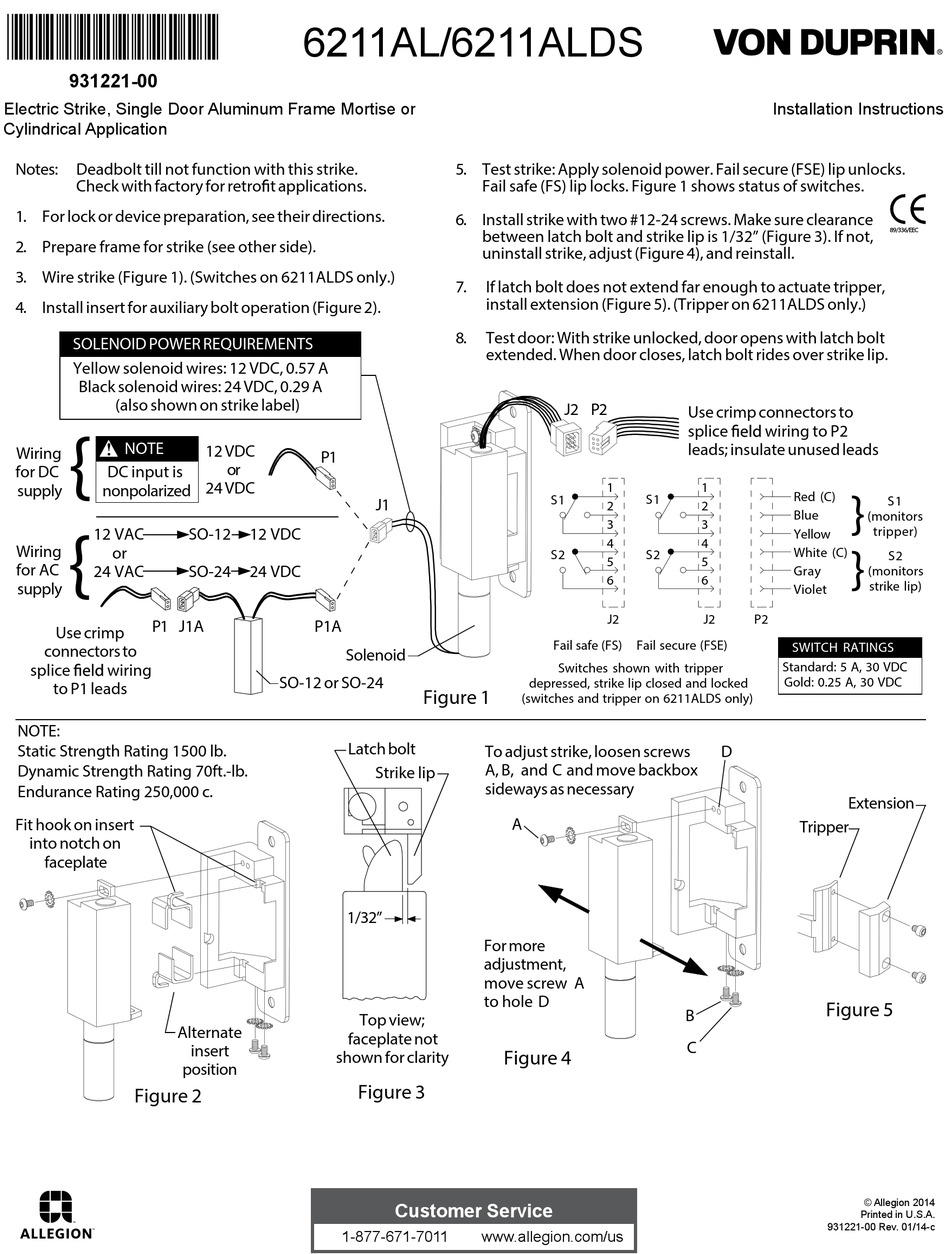

Electric Strike, Single Door Aluminum Frame Mortise or
Cylindrical Application

Notes:

Deadbolt till not function with this strike.
Check with factory for retro t applications.
1. For lock or device preparation, see their directions.
2. Prepare frame for strike (see other side).
3. Wire strike (Figure 1). (Switches on 6211ALDS only.)
4. Install insert for auxiliary bolt operation (Figure 2).

SOLENOID POWER REQUIREMENTS

Yellow solenoid wires: 12 VDC, 0.57 A
Black solenoid wires: 24 VDC, 0.29 A
(also shown on strike label)
{
!
NOTE

Wiring

for DC
DC input is
supply
nonpolarized
{
12 VAC
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice
wiring
to P1 leads
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
Fit hook on insert
into notch on
faceplate
Alternate
position

Figure 2

6211AL/6211ALDS
12 VDC
P1
or
24 VDC
SO-12
12 VDC
SO-24
24 VDC
P1A
Solenoid
SO-12 or SO-24
Latch bolt
1/32"
Top view;
faceplate not
insert
shown for clarity

Figure 3

1-877-671-7011
5. Test strike: Apply solenoid power. Fail secure (FSE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
6. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32" (Figure 3). If not,
uninstall strike, adjust (Figure 4), and reinstall.
7.
If latch bolt does not extend far enough to actuate tripper,
install extension (Figure 5). (Tripper on 6211ALDS only.)
8.
Test door: With strike unlocked, door opens with latch bolt
extended. When door closes, latch bolt rides over strike lip.
S1
J1
S2
Fail safe (FS)
depressed, strike lip closed and locked

Figure 1

(switches and tripper on 6211ALDS only)
To adjust strike, loosen screws
A, B, and C and move backbox
Strike lip
sideways as necessary
A
For more
adjustment,
move screw A
to hole D

Figure 4

Customer Service
www.allegion.com/us
J2 P2
Use crimp connectors to
splice
leads; insulate unused leads
1
1
S1
2
2
3
3
4
4
S2
5
5
6
6
J2
J2
Fail secure (FSE)
Switches shown with tripper
D
B
C
Installation Instructions
89/336/EEC
wiring to P2
}
Red (C)
S1
Blue
(monitors
tripper)
Yellow
}
White (C)
S2
Gray
(monitors
strike lip)
Violet
P2

SWITCH RATINGS

Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
Extension
Tripper

Figure 5

© Allegion 2014
Printed in U.S.A.
931221-00 Rev. 01/14-c
