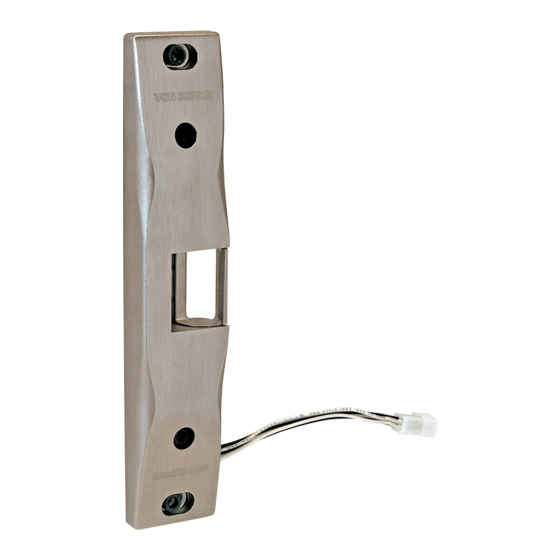

Surface Mounted Rim Strike

Important:

Installations of the RIM strike qualify as "Indoor Use Only" when
not continuously exposed to an outdoor environment. Ensure
the exit device functions as intended for life safety concerns by
verifying electric strike and exit device compatibility. Maximum latch
projection is essential to obtaining full holding force.
When installed in a fail secure manner, the local authority having
jurisdiction shall be consulted with regard to the use of selected
panic hardware to ensure emergency exit from the secured area.

Catalog specifications

Model
Mode
Voltage
6300
Fail Secure
12V
6300
Fail Secure
24V
FSE = Fail Locked / Fail Secure
DC = Direct Current
Continuous Duty = Energized 1 minute or more
UL 294 Performance Ratings:
Access Control Line Security: Level I
Destructive Attack: Level I
Endurance: Level IV
Standby Power: Level I

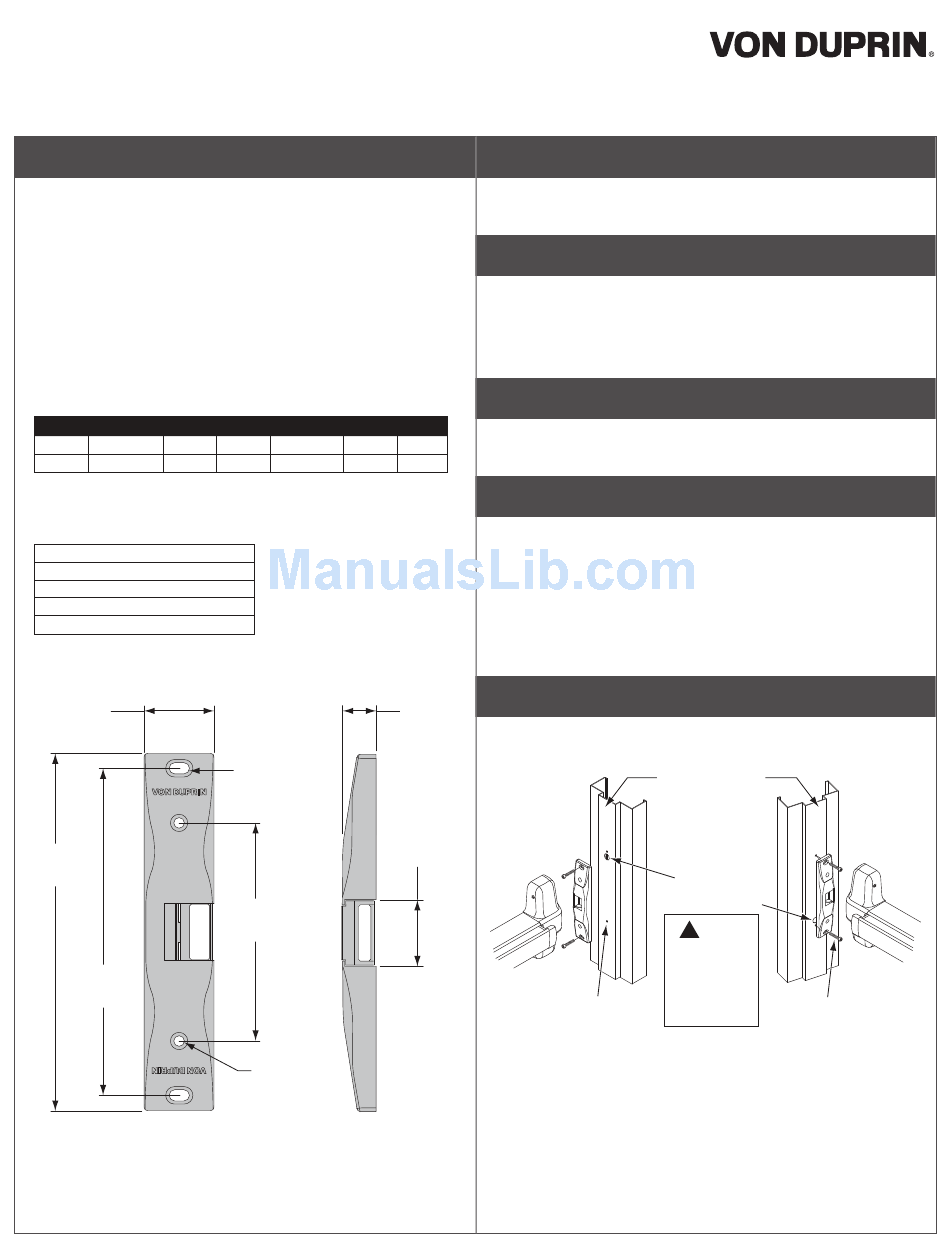

Dimensional Details

1³⁄₄"
(44.5mm)
9"
(228.6mm)
8¹⁄₄"
(209.6mm)
Current
Duty
Amps
DC
Continuous
0.50
DC
Continuous
0.24
³⁄₄"
(19.0mm)
Horizontal
adjustment
mounting holes
(42.0mm)
5¹⁄₂"
(139.7mm)
Lockdown
holes
6300
1
Find center line
Determine the horizontal center line of the exit device latch and
transfer center line to the frame stop.
2
Center-punch mounting holes
Position the paper template onto the frame aligning with center line
and against the closed door. Center-punch the two mounting holes
and the wire access hole as shown.
Drill and tap the two mounting holes and drill the wire access hole.
3
Test fit
Ohms
Test fit electric strike to ensure full latch engagement. Add provided
22
spacer if required.
89
4
Wire connections
Make wire connections from the power source to the appropriate
wire harness supplied. Use the 12V harness for 12VDC. Use the
24V harness only for 24VDC.
L Note: Overheated or burnt coils caused by incorrect
voltage/wire harness combinations will not be covered
under warranty.
5
Mount electric strike
Using the Z\v-20 UNC screws provided, loosely mount the electric
strike using the horizontal mounting holes (outer slots).
1⁵⁄₈"
¹⁄₄-20 UNC
(2 places)
Installation Instructions
Drill and tap
Door Frame Stop
³⁄₄" (19mm)
Wire access hole
!
NOTE:
Wire access
hole location
is relative to
the exit device
Mounting
orientation.
Screw
(2 places)
