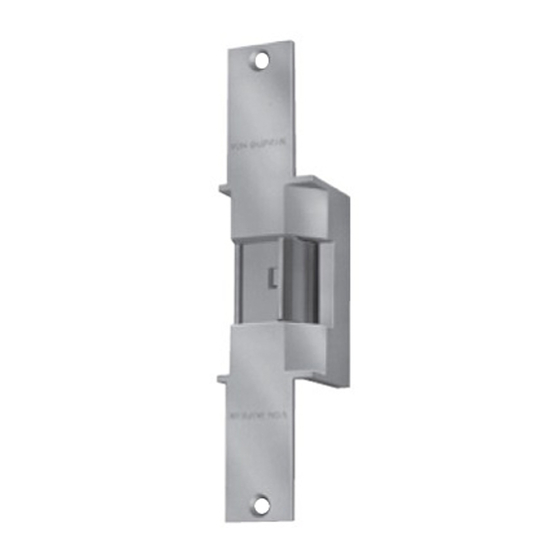

Electric Strike, Double Door Open Back Mortise or Cylindrical
Application
Notes:
Deadbolt will not function with this strike.
Check with factory for
1. For lock or device preparation, see their directions.
2. Prepare door for strike (see other side).

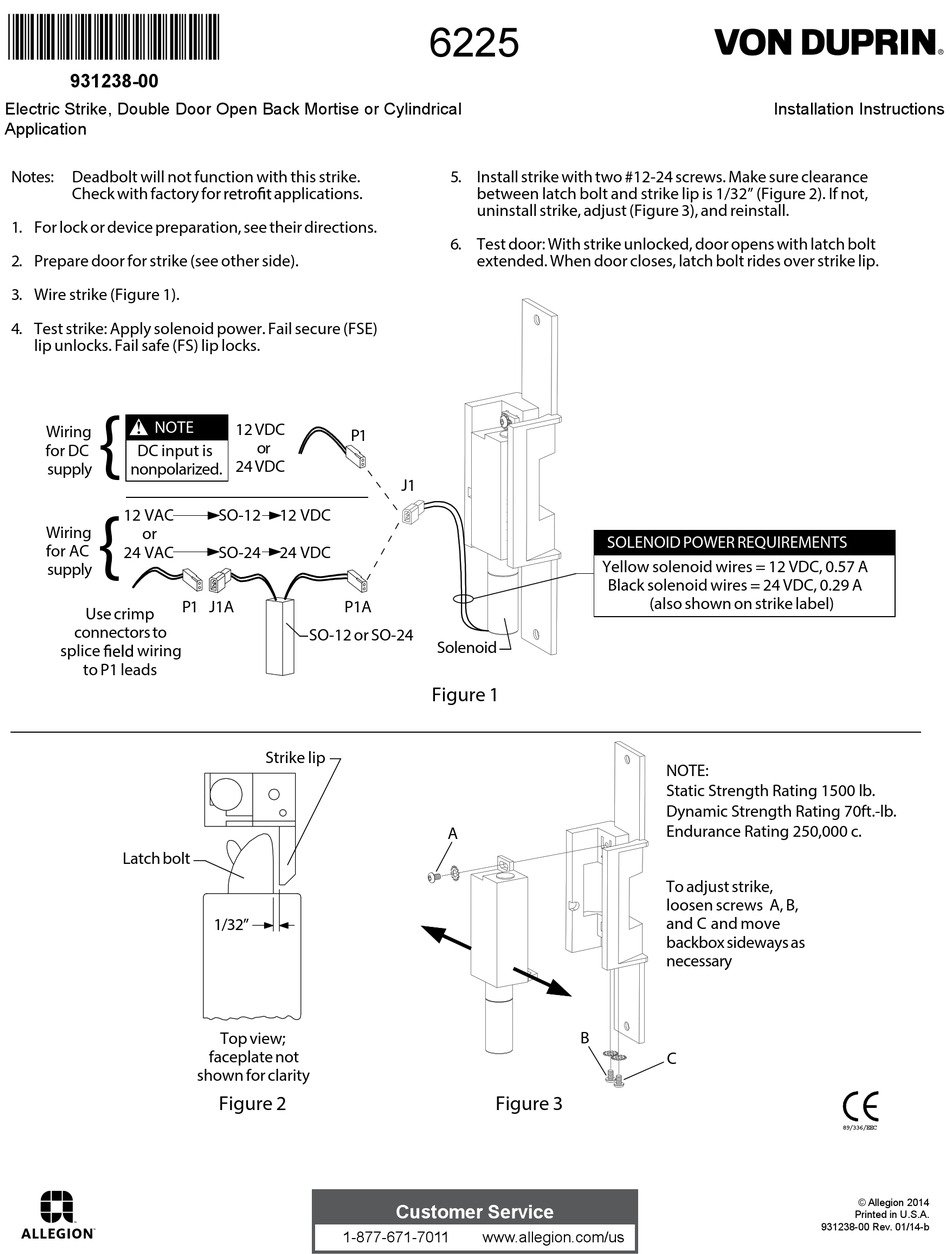

3. Wire strike (Figure 1).
4. Test strike: Apply solenoid power. Fail secure (FSE)
lip unlocks. Fail safe (FS) lip locks.
{
!
NOTE
Wiring
for DC
DC input is
supply
nonpolarized.
{
12 VAC
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice
wiring
to P1 leads
Latch bolt
applications.
12 VDC
P1
or
24 VDC
SO-12
12 VDC
SO-24
24 VDC
P1A
SO-12 or SO-24
Strike lip
1/32"
Top view;
faceplate not
shown for clarity
Figure 2
1-877-671-7011
6225
5. Install strike with two #12-24 screws. Make sure clearance
between latch bolt and strike lip is 1/32" (Figure 2). If not,
uninstall strike, adjust (Figure 3), and reinstall.
6. Test door: With strike unlocked, door opens with latch bolt
extended. When door closes, latch bolt rides over strike lip.
J1
Solenoid
Figure 1
A
Figure 3
Customer Service
www.allegion.com/us
SOLENOID POWER REQUIREMENTS
Yellow solenoid wires = 12 VDC, 0.57 A
Black solenoid wires = 24 VDC, 0.29 A
(also shown on strike label)
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
To adjust strike,
loosen screws A, B,
and C and move
backbox sideways as
necessary
B
C
Installation Instructions
89/336/EEC
© Allegion 2014
Printed in U.S.A.
931238-00 Rev. 01/14-b
