How to extend the alarm number of netra dvr/nvr with alarm box

Advertisement

Menson Qi
How to extend the alarm number of netra DVR/NVR
with DS-1901I alarm box
2014-7-16
Hikvision Digital Technology Co., Ltd.
http://www.hikvision.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-1901I and is the answer not in the manual?

Questions and answers

Summary of Contents for HIKVISION DS-1901I

  • Page 1 Menson Qi How to extend the alarm number of netra DVR/NVR with DS-1901I alarm box 2014-7-16 Hikvision Digital Technology Co., Ltd. http://www.hikvision.com...

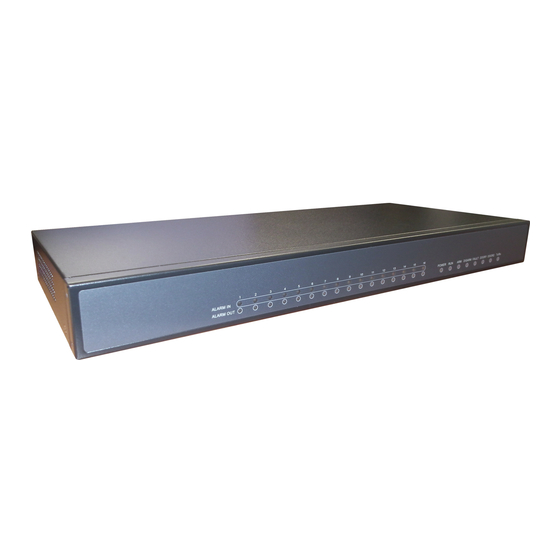

  • Page 2 Menson Qi DVR/NVR Side: Step 1: Upgrade the DVR/NVR with the special firmware and reboot it. Steps 2: Finish RS232 settings as shown below About Alarm Box DS-1901I Front Panel 3 4 5 9 10 Name Function description Alarm Output Alarm output indicator lights when there is alarm output.
  • Page 3 Menson Qi Rear Panel Name Function description Audio RCA interface for audio input input Audio Volume Adjust volume, clockwise to turn up; anticlockwise to turn down. Audio RCA interface for audio output. Max output consumption: 5W. output Connector for RS232 device, it’s used for device maintenance and RS-232 parameter settings.
  • Page 4 Menson Qi Storage Connector for Storage battery battery Ground Ground Power switch Power on/off Alarm input wiring Alarm input is the connectors for external detector. When the resistor between the alarm input is 2.2kΩ, the alarm input won’t be triggered; else, the alarm input is triggered. You can find the 2.2kΩ...
  • Page 5 Go to DVR/NVR local Menu> Configuration> Alarm> Alarm Input/ Output to check the alarm number of the DVR/NVR. If you have any other questions or requests, please contact regional technical support for further assistance. HIKVISION UK Team. EU technical support center:...
