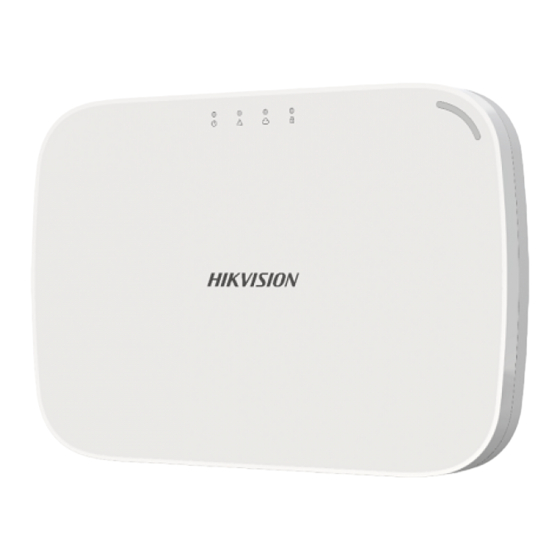

HIKVISION DS-PHA20-P User Manual

Hybrid security control panel
Hide thumbs Also See for DS-PHA20-P:

Advertisement

Quick Links

Download this manual
Hybrid Security Control Panel
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-PHA20-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-PHA20-P

Summary of Contents for HIKVISION DS-PHA20-P

  • Page 1 Hybrid Security Control Panel User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Hybrid Security Control Panel User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
  • Page 4 Hybrid Security Control Panel User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 5 Hybrid Security Control Panel User Manual Contents Chapter 1 System Description ..................... 1 Chapter 2 Specifications ......................2 Chapter 3 Activation ........................5 3.1 Activate Device via Web Browser ..................5 3.2 Activate Device via Client Software ..................6 3.3 Activate via SADP ........................7 Chapter 4 Configuration ......................
  • Page 6 Hybrid Security Control Panel User Manual 4.3.9 Arm/Disarm the Zone ....................73 4.3.10 Bypass Zone ......................74 4.3.11 Set Zone ........................75 4.3.12 Set Arming/Disarming Schedule ................76 4.3.13 Check System Status (Zone Status/Communication Status) ........78 4.3.14 Check Alarm Notification ..................79 4.3.15 Set Network Camera Channel ...................
  • Page 7 Hybrid Security Control Panel User Manual 5.10 Relay Operation ......................... 98 Appendix A. Trouble Shooting ....................99 A.1 Communication Fault ......................99 A.1.1 IP Conflict ........................99 A.1.2 Web Page is Not Accessible ..................99 A.1.3 Hik-Connect is Offline ....................99 A.1.4 Network Camera Drops off Frequently ...............
  • Page 8 Hybrid Security Control Panel User Manual A.6.6 Mail Configuration ....................103 Appendix B. Input Types ......................105 Appendix C. Output Types ...................... 108 Appendix D. Event Types ......................109 Appendix E. Access Levels ....................... 110 Appendix F. SIA and CID Code ....................112 Appendix G.
  • Page 9 Hybrid Security Control Panel User Manual Chapter 1 System Description Hybrid security control panel, containing onboard zones, supports wired/wireless alarm inputs and outputs expanding. It works with Wi-Fi, LAN, GPRS, and 3G/ 4G communication methods, as well as ISAPI, ISUP 5.0, and DC09 protocol. It is applicable to the scenarios of market, store, house, factory, warehouse, office, etc.
  • Page 10 Hybrid Security Control Panel User Manual Chapter 2 Specifications Model DS-PHA20-P DS-PHA20-W2M DS-PHA20-M DS-PHA20-W2P DS-PHA64-M DS-PHA64-W4M DS-PHA64-P2 DS-PHA64-W4P2 Device connection Wireless Detector Up to 16/56 Wireless Output Up to 8 expander Sounder 1 wired sounder (on-board connection) 2 wireless sounders...
  • Page 11 Hybrid Security Control Panel User Manual Model DS-PHA20-P DS-PHA20-W2M DS-PHA20-M DS-PHA20-W2P DS-PHA64-M DS-PHA64-W4M DS-PHA64-P2 DS-PHA64-W4P2 DC09: ARC accessible (CID/SIA) Network Wired network 10M/100M Ethernet Cellular Network Supports report push-​ n otification to ARC & Cloud (with 3G/4G/GPRS module) Wi-Fi Standard 802.11b/g/n...
  • Page 12 Hybrid Security Control Panel User Manual Model DS-PHA20-P DS-PHA20-W2M DS-PHA20-M DS-PHA20-W2P DS-PHA64-M DS-PHA64-W4M DS-PHA64-P2 DS-PHA64-W4P2 Metal Case (&P2&W4P2): 13W, current: 1000mA Sounder Output Power Plastic Case: 5W, current: 400 mA Metal Case (&P2&W4P2): 8W, current: 600 mA RS-485 Device Output Plastic Case: 7.2W, current: 600mA...
  • Page 13 Hybrid Security Control Panel User Manual Chapter 3 Activation In order to protect personal security and privacy and improve the network security level, you should activate the device the first time you connect the device to a network. 3.1 Activate Device via Web Browser Use web browser to activate the device.
  • Page 14 • Get the iVMS-4200 client software from the supplied disk or the official website http:// www.hikvision.com/en/ . Install the software by following the prompts. • The device and the PC that runs the software should be in the same subnet.
  • Page 15 • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.
  • Page 16 Hybrid Security Control Panel User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 17 Hybrid Security Control Panel User Manual Chapter 4 Configuration Configure the security control panel in the web client or the remote configuration page in client software. 4.1 Use the Client Software Steps 1. Download, install and register to the client software. 2.
  • Page 18 Hybrid Security Control Panel User Manual 4.2.1 Communication Settings Wired Network Settings You can set the device IP address and other network parameters. Steps Note Functions varied depending on the model of the device. 1. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in.
  • Page 19 Hybrid Security Control Panel User Manual 4. Optional: Set correct DNS server address if the device needs to visit Hik-Connect server via a domain name. 5. Click Save. Wi-Fi You can set the Wi-Fi parameters if there are secure and credible Wi-Fi networks nearby. Steps 1.
  • Page 20 Hybrid Security Control Panel User Manual Figure 4-3 WLAN Settings Page 5. Set IP Address, Subnet Mask, Gateway Address, and DNS Server Address. Note If enable DHCP, the device will gain the Wi-Fi parameters automatically. 6. Click Save. Cellular Network Set the cellular network parameters if you insert a SIM card inside the device.
  • Page 21 Hybrid Security Control Panel User Manual Figure 4-4 Cellular Data Network Settings Page 3. Enable Wireless Dial. 4. Set the cellular data network parameters. Access Number Input the operator dialing number. User Name Ask the network carrier and input the user name. Access Password Ask the network carrier and input the password.
  • Page 22 Hybrid Security Control Panel User Manual Alarm Center You can set the alarm center's parameters and all alarms will be sent to the configured alarm center. Steps 1. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in.
  • Page 23 Hybrid Security Control Panel User Manual SIA-DCS: The data presenting method of DC-09 is DCS (also called SIA protocol), which is not encrypted and only for uploading alarm report. *SIA-DCS: The data presenting method of DC-09 is DCS (also called SIA protocol), which is encrypted and only for uploading alarm report.
  • Page 24 Hybrid Security Control Panel User Manual Figure 4-6 ADM-CID Note Set the heartbeat interval with the range from 10 to 3888000 seconds. - ISUP You do not need to set the ISUP protocol parameters.
  • Page 25 Hybrid Security Control Panel User Manual Figure 4-7 ISUP - *SIA-DCS You should select the Address Type as IP or Domain Name, and enter the IP/domain name, server address, port number, account code, transmission mode, retry timeout period , attempts, heartbeat interval, encryption arithmetic, password length, secret key and monitoring station ping interval.
  • Page 26 Hybrid Security Control Panel User Manual Figure 4-8 *SIA-DCS Note • Set the heartbeat interval with the range from 10 to 3888000 seconds. • For encryption arithmetic: The panel support encryption format for information security according to DC-09, AES-128, AES-192 and AES-256 are supported when you configure the alarm center.
  • Page 27 Hybrid Security Control Panel User Manual - CSV-IP You should select the Address Type as IP or Domain Name, and enter the IP/domain name, server address, port number, account code, retry timeout period , attempts, monitoring station ping interval and authentication information. Periodic Test After setting the monitoring station ping interval, the device will send a test event to the platform at the intervals.
  • Page 28 Hybrid Security Control Panel User Manual Periodic Test After setting the monitoring station ping interval, the device will send a test event to the platform at the intervals. Figure 4-10 PSTN-CID 7. Click Save. 8. Optional: Enable channel 2 and configure its parameters.
  • Page 29 Hybrid Security Control Panel User Manual Figure 4-11 Channel 2 9. Optional: Enable channel 3 and configure its parameters.
  • Page 30 Hybrid Security Control Panel User Manual Figure 4-12 Channel 3 Notification Push When an alarm is triggered, if you want to send the alarm notification to the client, alarm center, cloud or mobile phone, you can set the notification push parameters. Steps 1.
  • Page 31 Hybrid Security Control Panel User Manual The device will push notifications when tampering alarm of the control is triggered or restored. Panic Alarm Notification The device will push notifications when panic alarm on keypads or keyfobs is triggered or restored by keypads or keyfobs. Medical Alarm Notification The device will push notifications when medical alarm on keypads is triggered.
  • Page 32 Hybrid Security Control Panel User Manual Figure 4-13 Mobile Phone Settings Page 1) Set the Mobile Phone Index and Mobile Phone Number . 2) Check Voice Call on Telephone page. 3) select time of Zoom Alarm and Tampering Alarm Notification Filtering and Number of Calling.
  • Page 33 Hybrid Security Control Panel User Manual Result Note You can arm/disarm/clear alarm via sending SMS. The number of the SIM card installed in the control panel is the receiver number. You can send help to the control panel to get the SMS command list. The control message is Command + Operation Type + Target , and the details are show below.
  • Page 34 Hybrid Security Control Panel User Manual Figure 4-14 Hik-Connect Registration Settings Page 3. Check Register to Hik-Connect. Note By default, the device Hik-Connect service is enabled. You can view the device status in the Hik-Connect server (www.hik-connect.com). 4. Enable Custom Server Address. The server address is already displayed in the Server Address text box.
  • Page 35 Hybrid Security Control Panel User Manual 6. Optional: Change the authentication password. Note • By default, the authentication password is displayed in the text box. • The authentication password should contain 6 to 12 letters or digits. For security reasons, an 8-character password is suggested, which containing two or more of the following character types: uppercases, lowercases, and digits.
  • Page 36 Hybrid Security Control Panel User Manual 6. Enter the port number for the protocol. Note By default, the port number for ISUP is 7660. 7. Set an account, including the Device ID and ISUP Login Password. 8. Select Communication Mode. Wired Network &...
  • Page 37 Hybrid Security Control Panel User Manual Figure 4-16 NAT Settings 3. Drag the slider to enable UPnP. 4. Optional: Select the mapping type as Manual 5. Set the HTTP port and the service port. 6. Click Save to complete the settings Set FTP to Save Video You can configure the FTP server to save alarm video.
  • Page 38 Hybrid Security Control Panel User Manual Figure 4-17 FTP Settings 3. Select FTP Type. 4. Drag the slider to enable FTP. 5. Select address type as Domain Name or IP. 6. Enter the domain name or FTP server. 7. Enter port number, user name and password. 8.
  • Page 39 Hybrid Security Control Panel User Manual Wired Zone Settings Steps 1. Select a wired zone and click to enter the Zone Settings page. Figure 4-18 Wired Zone Settings 2. Edit the zone name. 3. Select a zone type. Instant Zone This Zone type will immediately trigger an alarm event when armed.
  • Page 40 Hybrid Security Control Panel User Manual Note You can set 2 different time durations in Area Management → Schedule & Timer . Follow Zone The zone acts as delayed zone when it detects triggering event during system Entry Delay, while it acts as instant zone otherwise. Perimeter Zone The system will immediately alarm when it detects a triggering event after the system is armed.
  • Page 41 Hybrid Security Control Panel User Manual Key Zone • By Zone Status → Trigger Arming: The linked area will away arm after detectors being triggered, and disarm after being restored. Reports will be upload. • By Zone Status → Trigger Disarming: The linked area will disarm after detectors being triggered, and away arm after being restored.
  • Page 42 Hybrid Security Control Panel User Manual Figure 4-19 Wireless Zone Settings 2. Edit the zone name. 3. Select a zone type. For details, see Wired Zone Settings. 4. Enable Stay Arming Bypass, Silent Alarm and Enroll Wireless Detector according to your needs. 5.
  • Page 43 Hybrid Security Control Panel User Manual What to do next Click Zone → Zone Module , you can see the zone module information including module status, module addresss, module channel No., and module type. Sounder The sounder is enrolled to the control panel via the wireless receiver module, and the 868 Mhz wireless sounder can be enrolled to the hybrid control panel via the wireless receiver that is at the address of 9.
  • Page 44 Hybrid Security Control Panel User Manual 7. Set the Wireless Supervision Time, and the system determines connection fault if the disconnected duration of the device is longer than the configured value. 8. Click OK. Note After the sounder is configured, you can click Device Status → Sounder to view the sounder status.
  • Page 45 Hybrid Security Control Panel User Manual When the area arm/disarm, the relay will be opened. When the area arm/disarm, the relay will be closed. 9. Click OK. Note After the relay is configured, you can click Device Status → Relay to view the output status. Keypad The keypad is connected to the control panel via RS-485 wiring.
  • Page 46 Hybrid Security Control Panel User Manual Note After configurated, you can check the company name and phone number on the keypad LCD screen. 8. Click OK. Module The wired module is connected to the control panel via RS-485 wiring. You can refer to the Hybrid Control Panel Quick Start Guide for details.
  • Page 47 Hybrid Security Control Panel User Manual Figure 4-24 Area Basic Information Management Page 3. Select an area. 4. Check the Enable One-Push Arming to enable the One-Push Arming key on the keypad. 5. Check the check box in front of the zone to select zones for the area. 6.
  • Page 48 Hybrid Security Control Panel User Manual Figure 4-25 Public Area Settings 3. Check the checkbox to enable the public area function. Note the default public area is area 1 4. Select area(s) to link to the public area in the list. Note It is required to select at least an area to link to the public paritition.
  • Page 49 Hybrid Security Control Panel User Manual Figure 4-26 Schedule & Timer Settings 3. Select an area. 4. Set time duration of Entry Delay 1, Entry Delay 2, or Exit Delay respectively. Entry Delay 1/Entry Delay 2 If you have set the entry delayed zone, you can set the delayed time duration here. Note The available time duration range is from 1 s to 600 s.
  • Page 50 Hybrid Security Control Panel User Manual Enable the function and set the arming start time. The zone will be armed according to the configured time. Note • The auto arming time and the auto disarming time cannot be the same. •...
  • Page 51 Hybrid Security Control Panel User Manual If you have set the perimeter zone, you can set the time duration of the alarm. Note The available time duration range is from 1 s to 900 s. 6. Click Save. 4.2.4 Video Management You can add network cameras (2 to 4, depending on models), NVR and thermal cameras to the control panel, and link the camera with the selected zone for video monitoring.
  • Page 52 Hybrid Security Control Panel User Manual Constant bitrate or variable bitrate can be selected. For constant bitrate, you need to set a fixed bitrate. For Variable bitrate, a bitrate upper limit is required. Resolution Select the resolution according to your needs. The higher the resolution, the higher the requirement of network bandwidth.
  • Page 53 Hybrid Security Control Panel User Manual Figure 4-28 Set Email to Receive Alarm Video 3. Click the block to enable the function. 4. Enter the sender's information. Note It is recommended to use Gmail and Hotmail for sending mails. 5. Enter the receiver's information. 6.
  • Page 54 Hybrid Security Control Panel User Manual Figure 4-29 Video Settings 3. Select a camera and set the video parameters. Stream Type Main Stream: Being used in recording and HD preview, it has a high resolution, code rate and picture quality. Sub-Stream: It is used to transmit network and preview pictures as a video streaming with features of lower resolution, bit rate and picture quality.
  • Page 55 Hybrid Security Control Panel User Manual Steps 1. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in. 2.
  • Page 56 Hybrid Security Control Panel User Manual Figure 4-30 Add User Page 6. Set the keypad password (numeric, 8~16 characters). Note • The keypad password +1 or -1 is the duress code. Use the duress code can operate the keyboard to arm and disarm normally and upload a duress alarm. For example, if the keypad password is 123456, the duress code is 123455 or 123457 •...
  • Page 57 Hybrid Security Control Panel User Manual 10. Optional: Enable the user in the Enable User column to allow the enabled user operating the device. 11. Optional: Select an user and click Edit and you can edit the user's information and permission. 12.
  • Page 58 Hybrid Security Control Panel User Manual Figure 4-32 Edit Keyfob 7. Set the keyfob name. 8. Select the keyfob linked area and related net user. 9. Enable Silence the Panic Alarm according to your needs. Silence the Panic Alarm When enabled, the panic alarm of the wireless keypad will have no linkage prompt. 10.
  • Page 59 Hybrid Security Control Panel User Manual 6. Optional: Click and you can change the card(tag) settings, including tage(card) type, related net user, linked area, etc. 7. Optional: Click to delete the card(tag). 4.2.6 Maintenance Test The security control panel supports walk test function. Steps 1.
  • Page 60 Hybrid Security Control Panel User Manual Steps 1. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in. 2.
  • Page 61 Hybrid Security Control Panel User Manual 4.2.7 System Settings Device infomration You can change name and lanuage of device. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in. Click Configuration → System →...
  • Page 62 Hybrid Security Control Panel User Manual Note • If Enable Arming is enabled, Forced Arming is only effective for Auto Arming. • If there is a fault in the zone and the forbidden bypass when arming is opened, the arming will fail.
  • Page 63 Hybrid Security Control Panel User Manual When the function is enabled, if the device is armed, the indicator will be on all the time. And if the device is disarmed, the indicator will be off. Note Only -P model supports this function. Prompt Fault When Arming If the device applies EN standard, by default, the function is disabled.
  • Page 64 Hybrid Security Control Panel User Manual Figure 4-35 Fault Check Settings Detect Network Camera Disconnection If the option is enabled, when the linked network camera is disconnected, an system status event notification will be uploaded. Battery Supervision If the option is enabled, when battery is disconnected or out of charge, the device will not upload events.
  • Page 65 Hybrid Security Control Panel User Manual Telephone Line Cut Off Detection If the option is enabled, an system status event notification will be uploaded when telehphone is disconnected. RS-485 Exception Detection If the option is enabled, an system status event notification will be uploaded when the RS-485 bus of device has exception.
  • Page 66 Hybrid Security Control Panel User Manual Time Management Click Configuration → System → Date and Time to enter the Time Management page. Figure 4-37 Time Management You can select a time zone from the drop-down list. You can synchronize the device time manually. Or check Sync. with Computer Time to synchronize the device time with the computer time.
  • Page 67 Hybrid Security Control Panel User Manual Locking User Settings Set user locking. You can view the locked user or unlock a user and set the user locked duration. Steps 1. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in.
  • Page 68 Hybrid Security Control Panel User Manual Set the locking duration when the keypad is locked. After the configured duration, the keypad will be unlocked. 5. Click OK. 6. Optional: Click the icon to unlock the locked module. Figure 4-38 Module Lock Settings Maintenance You can reboot the device, restore default settings, import/export configuration file, upgrade the device remotely or search logs.
  • Page 69 Hybrid Security Control Panel User Manual Select the upgrade type. Click View to select an upgrade file from the PC, click Upgrade and enter the password of current user to upgrade the device remotely. Note Do not power off when the device is upgrading. Security Audit Log Enter a short description of your task here (optional).
  • Page 70 Hybrid Security Control Panel User Manual Local Log Search You can search the log on the device. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in. Click Configuration → System →...
  • Page 71 - Visit https://appstore.hikvision.com to download the application according to your mobile phone system. - Visit the official website of our company. Then go to Support → Tools → Hikvision App Store to download the application according to your mobile phone system.
  • Page 72 Hybrid Security Control Panel User Manual Note By default, the verification code is printed on the device label. 6. Tap Wireless Connection on the Select Connection Type page. 7. Follow the instructions on the Turn on Hotspot page and change the control panel to the AP mode.
  • Page 73 Hybrid Security Control Panel User Manual Steps 1. Power on the control panel. 2. Select adding type. - Tap → Scan QR Code to enter the Scan QR code page. Scan the QR code on the control panel. Note Normally, the QR code is printed on the label stuck on the back cover of the control panel. - Tap →...
  • Page 74 Hybrid Security Control Panel User Manual Note • When the adding peripheral is a detector, the detector will be linked to the zone. You can view the detector information in the Zone tab. • Up to 32 detectors can be linked to the zone. The added peripheral will be listed in the Zone tab or the Peripheral Device tab.
  • Page 75 Hybrid Security Control Panel User Manual Figure 4-42 Area Page 2. Tap → User Management → Card/Tag Management to enter the Card/Tag Management page. 3. Tap +. 4. When hearing the voice prompt "Swipe Card", you should present the card on the control panel card presenting area.
  • Page 76 Hybrid Security Control Panel User Manual Steps Note Make sure the keyfob's frequency is the same as the control panel's. 1. On the device list page, tap the security control panel and then log in to the device (if required) to enter the control panel page.
  • Page 77 Hybrid Security Control Panel User Manual Figure 4-44 Add User 4. Select User Type. Enter User Name and Password. 5. Enter Keypad Password. Note The keypad password +1 or -1 is the duress code. Use the duress code can operate the keyboard to arm and disarm normally and upload a duress alarm.
  • Page 78 Hybrid Security Control Panel User Manual Figure 4-45 Option Managment Forced Arming If the option is enabled and there are active faults in a zone, the zone will be bypassed automatically. Note If Enable Arming is enabled, Forced Arming is only effective for Auto Arming. System Faults If the option is enabled, the device will upload the system fault report automatically.
  • Page 79 Hybrid Security Control Panel User Manual Figure 4-46 Fault Check Detect Network Camera Disconnection If the option is enabled, when the linked network camera is disconnected, an alarm will be triggered. Battery Supervision If the option is enabled, when battery is disconnected or out of charge, the device will not upload events.
  • Page 80 Hybrid Security Control Panel User Manual If the option is enabled, the alarm will be triggered when the RS-485 bus of device has exception. AC Power Down Check Time The system checks the fault after the configured time duration after AC power down. To compliant the EN 50131-3, the check time duration should be 10 s.
  • Page 81 Hybrid Security Control Panel User Manual 4.3.9 Arm/Disarm the Zone Arm or disarm the zone manually as you desired. Note Axiom security control panel supports 4 areas. On the device list page, tap the security control panel and then log in to the device (if required) to enter the Area page.
  • Page 82 Hybrid Security Control Panel User Manual Operations for All Areas • Away: When all the people in the detection area leave, turn on the Away mode to arm all zones in all areas after the defined dwell time. • Stay: When the people stays inside the detection area, turn on the Stay mode to arm all the perimeter burglary detection (such as perimeter detector, magnetic contacts, curtain detector in the balcony) set in all the zones of all areas.
  • Page 83 Hybrid Security Control Panel User Manual 4. Enable Zone Bypass and the zone will be in the bypass status. The detector in the zone does not detect anything and you will not receive any alarm from the zone. 4.3.11 Set Zone After the detector is added, you can set the zone, including the zone name, the zone type, zone bypass, linked camera, stay/away status, the sounder, and the silent zone.
  • Page 84 Hybrid Security Control Panel User Manual Enable the function and the zone will be bypassed. No alarm will be received while the zone is bypassed. Link Camera You can link the zone to cameras. When an alarm is triggered, you can monitor the zone via the linked cameras.
  • Page 85 Hybrid Security Control Panel User Manual Figure 4-51 Arming or Disarming Schedule Page Entry Delay 1 Entry Delay 2 Set a value for Entry Delay 1 and Entry Delay2. Entry delay is a time concept. If entry delay is configured for the delayed zone, when you enter an armed delayed zone, the zone alarm will not be triggered until the end of entry delay.
  • Page 86 Hybrid Security Control Panel User Manual Enable the area to automatically arm itself in a specific time point. Auto Arm Time Set the schedule for the area to automatically arm itself. Late to Disarm Enable the device to push a notification to the phone or tablet to remind the user to disarm the area when the area is still armed after a specific time point.
  • Page 87 Hybrid Security Control Panel User Manual 4.3.14 Check Alarm Notification When an alarm is triggered, and you will receive an alarm notification. You can check the alarm information from the mobile client. Before You Start • Make sure you have linked a zone with a detector. •...
  • Page 88 Hybrid Security Control Panel User Manual Figure 4-53 Alarm Details 3. Optional: If the zone has linked a camera, you can view the playback when the alarm is triggered. 4.3.15 Set Network Camera Channel Steps 1. On the device list page, tap the security control panel and then log in to the device (if required) to enter the control panel page.
  • Page 89 Hybrid Security Control Panel User Manual 4. Enter IP Address, Port, User Name and Password. 5. Tap to add channel. 6. Optional: Edit a channel. 1) Select a channel in the list. Figure 4-55 Network Camera Settings 2) Tap to enetr the editing mode. 3) Edit parameters.
  • Page 90 Hybrid Security Control Panel User Manual Figure 4-56 Event Video Settings Stream Type Main Stream: Being used in recording and HD preview, it has a high resolution, code rate and picture quality. Sub-Stream: It is used to transmit network and preview pictures as a video streaming with features of lower resolution, bit rate and picture quality.
  • Page 91 Hybrid Security Control Panel User Manual Steps 1. On the device list page, tap the security control panel and then log in to the device (if required) to enter the control panel page. 2. Tap Zone to enter the zone list page. 3.
  • Page 92 Hybrid Security Control Panel User Manual Chapter 5 Operations You can use the client keyfob, card, client software, or mobile client to do arming, disarming, bypass, and zone disabling. 5.1 Arming You can use keypad, keyfob, card, client software, mobile client to arm your system. After the arming command is sending to control panel, the sytem will check the detector status.
  • Page 93 Hybrid Security Control Panel User Manual Reason of Arming Failure • Intrusion detector triggered (excepts the detector on the exit route). • Panic alarm device triggered. • Tampering alarm occurred. • Communication exception • Main power supply exception • Backup battery exception •...
  • Page 94 Hybrid Security Control Panel User Manual Figure 5-2 TypeⅠ Keyfob Table 5-1 Type Ⅰ Keyfob Keys Description Indicator Green: Successful Operation Red: Press the Key Away Arming Clearing Alarm Stay Arming Disarming Panic Alarm (Duress Alarm) Hold the key for 2 seconds, an alarm report will be send to the alarm center secretly without alerting.
  • Page 95 Hybrid Security Control Panel User Manual Figure 5-3 Type Ⅱ Keyfob Table 5-2 Type Ⅱ Keyfob Keys Description Arming (Lock) Disarming( Unlock) Combo-​ F unction Key Custom Combination Functions (except Arming +Ⅱ and Disarming +Ⅰ) : Away Arming, Stay Arming, Disarming, Panic Alarm, Clearing Alarm, Fault Inspection, and Arming Status Check. The following table shows the keyfob operation and responded indications.
  • Page 96 Hybrid Security Control Panel User Manual 5.4 Use the Card It is poissible to arm or disarm the system with the card. While the system is not armed, present a valid card to the control panel to arm the system. While the system is armed, present a valid card to the control panel to disarm the system.
  • Page 97 Hybrid Security Control Panel User Manual The following describes how to add devices through IP/Domain Name. For more information, see iVMS-4200 Client Software User Manual. Steps 1. On the Device page, click Add. 2. Select IP/Domain as the adding mode, edit the device information, including Name, Address, Port, User Name, and Password.
  • Page 98 Hybrid Security Control Panel User Manual Figure 5-5 Login Cloud P2P Account Note • If you have added a device to your Cloud P2P account, the device will appear in the device list. If not, you need to add a device via cloud P2P or IP. •...
  • Page 99 Hybrid Security Control Panel User Manual Click to enter the zone operation page. You can Bypass and Bypass Recovered the selected zones here. 5.5.4 Operate the Relay In the client software, click Security Control Panel → Relay to enter the page. You can Enable or Close the selected relays.
  • Page 100 Hybrid Security Control Panel User Manual 4. Use the activation user name and password to login. Note Refer to Activation chapter for the details. 5.6.1 Add/Edit/Delete Tag (Card) You can add tag to the security control panel and you can use the tag(card) to arm/disarm the zone.
  • Page 101 Hybrid Security Control Panel User Manual Figure 5-7 Keyfob Management 3. Click Add and press any key on the keyfob. 4. Set the keyfob linked device type and linked device No.. 5. Click OK. 6. Optional: Click to edit the keyfob information. Figure 5-8 Edit Keyfob 7.
  • Page 102 Hybrid Security Control Panel User Manual 10. Optional: Click to delete the keyfob. 5.6.3 Add/Edit/Delete User Administrator can add user to the security control panel, edit the user information, or delete the user from the security control panel. You can also assign different permissions to the new user. Steps 1.
  • Page 103 Hybrid Security Control Panel User Manual Figure 5-9 Add User Page 6. Set the keypad password (numeric, 8~16 characters). Note • The keypad password +1 or -1 is the duress code. Use the duress code can operate the keyboard to arm and disarm normally and upload a duress alarm. For example, if the keypad password is 123456, the duress code is 123455 or 123457 •...
  • Page 104 Hybrid Security Control Panel User Manual 10. Optional: Enable the user in the Enable User column to allow the enabled user operating the device. 11. Optional: Select an user and click Edit and you can edit the user's information and permission. 12.
  • Page 105 Hybrid Security Control Panel User Manual Figure 5-10 Zone Status Click the icon on the right of the zone, or check zones and click Bypass or Bypass Restored to control zones. 5.8 Area Operation Arm, disarm or clear alarm for areas. In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in.
  • Page 106 Hybrid Security Control Panel User Manual In the client software, select the device on the Device Management page and click , or enter the device IP address in the address bar of the web browser and log in. Click Device Status → Sounder to enter the page.
  • Page 107 Hybrid Security Control Panel User Manual Appendix A. Trouble Shooting A.1 Communication Fault A.1.1 IP Conflict Fault Description: IP that the panel automatically acquired or set is same as other devices, resulting in IP conflicts. Solution: Search the current available IP through ping. Change the IP address and log in again. A.1.2 Web Page is Not Accessible Fault Description: Use browser to access web pages and display Inaccessible.
  • Page 108 Hybrid Security Control Panel User Manual When using APP to add devices, it is prompted that the device fails to be added, the device could not be found, etc. Solution: Check the web page: whether the Hik-Connect is offline. A.1.6 Alarm Information is Not Reported to APP/4200/Alarm Center Fault Description: After the alarm is triggered, the app/4200/ alarm center does not receive the alarm message.
  • Page 109 Hybrid Security Control Panel User Manual Solution: Check whether the detector reports undervoltage. Replace the detector battery A.3.2 Zone Tamper-proof Fault Description: View status of zones which displays tamper-proof. Solution: Make tamper-proof button of the detector holden. A.3.3 Zone Triggered/Fault Fault Description: View status of zones which displays triggered/fault.
  • Page 110 Hybrid Security Control Panel User Manual A.5.2 The Alarm Clearing Operation on the Panel Does Not Produce the Alarm Clearing Report Fault Description: The alarm clearing operation on the panel does not produce the alarm clearing report. Solution: In the absence of alarm, no report will be uploaded for arm clearing. A.6 Mail Delivery Failure A.6.1 Failed to Send Test Mail Fault Description:...
  • Page 111 Hybrid Security Control Panel User Manual Solution: Click the link below, and then click "continue" (https://accounts.google.com/b/0/ displayunlockcaptcha). A.6.4 Failed to Send Mails to QQ or Foxmail Fault Description: The receiver's mailbox is QQ or foxmail. Click "Test Inbox" and prompt test fails. 1.
  • Page 112 Hybrid Security Control Panel User Manual Mail Type Mail Server SMTP Port Protocols Supported Sina smtp.sina.com 25/465/587 SSL/TLS/STARTTLS (SSL/TLS) Note About mail configuration: • SMTP port Default to use port 25 without encryption, or using port 465 if SSL/TLS is used. Port 587 is mainly used for STARTTLS protocol mode.
  • Page 113 Hybrid Security Control Panel User Manual Appendix B. Input Types Table B-1 Input Types Input Types Operations Instant Zone The system will immediately alarm when it detects triggering event after system armed. Audible Response Trigger the system sound and sounder. Voice Prompt: Zone X alarm.
  • Page 114 Hybrid Security Control Panel User Manual Input Types Operations Gas Zone The zone activates all the time with sound or sounder output when alarm occurs. Audible Response: Trigger the system sound and sounder. Voice Prompt: Zone X gas alarm. Medical Zone The zone activates all the time with beep confirmation when alarm occurs.
  • Page 115 Hybrid Security Control Panel User Manual Input Types Operations Voice Prompt: Armed/Arming failed.
  • Page 116 Hybrid Security Control Panel User Manual Appendix C. Output Types Table C-1 Output Types Output Types Active Restore Arming Arm the control panel After the configured output delay Disarming Disarm the control panel After the configured output delay Alarm When alarm event occurs. The After the configured output alarm output will be activated delay, disarm the control panel...
  • Page 117 Hybrid Security Control Panel User Manual Appendix D. Event Types Table D-1 Event Types Event Types Custom Default 1 Default 2 Default 3 Default 4 (client (alarm (mobile client) (telephone) software receiving notification) center 1/2) Alarm and ×/√ √ √ √...
  • Page 118 Hybrid Security Control Panel User Manual Appendix E. Access Levels Level Description Access by any person; for example the general public. User access by an operator; for example customers (systems users). User access by an engineer; for example an alarm company professional. User access by the maintenance of the equipment.
  • Page 119 Hybrid Security Control Panel User Manual • When the controller is bypassed, the user level 3 can login the controller without the permission assignment of the user level 2. • The user level 4 can login the controller only when the user level 2 or level 3 has assigned permissions to the user level 4.
  • Page 120 Hybrid Security Control Panel User Manual Appendix F. SIA and CID Code Table F-1 SIA and CID Code SIA Code CID Code Object Description 1100 Zone Medical Alarm 3100 Medical Alarm Restored 1130 Burglary Alarm 3130 Burglary Alarm Rstored 1110 Fire Alarm 3110 Fire Alarm Restored...
  • Page 121 Hybrid Security Control Panel User Manual SIA Code CID Code Object Description 3137 Device Tamper Restored 1151 Zone Gas Leakage Alarm 3151 Gas Leakage Alarm Restored 1301 Control Panel AC Power Loss 3301 AC Power Restored 1302 Low System Battery 3302 Low System Battery Restored...
  • Page 122 Hybrid Security Control Panel User Manual SIA Code CID Code Object Description 1383 Zone Detector Tampered 3383 Detector Tamper Restored 1401 Area Disarming 3401 Away Arming 1403 Auto Disarming 3403 Auto Arming 1406 Alarm Clearing 1409 Keyswitch Zone Disarming 3409 Keyswitch Zone Arming 3441 Stay Arming...
  • Page 123 Hybrid Security Control Panel User Manual SIA Code CID Code Object Description High Temperature Warnig Restored Low Temperature Warning Low Temperature Warnig Restored 1158 High Temperature Alarm 3158 High Temperature Alarm Restored 1159 Low Temperature Alarm 3159 Low Temperature Alarm Restored 1120 Control Panel Keypad/Keyfob Panic...
  • Page 124 Hybrid Security Control Panel User Manual SIA Code CID Code Object Description 1334 Repeater Wireless Repeater Disconnected 3334 Wireless Repeater Connected 1384 Siren Wireless Siren Low Battery 3384 Normal Wireless Siren Battery 1352 Control Panel Cellular Data Network Disconnected 3352 Cellular Data Network Connected 1352...
  • Page 125 Hybrid Security Control Panel User Manual SIA Code CID Code Object Description Network Camera Connected 1306 Zone Detector Deleted 3306 Detector Added 1306 Module Expander Deleted 3306 Expander Added 1306 Repeater Wireless Repeater Deleted 3306 Wireless Repeater Added 1306 Siren Wireless Siren Deleted 3306 Wireless Siren Added...
  • Page 126 Scan the following QR code to get the device communication matrix and device common serial port commands. Note that the matrix contains all communication ports of Hikvision security control devices. Figure G-1 QR Code of Communication Matrix and Device Command User Privacy Statement •...
  • Page 127 UD19878B...
