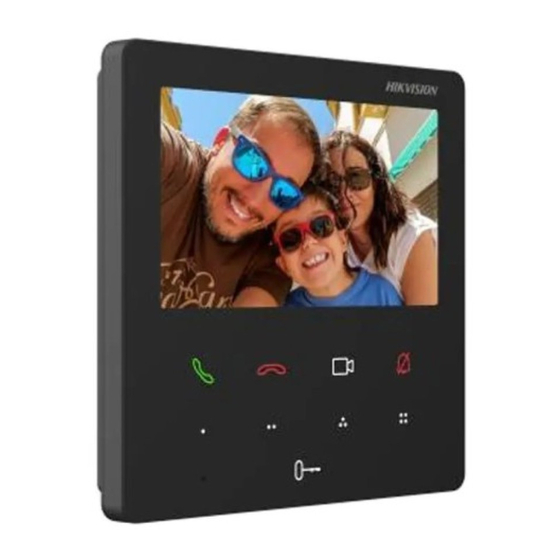

HIKVISION DS-KH6110-WE1 User Manual

Network indoor station
Hide thumbs Also See for DS-KH6110-WE1:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Indoor Station
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-KH6110-WE1 and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-KH6110-WE1

Summary of Contents for HIKVISION DS-KH6110-WE1

  • Page 1 Network Indoor Station User Manual...
  • Page 2 ● Products described in this Document, which may include licenses obtained from third parties. Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part ● of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 Network Indoor Station User Manual PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY ● RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS;...
  • Page 4 Network Indoor Station User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or...
  • Page 5 Network Indoor Station User Manual Regulatory Information EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 6 Network Indoor Station User Manual Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité...
  • Page 7 Network Indoor Station User Manual About this Manual Get the manual and related software from or the official website (http://www.hikvision.com). Product Model Network Indoor Station (with Alarm In DS-KH6110-WE1 Interface) DS-KH6100-E1 DS-KH6000-E1...

  • Page 8: Table Of Contents

    1.3 Activate DS-KH6000-E1 ......................3 Chapter 2 Operations on DS-KH6000-E1 ..................5 Chapter 3 Touch-Button Function of DS-KH6110-WE1/DS-KH6100-E1 ......... 6 Chapter 4 Local Configuration and Operation of DS-KH6110-WE1 ..........8 4.1 Local Configuration of DS-KH6110-WE1 ................8 4.1.1 Quick Operation ......................8 4.1.2 Basic Settings ......................
  • Page 9 Network Indoor Station User Manual 5.1 Local Configuration DS-KH6100-E1 ..................42 5.1.1 Device Information ..................... 42 5.1.2 General Settings ......................42 5.1.3 Preference ........................43 5.1.4 Volume Settings ......................43 5.1.5 Call Settings ......................... 43 5.1.6 Reboot Device ......................44 5.1.7 Zone and Alarm Settings .....................

  • Page 10: Chapter 1 Activation

    Network Indoor Station User Manual Chapter 1 Activation You can configure and operate the indoor station after creating a password for the device activation. Steps 1. Power on the device. It will enter the page of language settings. Figure 1-1 Language Settings 2.
  • Page 11 Network Indoor Station User Manual Figure 1-2 Activation Page 3. Create a password and confirm it. Note You can click to enable or disable password reveal. 4. Tap OK to activate the indoor station. Caution The password should be 8 to 16 characters. ●...

  • Page 12: Activate Ds-Kh6100-E1

    Network Indoor Station User Manual 1.2 Activate DS-KH6100-E1 You can configure and operate the indoor station after creating a password for the device activation. Steps 1. Power on the device. It will enter the page of language settings. 2. After setting the language, it will enter the activation page. 3.
  • Page 13 Network Indoor Station User Manual 3. Create a password, and confirm the password. Caution The password should be 8 to 16 characters. ● The password should contain at least 2 of the following types: digits, lowercase letters, ● uppercase letters and special characters. Do not contain following characters in the password: the user name, 123, admin (case- ●...

  • Page 14: Chapter 2 Operations On Ds-Kh6000-E1

    Network Indoor Station User Manual Chapter 2 Operations on DS-KH6000-E1 You can operate the device locally via touch buttons. You can answer the call, hang up the call, mute the device, adjust the volume and unlock the door via touch buttons on the device. Note You can also customize the four customizable buttons remotely via iVMS-4200 Client Software.

  • Page 15: Chapter 3 Touch-Button Function Of Ds-Kh6110-We1/Ds-Kh6100-E1

    Network Indoor Station User Manual Chapter 3 Touch-​ B utton Function of DS-KH6110- WE1/DS-KH6100-E1 You can operate the device locally via touch buttons. You can answer or hang up the call on the calling page, unlock the door and view the live videos of the door station on the live view page and mute the device via touch buttons.
  • Page 16 Network Indoor Station User Manual Figure 3-2 Touch Buttons Function 2...

  • Page 17: Chapter 4 Local Configuration And Operation Of Ds-Kh6110-We1

    Network Indoor Station User Manual Chapter 4 Local Configuration and Operation of DS- KH6110-WE1 4.1 Local Configuration of DS-KH6110-WE1 4.1.1 Quick Operation After device activation, the wizard page will pop up. If you activate you device via Client Software, there will not be wizard for quick operation.
  • Page 18 Network Indoor Station User Manual Figure 4-2 Set Security Questions - Bind an email address. If you forget your admin and activation password, you can change the password via the reserved email address. - Tap Change to Security Question to select security questions and enter the answers. If you forget your admin and activation password, you can change the password via answering the questions.
  • Page 19 Network Indoor Station User Manual Figure 4-3 Network Settings - Edit Local IP, Subnet Mask and Gateway parameters manually. - Enable Auto Get IP address, the device will get network parameters automatically. 3. Configure the indoor station.
  • Page 20 Network Indoor Station User Manual Figure 4-4 Indoor Station Settings 1) Select Device Type as Indoor Station or Indoor Extension. 2) Set Room No.. 3) Configure advanced settings. Set Community No., Building No., Unit No. and Floor No. 4) Set Registration Password. 5) Tap Next.
  • Page 21 Network Indoor Station User Manual Figure 4-5 Wi-Fi Settings Note The device should support Wi-Fi. 5. Set time and tap Next.
  • Page 22 Network Indoor Station User Manual Figure 4-6 Time Settings Note The time can be synchronized to door stations. 1) Tap Date Format and Time Format to set the time format. 2) Tap Time to set time manually. 3) Tap Sync Time to select Time Zone and enable NTP function. 4) Tap to enable Synchronize Time to Door Station to synchronize indoor station time to linked door station.
  • Page 23 Network Indoor Station User Manual Figure 4-7 Call Mobile Phone 1) Enable Hik-Connect service. 2) Edit verification code or use the activation password by default. 3) View Hik-Connect Server Status. 4) Scan the first QR Code to download the APP of Hik-Connect. Scan the second QR Code to add your device to the APP.
  • Page 24 Network Indoor Station User Manual Figure 4-8 Door Station Settings Note If the door station is inactive, the system will activate the door station automatically and assign the network parameters to the door station. 2) Tap Next. 8. Optional: Enable Indoor Extension and link related indoor extension devices. Tap Finish. If the indoor extension and the indoor station are in the same LAN, the device will be displayed in the list.

  • Page 25: Basic Settings

    Network Indoor Station User Manual Figure 4-9 Indoor Extension Settings 1) Tap the indoor extension in the list to link. Note If the indoor extension is inactive, the system will activate the indoor station automatically and assign the network parameters to the indoor station. 9.
  • Page 26 Network Indoor Station User Manual Figure 4-10 Network Information Two ways are available for you to set IP address: DHCP, and set IP address manually. 1. Tap Settings → → Configuration , and enter admin (activation) password. 2. Tap to enter the network settings page. 3.
  • Page 27 Network Indoor Station User Manual Figure 4-11 Wi-Fi Settings Select an Wi-Fi and connect. Set Linked Device IP Linked network parameters refers to network parameters of devices (such as door station, doorphone, main station, center, etc.), to which the indoor station is linked. Linked devices for indoor station refer to door station, center, main station, and doorphone.
  • Page 28 Network Indoor Station User Manual Figure 4-12 Device Management Set the parameters of the linked door station. Tap to set parameters of the door station. 3. Select a device to link. Edit following parameters. Name You can edit the name of the device. Language Select a language from the drop-down list for the device.
  • Page 29 Network Indoor Station User Manual Restore to Default Settings Restore Default Settings Tap Restore Default Settings to restore parameters except network parameters and activation password to factory settings. And the system will reboot automatically. Restore All All parameters will be restored to the factory settings. The system will reboot to take effect.
  • Page 30 Network Indoor Station User Manual 2. Select Indoor Station to set the room information, live view duration, SIP parameters and password. Room Information You can set room name, room No. and in which way the room No. will be displayed. Tap Advanced Settings to set community No., building No., unit No.
  • Page 31 Network Indoor Station User Manual Steps 1. Tap Settings → → Configuration , and enter admin (activation) password. 2. Tap SIP Settings in Local Information page. Figure 4-14 SIP Settings 3. Set SIP registration password. 1) Tap Registration Password. 2) Create a new SIP registration password and confirm the password. 3) Tap OK.
  • Page 32 Network Indoor Station User Manual Figure 4-15 VOIP Account Settings Note Up to 32 characters are allowed in the user name. Add Camera Steps 1. Tap Settings → → Configuration , and enter admin (activation) password. 2. Tap to enter the device management page. 3.

  • Page 33: Password Settings

    Network Indoor Station User Manual Exit the page to save the settings. 4.1.3 Password Settings Security Settings If you forgot the admin password, you can change your password via the reserved email address or the security questions. Steps 1. Tap Settings → →...

  • Page 34: Device Information

    Network Indoor Station User Manual Steps 1. Tap Settings → → Password to enter the settings page. 2. Tap Arm/Disarm Password. Create the indoor station's arm/disarm password. You should enter the arm/disarm password to enable or disable the function. 3. When you slide to disable Scene Password, there is no needs to enter password during scene mode switching.
  • Page 35 Network Indoor Station User Manual Figure 4-17 General Settings Time and Date Set the displayed time and date format, current time. Tap Sync Time to synchronize the device time. Tap to enable Synchronize Time to Door Station to synchronize the device time to the linked door station.

  • Page 36: Preference

    Network Indoor Station User Manual 4.1.6 Preference You can configure shortcut settings and customizable buttons on the preference page. Tap Settings → to enter the preference page. Shortcut Settings You can enable Call Elevator, Alarm,Call Management Center, Leave Message and Snapshot function, and the icons will be displayed on the home page.
  • Page 37 Network Indoor Station User Manual Figure 4-19 System Maintenance Restore Restore Default Settings Tap Restore Default Settings to restore parameters except network parameters and activation password to factory settings. And the system will reboot automatically. Restore All Tap Restore All to restore all parameters to factory settings and the system will reboot automatically.

  • Page 38: Synchronize Time

    Network Indoor Station User Manual Hik-Connect Service Settings For more details, please refer to Link to the Mobile Client . Security Settings Email Address Tap Email Address. Enter or edit the address. Security Question Tap Security Question. Select questions and enter the answers. 4.1.8 Synchronize Time Steps 1.

  • Page 39: Sound Settings

    Network Indoor Station User Manual Note The default unit of synchronizing interval is minute. ● The time zone can be configured as well if the NTP is not enabled. ● 4.1.9 Sound Settings Call Settings You can set the ringtone, ring duration, call forwarding time on call settings page. Steps 1.
  • Page 40 Network Indoor Station User Manual The call will end automatically when the actual calling duration is longer than the configured one. Calling duration ranges from 30 s to 60 s. Call Forwarding Duration The ring duration limit beyond which the call is automatically forwarded to the mobile phone designated by the resident.

  • Page 41: Via The Mobile Client

    Network Indoor Station User Manual Set the do not disturb schedule. Select Close and the do not disturb function will not be enabled. Select All Day and this device will not be disturbed all day. Select Schedule and you can set the do not disturb time duration. Within the configured time, this device will not be disturbed.
  • Page 42 Network Indoor Station User Manual Figure 4-23 Enable Guarding Vision Service 3. Edit LBS server and Verification Code. Note Verification code is used to add the device to mobile client. 4. Optional: Scan the QR code on the screen. Note Scan the left QR code on the screen to access Hik-Connect.

  • Page 43: Zone And Alarm Settings

    Network Indoor Station User Manual 4.1.11 Zone and Alarm Settings Zone Settings You can set the zone type, alarm type and delay time and other parameters. Before You Start Tap Settings → → Shortcut Settings to enable Alarm. Steps Note Arming status page and zone settings page are hidden by default.

  • Page 44: Other Operations On Ds-Kh6110-We1

    Zones are configurable on the arming mode page. ● Smoke detector zone and gas detector zone will be triggered even if they are disabled. ● 4.2 Other Operations on DS-KH6110-WE1 4.2.1 Call Settings Add Contact Steps 1. Tap Call →...
  • Page 45 Network Indoor Station User Manual Figure 4-25 Contact List 2. Tap to pop up the contact adding dialog. 3. Enter the contact name and the room No. 4. Tap OK to save the settings. Note Up to 200 contacts can be added. Call Resident Steps Note...
  • Page 46 Network Indoor Station User Manual Figure 4-26 Call Resident 2. Enter the calling number. The calling number format should be x-x-x-xxx. For example, the calling number of Community 1, Building 2, Unit 3, and Room 405 is 1-2-3-405. Note The community No. can be omitted. 3.
  • Page 47 Network Indoor Station User Manual On the call from door station page, there are 2 unlock buttons: Unlock 1, and Unlock 2. When you tap Unlock 1, the building gate will open by default, and when you tap Unlock 2, the door connected to the door station with the secure control door unit will open.

  • Page 48: Leave Message

    Network Indoor Station User Manual 4.2.2 Leave Message You can set leave message, and view the messages. Tap Settings → → Shortcut Settings , and enable Leave Message. Set Leave Message Time as 1 day, 7 days or 30 days. Tap Message →...

  • Page 49: Call Elevator

    Network Indoor Station User Manual Note On the Call from Door Station page, there are 2 unlock buttons: Unlock 1, and Unlock 2. When ● you tap Unlock 1, the building gate will open by default. When you tap Unlock 2, the door station connected door will open.

  • Page 50: Information Management

    Network Indoor Station User Manual 4.2.5 Information Management You can view public notice, visitor message, alarm log and capture log on information management page. Tap Message to enter the information management page. Note Here takes the alarm log page as an example. Figure 4-30 Alarm Logs Delete a Log: Hold the item, you can delete it.

  • Page 51: Chapter 5 Local Configuration And Operation Of Ds-Kh6100-E1

    Network Indoor Station User Manual Chapter 5 Local Configuration and Operation of DS- KH6100-E1 5.1 Local Configuration DS-KH6100-E1 5.1.1 Device Information View the device information, including the version, model, serial No. and open source disclaimer. Steps 1. Select Settings → →...

  • Page 52: Preference

    Network Indoor Station User Manual 5.1.3 Preference You can configure shortcut settings on the preference page. Select Settings → to enter the preference page. Shortcut Settings You can enable Call Elevator, Alarm Call Management Center, Leave Message and Snapshot function, and the icons will be displayed on the home page. Note You can set Leave Message Time and Snapshot Timeif these two functions are enabled.

  • Page 53: Reboot Device

    Network Indoor Station User Manual Select All and all devices will not disturb this device. Select Indoor Station and all indoor station will not disturb this device. Do Not Disturb Set the do not disturb schedule. Select Close and the do not disturb function will not be enabled.
  • Page 54 Network Indoor Station User Manual Figure 5-1 Zone Settings 2. Select a zone to pop up the zone editing dialogue box. 3. Set the zone type, alarm type, status of arming status, entering delay, and exiting delay. Arming Mode Settings 4 arming modes can be configured: stay mode, away mode, sleeping mode and custom mode.

  • Page 55: Other Operations On Ds-Kh6100-E1

    Network Indoor Station User Manual 5.2 Other Operations on DS-KH6100-E1 5.2.1 Call Settings Call Indoor Extension/Indoor Station Select Call on the main page to enter the calling page. If you install indoor station and indoor extensions at home, you can call the indoor extension via your indoor station.

  • Page 56: Leave Message

    Network Indoor Station User Manual Call Resident Steps Note Only when the Call Management Center function is enabled, should the call center button be displayed. For details, see the configuration guide. 1. Select Call → to enter the residents calling page. 2.

  • Page 57: Information Management

    Network Indoor Station User Manual Steps 1. Select Settings → → Shortcut Settings to enable Call Elevator. 2. Select on the home page of the indoor station to start calling the elevator. 3. When the device communicates with door station, select unlock icon to start calling the elevator. 5.2.5 Information Management You can view public notice, visitor message, alarm log and capture log on information management page.

  • Page 58: Chapter 6 Other Platforms To Configure

    You can also configure the device via iVMS-4200 Client Software or HikCentral Access Control. For details, see the platforms' user manual. iVMS-4200 Client Software Click/tap the link to view the client software's user manual. http://enpinfodata.hikvision.com/analysisQR/showQR/ca930247 HikCentral Access Control (HCAC) Click/tap the link to view the HCAC's user manual. http://enpinfodata.hikvision.com/analysisQR/showQR/f2f6cf42...
  • Page 59 UD36060B...
