- Page 1 AX PRO Series Accessory Online Operation Training International Product and Solution Center...
- Page 2 W i r e d I n p u t R e m o t e a n d l o c a l 868 MHz / 433MHz A R C p r o g r a m m i n g o p t i o n W i r e l e s s z o n e s Radio Frequency Internet...
- Page 3 System Status LAN Interface Power Switch Indicators (RJ45) Power Power Supply LED Supply SIM card Tamper Slots (2) Switch Reset RS232 Port Built-in Tag Reader Button • • Front of AX PRO Rear of AX PRO *Internal use only...
- Page 4 Adding via Hik-Connect by Wi-Fi Connect your phone to Wi-Fi first Press Add Device Scan QR code backboard Press Next Choose type of connection *Internal use only (we select wireless here)
- Page 5 Adding via Hik-Connect Choose ‘The device is started’ Configure your Wi-Fi Press ‘Connect to a Network’ Wait until it connected *Internal use only then click Next...
- Page 6 Operation Video Add by Wi-Fi *Internal use only...
- Page 7 Area Interface Device List System Status Dual buttons for Arming and Disarming AX PRO has a more logical directory in Hik-Connect, which is divided into Area Device / Status. Besides, these readable icons also help us know more status of all the system, such as Area Arming Status,...
-
Page 8: Adding Peripherals

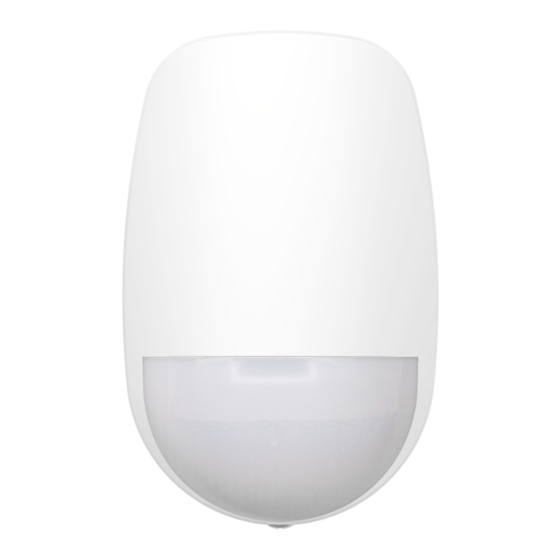

Adding Peripherals Register wireless detectors and accessories into AX PRO panel... - Page 9 “Enrollment Option 1. Scan the QR code on peripheral and Option 2. we can also turn to then power the device on within 30s, the device Mode”in APP and then register multiple will be added when the indicator flashes green peripherals in group at one time.
- Page 10 AX PRO system, we can easily check more kinds of status of peripherals after adding. *Internal use only...
-
Page 11: Area Configuration
Area Configuration Configurations of area. - Page 12 Press Setting Button Press ‘>’ to Choose the Area you want Press to enable Press to link zones Area interface *Internal use only...
-
Page 13: Repeater Configuration
Repeater Configuration • Adding RF Repeater. • Auto-pairing features... - Page 14 RF Repeater *Internal use only...
- Page 15 Normal Detector Accessory RF Repeater RF Repeater Sounder AX PRO PIRCAM Output RF Repeater RF Repeater *Internal use only...
- Page 16 After added into AX PRO system, the RF Repeater will automatically find and connect the wireless peripherals with weak RF signal, help boost their communication range. Strong (PIRCAM and Smoke Detector are excepted) Offline Repeater AX PRO Have to click “Pairing” manually in App or Web to boost the range of PIRCAM and Smoke Detector.
- Page 17 RF Repeater could connect PIRCAM, and could also help forward GIFs to AX PRO panel. ≤ seconds ≤ seconds AX PRO Repeater *Internal use only...
- Page 18 Pairing Click “Pairing” to boost the RF range of PIRCAM and Smoke detector. Signal Strength Test Click to test the Signal Strength between AX PRO Panel and Repeater Find Me Click “Find Me” button, and then LED indicator will blink for 30s, to help user find its location.
-
Page 19: Relay Configuration
Relay Configuration • Adding Relay. • Event linkage. -
Page 20: Wall Switch
Wall Switch 1-ch high current output(90~240VAC, 13A) Air Condition Central Heating Lamp Relay Module 1-ch low current output(0~36VDC, 5A) Electric Lock Garage Door Sounder Smart Plug 1-ch high current output(100~240VAC, 10A) Air Fans Water Heater Humidifier *Internal use only... - Page 21 Linked Area Linked with a specific Area. Original Status Select “Normal Closed” or “Normal Opened” for output device. Scenario Setting Select Linkage Solution among “by Alarm” , “by Operation”, “by Fault”, “by Schedule”, and “Manual”. Tamper Input Enable this features if it’s in need to detect Tamper Alarm of output device.
- Page 22 New released Product • Single-input Transmitter • 12V PSU module...
- Page 23 Tri-X RF Technology (868MHz, up to 1,700m in open space) (433MHz, up to 1,300m in open space) Power Supply Module (8 – 24 VDC) Battery (3 x CR123A batteries, 3.3v output) Input Current Alarm Input (up to 2A) (1-ch Alarm, 1-ch Tamper) Output Alarm Output (5.5V / up to 2A)
- Page 24 Single-Input Transmitter ZONE TAMP AM/O POWER ● ●...
- Page 25 12v PSU Module 220V PSU 220V PSU by default 12v PSU Module available Used for normal scenario. Connecting AX PRO to 8~24V Low-voltage power source, such as touring cars, or yachts and other applications lacking main power or having unstable power supply.
- Page 26 Arm/Disarm Operation • Multiple methods for arming/disarming • “Arm with fault” features...
- Page 27 Click “User Management” Click Name Tag Press the button Set User Permission for user *Internal use only...
- Page 28 Press ‘>’ to set password Press Setting Button to Press ‘>’ and then Press User interface to Set a password and press OK configure Turn to User interface User management site *Internal use only...
- Page 29 “System” > “System Options” Enable “Arm With Fault” And select “CheckList” *Internal use only...
- Page 30 Arm With Fault Checklist Fault LED Arm Button Arm With Fault *Internal use only...
- Page 31 Operation Video for Keypad Events Codes Away arm code+short press away Stay arm code+short press stay Disarm code+short press disarm code+ ＃ +partitions (1,2.3.4.5.6.7.8.9.010.011.012..)+away Choose partition away code+ ＃ +partitions (1,2,3.4.5.6.7.8.9.010.011.012..)+stay Choose partition stay code+ ＃ +partitions (1,2,3.4.5.6.7.8.9.010.011.012..)+disarm Choose partition disarm Clear alarm code+long press disarm Fire...
- Page 32 Time Line Arm With Fault Checklist Fault LED present tag *Internal use only...
- Page 33 Arm With Fault Checklist Orange Arm Button *Internal use only...
- Page 34 THANK YOU International Product and Solution Center...
