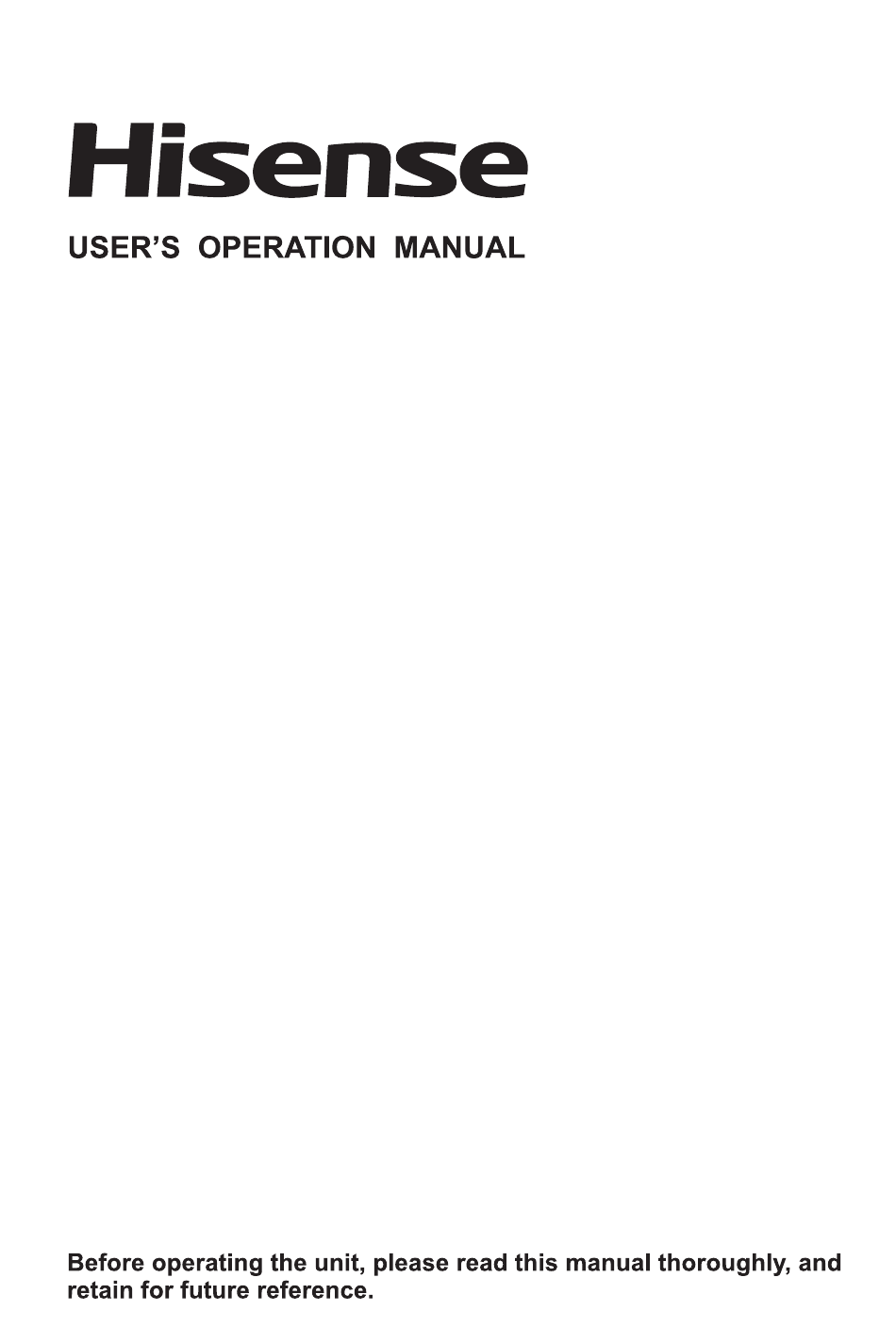

- Page 1 MODEL NO.:HHU60GASS...
-
Page 2: Table Of Contents
CONTENTS CLOSE-UP VIEW …………………………………..……………………………1 How To Use Your Appliance …………..………..………..………..……….…2 CLEANING AND MAINTENANCE……………………………………………3 ADVICE FOR INSTALLATION………………..………………………………5 GAS SECTION…………………………………..………………………………8 ELECTRICAL SECTION…………………………………..……………………11 CUT-OUT DIMENSION…………………………………..……………………12 WARRANTY CONDITIONS…………………………………..………………13... -
Page 3: Close-Up View
Congratulations on choosing appliance, which you will find is dependable and easy to use. We recommend that you read this manual for best performance and to extend the life of your appliance. Thank you. CLOSE-UP VIEW The ceramic glass can be damaged/cracked by external shock & vibration. Cast iron and aluminum cookware with sharp edge may scratch the ceramic surface if they are dragged across it. -
Page 4: How To Use Your Appliance
How To Use Your Appliance The position of the corresponding gas burner is indicated on each control knob. GAS BURNERS The burners differ in size and power. Choose the most appropriate one for the diameter of the cookware being used. The burner can be regulated with the corresponding control knob by using one of tile following settings: It is prohibited to adjust the flame in the range between the Burner OFF and Burner ON... -
Page 5: Cleaning And Maintenance
Table of recommended pans Burner Ø Pan diameter in cm Auxiliary from dia. 8 to dia. 14 Semi rapid from dia. 14 to dia. 20 Rapid from dia. 20 to dia. 28 Above dia. 26 Triple ring AUTOMATIC SAFETY VALVES This safety device automatically closes the gas valve if the inconvenience caused by failure to comply with this rule. - Page 6 GAS TAPS Periodic lubrication of the gas taps must be carried out by specialist personnel only. In the event of operating faults in the gas taps, call the Service Department. GENERAL ADVICE ● When the appliance is not being used; it is advisable to keep the gas tap closed. ●...
-
Page 7: Advice For Installation
Greasing the Gas Valves Over time, the gas valves may stick or become difficult to turn. If this is the case, the must be cleaned on the inside and the regressed. N.B.:This procedure must be performed by a technician authorized by the manufacturer. ADVICE FOR INSTALLATION IMPORTANT: ●... - Page 8 In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown on the cutting size board has to be made, keeping in consideration the following: ● Within the fixture, between the bottom side of the cooker top and the upper surface of any other appliance or internal shelf there must be a clearance of at least 30 mm;...
- Page 9 INSTALLATION ROOM The room where the gas appliance is to be installer must have a natural flow of air so that the gas can burn. The flow of air must come directly from one or more openings made in the out-side walls with a free area of at least 100c㎡.
-
Page 10: Gas Section
-Slot the cooker top into the unit and position. -Position the cooker top in the recess and secure by means of the brackets as shown in fig.12 (for 3 or 4 cm thick work top). GAS SECTION TYPES OF GASES The gases normally used may be grouped, in view of their features in three families: -L.P.G.(in cylinders) G30 28-30mbar... - Page 11 GAS CONNECTION IMPORTANT: The connection must be executed by qualified technician according to the relevant local standard. The connection must be executed by qualified technician according to the relevant standard. The fitting is made up of (see below figuration); ● 1 Elbow fitting “A”...
- Page 12 OPERATIONS TO BE PERFORMED WHEN SUBSTITUTING THE INJECTORS If the injectors are not supplied they can be obtained from the “Service Centre”. Remove the gratings and the burner covers; Using a wrench, substitute the nozzle injectors; “J” (left Fig. 13) with those most suitable for the kind of gas for which it is to be used (see Injector table).
-
Page 13: Electrical Section
Adapting the Built-in Gas Hob for Different Types of Gas Burners and Nozzle Specifications Thermal Nozzle Nozzle Nozzle Nozzle Nozzle Thermal Thermal Burner power 1/100 1/100 1/100 1/100 1/100 power power (kW) (mm) (mm) (mm) (mm) (mm) Auxiliary (Small) (A) 0.90 0.90 0.90... -
Page 14: Cut-Out Dimension
The technician will also have to verify that the cross-section of the electric cables on the power point match the appliance’s power rating. CUT-OUT DIMENSION CutOutDimension Model (L x W, mm) HHU60GASS 552x470mm... -
Page 15: Warranty Conditions
Units that are supplied through rental channels carry a 2-year warranty only, please consult with these channels or Hisense South Africa regarding the warranty period and conditions. The warranty does not apply to Hisense air conditioners, please contact our agents / original retaileror distributor for warranty conditions for air conditioners. - Page 16 3. Hisense is in support of the Consumer Protection Act 68 of 2008, and in the first 6 (six) months from date of purchase, for valid warranty claims, the product will may be repaired or exchanged by the Hisense, or credited by the dealer / store once approved by Hisense.
