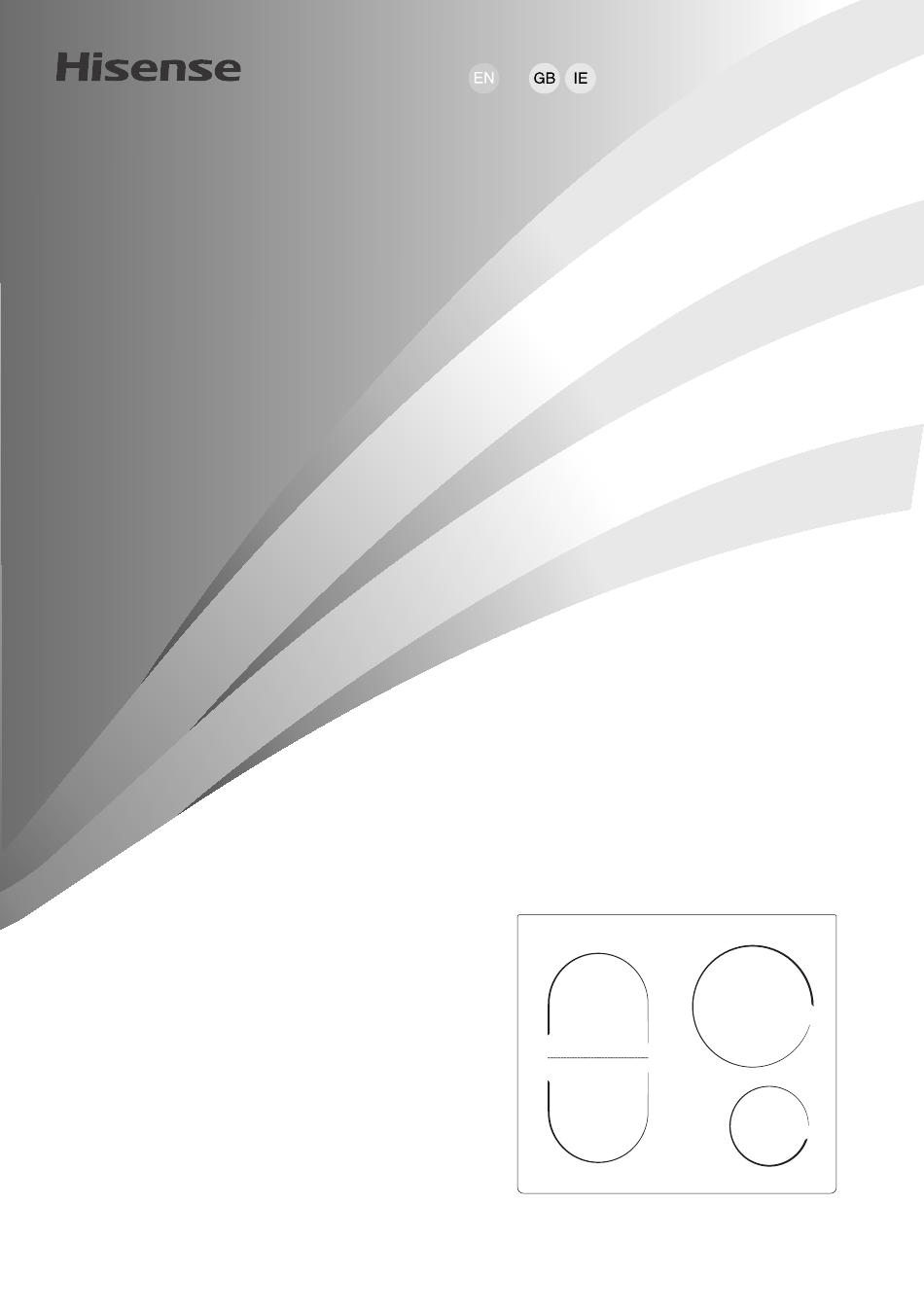

  • Page 1 DETAILED INSTRUCTIONS INDUCTION HOB...
  • Page 2 We thank you for your trust and the purchase of our appliance. This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible. Make sure you have received an undamaged appliance.

  • Page 3: Table Of Contents

    Contents Safety precautions ........................Carfully read the instructions and save them for future reference ..........Important notes and precautions ....................Appliance description ......................Technical data ........................... Before first use .......................... Hob ............................Operating the cooking hob ....................Control unit ..........................Switching on the hob ........................

  • Page 4: Safety Precautions

    Safety precautions Carfully read the instructions and save them for future reference This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or. similarly qualified persons in order to avoid a hazard (only for appliances supplied with connection cord). WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

  • Page 6: Important Notes And Precautions

    After use, switch off the hob element by its control and do not rely on the pan detector. Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed wiring must be made in accordance with the wiring rules. Important notes and precautions The appliance is intended for household use.
  • Page 7 Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination. Before connecting the appliance WARNING! Carefully read the instructions for use before connecting the appliance.

  • Page 8: Appliance Description

    Appliance description INFORMATION! Appliance functions and equipment depend on the model. 1. Induction cooking zone ø 210 mm 2. Induction cooking zone ø 180 mm 3. Induction cooking zone ø 145 mm 4. Cooking hob control module Technical data (depending on the model) A.

  • Page 9: Hob

    Glass ceramic cooking surface • The hob is resistant to temperature changes. • Do not use the glass ceramic hob if it is cracked or broken. If a sharp object falls on the hob, the hob may break. The consequences of such occurrence may be visible immediately or only after a while.
  • Page 10 • In induction cooking zones, heating is made possible by the induction coil installed under the glass ceramic surface. The coil induces a magnetic field which generates eddy currents in the bottom of a ferromagnetic pan, which in turn heats the pan. WARNING! If sugar or food with high sugar content is spilled over a hot class ceramic hob, immediately wipe the hob or remove the sugar with a scraper, even if the cooking zone is still hot.
  • Page 11 • Make sure there is enough liquid in the pressure cooker, or any other pot or pan. Due to overheating, using an empty pot on the cooking zone may result in damage to both the pot and the cooking zone. •...

  • Page 12: Operating The Cooking Hob

    Operating the cooking hob Control unit (depending on the model) A Hob on/off key A1 On/off/child lock indicator light B Lock/child lock C Defrosting/reheating key C1 Defrosting indicator light C2 Reheating indicator light C3 Pan position recognition with automatic bridging of cooking zones D Cooking zone controls E Timer functions F Stop/go/memory function...

  • Page 13: Switching On The Hob

    Switching on the hob • Place the cookware onto the cooking hob. • Touch the on/off key (A) to switch on the hob. • "0" will appear on all cooking zone displays. • A short beep will be emitted. INFORMATION! If no cooking zone is switched on in 10 seconds, the cooking hob will power off.

  • Page 14: Bridged Cooking Zone

    • The hob is switched on and a suitable pan is placed on one of the cooking zones. • Select the desired cooking zone that should be switched off ("0" appears on the display unit). • Press the relevant (H) or (I) key and hold it for approximately 3 seconds until you hear a short beep.

  • Page 15: Pan Position Recognition With Automatic Bridging Of Cooking Zones

    INFORMATION! The bridged cooking zone does not allow operation with a power boost; only power levels up to 9 are available. Deactivating the bridged cooking zone • Set the power level of the combined cooking zone to "0". The sign will disappear and heating will be switched off.

  • Page 16: Power Boost

    Cooking zone power can be adjusted by pressing the (H) or (I) keys for the respective cooking zone; then continue with the next cooking zone. During the first 10 seconds, automatic pan recognition can also be deactivated in user settings using the "Au"...

  • Page 17: Child Lock / Lock

    Child lock / lock The cooking hob can be locked against unintended activation. INFORMATION! The cooking hob has to be switched off or in the standby mode. Locking the cooking hob controls Touch the on/off key and hold it for 3 seconds. "L" will appear on the cooking zone power displays.

  • Page 18: Timer Functions

    Activating the reheating function Press the (A) key to switch on the cooking hob. Place the suitable pan on the selected cooking zone. Touch the (C) key twice; the indicator light (C2) will light up. Touch the (H) or (I) key for the selected cooking zone. The symbol "U"...

  • Page 19: Pausing The Cooking Process Stop&Go (Pause)

    • When the desired value is set, the countdown begins. The point (L1) indicating which cooking zone the timer function is set for will continue to flash. • After the set time has expired, acoustic signal will be activated and the cooking zone will be switched off.

  • Page 20: Switching Off The Cooking Zone

    The object should be removed, or the spilt liquid should be cleaned, from the sensor keys within 2 minutes; otherwise, the cooking hob will switch off automatically. The most recent settings can be restored with the memory function using the Stop&Go key. Switching off the cooking zone To switch off a cooking zone, use the relevant (H) key to set the value to "0".

  • Page 21: User Settings

    User settings Setting the acoustic signal, automatic features, and lock parameters You can adjust the volume of the acoustic signal, duration of acoustic alarm, total maximum appliance power, and automatic lock settings. To activate the parameter settings menu, press the pause key (F) when the appliance is switched off, and hold it for 3 seconds.
  • Page 22 Pan position recognition with automatic cooking zone bridging "Au" If the function of pan position recognition with automatic cooking zone bridging is deactivated in the user settings mode, then the appliance will always be operated manually (there will be no 10-second automatic pan recognition every time the appliance is switched on).

  • Page 23: Cleaning And Maintenance

    Cleaning and maintenance After each use, wait for the glass ceramic surface to cool down and clean it. Otherwise, all remaining impurities will burn onto the hot surface the next time you use the hob. For regular maintenance of the glass ceramic hob, use special care products that create a protective film on the surface to prevent the dirt from sticking onto it.

  • Page 24: Troubleshooting Table

    Troubleshooting table During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Any unauthorized repairs of the appliance may result in electric shock and short circuit hazard;...

  • Page 25: Noises During Induction Cooking

    Noises during induction cooking Noises and sounds Cause Solution Inductiongenerated Induction technology is based on the This is normal and it is not a operating noise properties of some metals under result of any malfunction. electromagnetic effect. It results in so-called eddy currents that force the molecules to oscillate.

  • Page 26: Installing A Built-In Hob

    Installing a built-in hob Installation procedure • The worktop has to be completely level. • Suitably protect the edges of the cut aperture. • Connect the cooking hob to the mains power supply (see instructions for the connection of the cooking hob to mains power supply).

  • Page 27: Air Vents In The Lower Kitchen Cabinet

    Air vents in the lower kitchen cabinet INFORMATION! Normal operation of the induction cooking hob electronic components requires sufficient air circulation. Lower cabinet with a drawer • There must be an opening with a height of no less than 140 mm along the entire width of the cabinet in the cabinet rear wall.

  • Page 28: Flush-Mount Installation Into The Worktop

    Flush-mount installation into the worktop Appliances without faceted edges or decorative frames, are suitable for flush mounting. Installing the appliance The appliance may only be installed into a temperature- and water-resistant countertop, such as a countertop made of (natural) stone (marble, granite), or solid wood (the edges along the cut-out have to be sealed).
  • Page 29 First, feed the power cord through the cutout. Place the appliance over the centre of the cutout. Connect the appliance to the power mains (see instructions for connecting the appliance). Before sealing the appliance, test its operation. Seal the slot between the appliance and the countertop using a silicone sealant.
  • Page 30 Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in the countertop, the slot is adjustable (min.2 mm). Ceramic, wooden or glass countertop 1. Countertop 2. Appliance 3. Slot 4. Wooden frame, thickness 16 mm Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cut-out in the countertop, the slot is adjustable (min.

  • Page 31: Fitting The Foam Gasket

    Fitting the foam gasket INFORMATION! Some appliances come with the gasket already fitted! Before installing the appliance into a kitchen worktop, attach the foam gasket supplied with the appliance to the bottom side of the glass ceramic hob. Remove the protective film from the gasket. Attach the gasket to the bottom side of the glass (2 3 mm away from the edge).

  • Page 32: Connecting The Cooking Hob To The Power Mains

    Connecting the cooking hob to the power mains • Power mains protection must conform to the relevant regulations. • Before connecting the appliance, make sure the voltage specified on the rating plate conforms to the voltage of the power mains. •...
  • Page 33 Connection diagram Single phase connection (32 A) • Single-phase connection (1 1N, 220 240 V~ /50 60 Hz): Voltage between line and neutral conductor is 220 240 V~. Install a jumper between terminals 1 and 2, and between terminals 4 and 5.
  • Page 34 Two-phase connection • If your electric mains have 2 line conductors and 1 neutral conductor, connect the appliance as shown in Diagram B. • If your electric mains have 2 line conductors and 2 neutral conductors, connect the appliance as shown in Diagram C.

  • Page 35: Disposal

    Disposal Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.
  • Page 36 875782-a7...
