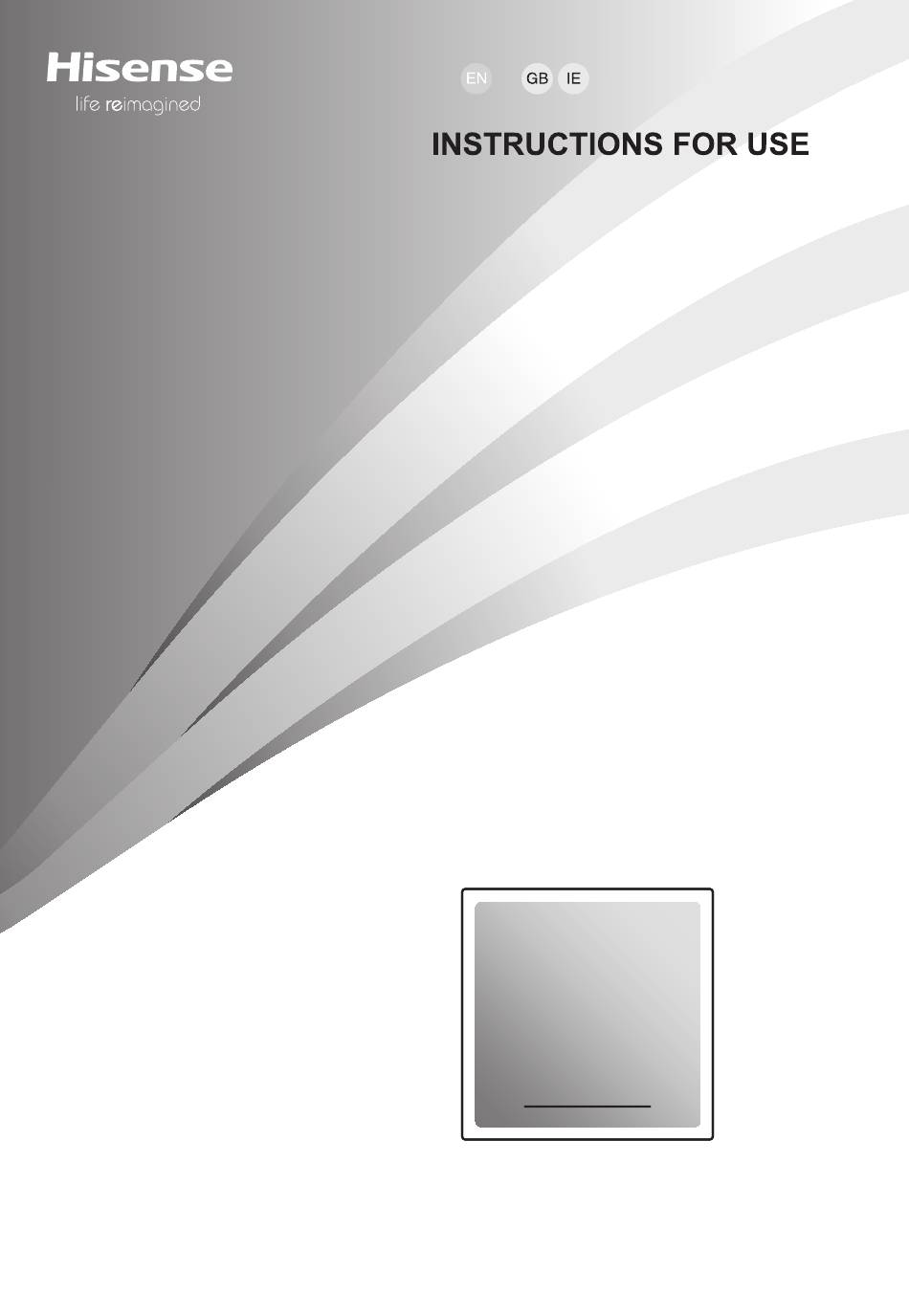

- Page 1 Induction hob HI8532BSCE...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ..............3 SAFETY WARNINGS ..............4 2.1. Installation ................4 2.2. Operation and maintenance ............5 PRODUCT OVERVIEW ..............8 3.1. Top View ................8 3.2. Control Panel ................8 OPERATION INSTRUCTIONS ............9 4.1. Touch Controls ................ 9 4.2. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. -
Page 4: Safety Warnings
2. SAFETY WARNINGS Your safety is important to us. Please read this information before using your cooktop. 2.1. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •... -
Page 5: Operation And Maintenance
• Metallic objects such as knives, forks, spoons, and lids should not be placed on the hob surface since they can get hot. • A steam cleaner is not to be used. • Do not use a steam cleaner to clean your cooktop. •... - Page 6 Cut Hazard • The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children. • Failure to use caution could result in injury or cuts. •...
- Page 7 For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. SPECIFICATIONS Cooking Hob HI8532BSCE Cooking Zones 5 Zones Supply Voltage 220-240V~ 50Hz or 60Hz Installed Electric Power 7400W Product Size D×W×H(mm)
-
Page 8: Product Overview
3. PRODUCT OVERVIEW 3.1. Top View 1. Zone: 2200 / 3300 W (P) Zone: 1800 / 2800 W (P) 2. Zone: 2200 / 3300 W (P) Zone: 2200 / 3300 W (P) 3. Zone: 3300 / 3700 W (P) Glass plate 4. -
Page 9: Operation Instructions
Working Theory Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by elec- tromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. - Page 10 • If you do not have a magnet: Put some water in the pan you want to check. does not flash in the display and the water is heating, the pan is suitable. Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.
-
Page 11: How To Use
4.3. How to Use Start Cooking • Touch the ON/OFF control for one second. After power on, the buzzer beeps once, all displays show “--”, indicating that the induction hob has entered the state of standby mode. • Place a suitable pan on the cooking zone that you wish to use. −... - Page 12 Finish Cooking 1. Touching the cooking zone selection control that you wish to switch off. 2. Turn the cooking zone off by touching the slider to “0”. Make sure the display shows “0”. 3. Turn the whole cooktop off by touching the ON/OFF control. 4.
- Page 13 NOTE • The function can work in any cooking zone. • The cooking zone returns to its original setting after 10 minutes. • If the original heat setting equals 0, it will return to 15 after 10 minutes. Flexible Area •...
- Page 14 Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls are disabled. To lock the controls The timer indicator displays “Lo” and the Touch and hold the Pause control for a while.
- Page 15 d. When cooking timer expires, the corresponding cooking zone will be switched off automatically. Other cooking zone will keep operating if they are turned on previously. Set more zones: • The steps for setting more zones are like the steps of setting one zone. •...
- Page 16 Power Management Function • It is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges. • Induction hobs can limit themselves automatically in order to work at lower power level, to avoid the risk of overloading. •...
- Page 17 To switch to another level In the c3 menu (Power Management mode), different power limits for the entire machine can be selected by short pressing the LF-Boost button. The timer display will display the corresponding thousand and hundred bits (25/35/45/55/65/74) of the entire hob power. There are 6 power levels, from “25”...
-
Page 18: Quick Start Guide
5. QUICK START GUIDE Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Power Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips •... - Page 19 Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. Heat setting Suitability •...
-
Page 20: Product Installation
6. PRODUCT INSTALLATION Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate. - Page 21 Make sure the induction hob is well ventilated and that air inlet and outlet are not blocked. To avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 15mm from the bottom of the hob.
- Page 22 Install the Bracket Before installation, please install the bracket into the card slots on the four sides of the induction cooker Install 2 brackets on each side, totaling 8 brackets. CAUTIONS The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.
- Page 23 • If the cable is damaged or to be replaced, the operation must be carried out the by after- sale agent with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains an omni polar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
- Page 24 Flush-mount Installation into The Worktop Appliances without faceted edges or decorative frames, are suitable for flush mounting. Installing the appliance The appliance may only be installed into a temperature- and water-resistant countertop, such as a countertop made of (natural) stone (marble, granite), or solid wood (the edges along the cut-out have to be sealed).
- Page 25 Stone countertop 1. Countertop 2. Appliance 3. Slot Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cutout in the countertop, the slot is adjustable (min.2 mm). Ceramic, wooden, or glass countertop 1. Countertop 2.
- Page 26 WARNING! If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should be at least 40 mm.
-
Page 27: Cleaning And Maintenance
7. CLEANING AND MAINTENANCE What? How? Important! • When the power to the cooktop is switched of, there will be no ‘hot surface’ indication, but the cooking Switch the power to the cooktop of. zone may still be hot! Take extreme Everyday soiling on Apply a cooktop cleaner while the care. -
Page 28: Troubleshooting
8. TROUBLESHOOTING Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below to save your time and money that may cost for calling to the service center. -
Page 29: Failure Display And Inspection
Failure Display and Inspection The induction hob is equipped with a self-diagnostic function. With this test the technician can check the function of several components without disassembling or dismounting the hob from the working surface. (1) Troubleshooting Problem Possible causes What to do E1, E2, E7 Temperature sensor failure... - Page 30 (3) Specific Failure & Solution Failure Problem Solution A Solution B Check to see if plug is No power supplied. secured tightly in outlet and that outlet is working. The accessorial power board and the Check the connection. display board The display does not connected failure.
-
Page 31: Disposal And Recycling
9. DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). The symbol on the product, or in its packaging, indicates that this product may not be treated as household wasted, Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and... - Page 32 Information for domestic electric hobs Symbol Value Unit HI8532BSCE/ Model identification/Type MC-8V74E2H395 Type of hob Built-in induction hob 1 cooking area Number of cooking zones and/or areas 3 cooking zones Heating technology (induction cooking Induction cooking zones zones and cooking areas, radiant and cooking area.
