OMS-1 Oil Separator Alarm Device
Installation and Operating Instructions
2.2
OMS sensor
2.3
Cable joint
Copyright © 2019 Labkotec Oy
OMS sensor should be installed as described in figure 3.
The sensor gives an alarm when the upper electrode is in oil.
Please check the correct installation depth also from the instructions of
the oil separator.

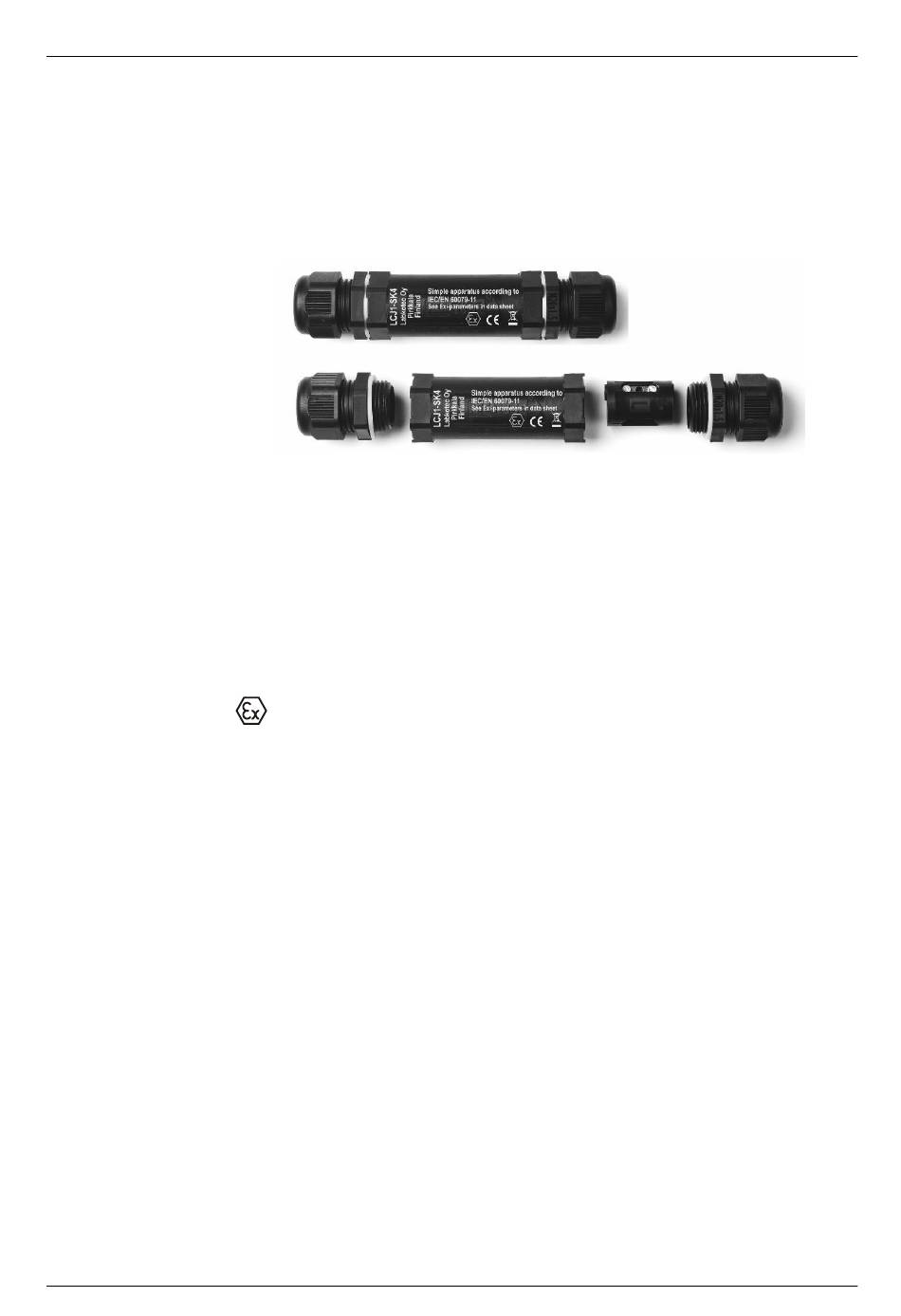

Fig. 4 Cable joint
Connections of the sensor cable inside the cable joint are explained in
figure 3. If shielded cable is used cable shields and possible excess
wires need to be connected to the same point in galvanic contact.
Please make sure, that the sensor and cable between OMS-1 control
unit and the sensor do not exceed the maximum allowed electrical
parameters – see chapter 7 Technical data.
IP rating of the cable joint is IP68. Make sure, that the cable joint is
closed properly.
Notice in cabling: Risk of electrostatic charging!
If the sensor cable must be extended and there is a need for
equipotential grounding, it should be done with the junction box LJB2.
The cabling between the OMS-1 control unit and the junction box
should be done with a shielded twisted pair instrument cable. Maximum
cable length is 100 m.
5/13
We reserve the right for changes without notice
D15530_E-5
