OMS-1 Oil Separator Alarm Device
Installation and Operating Instructions
2
INSTALLATION
2.1
OMS-1 control unit
Copyright © 2019 Labkotec Oy
OMS-1 control unit can be wall-mounted. The mounting holes are
located in the base plate of the enclosure, beneath the mounting holes
of the front cover.
The connectors of the external conductors are isolated by separating
plate. The plate must not be removed.
The cover of the enclosure must be tightened so, that the edges touch
the base frame. Only then does the push button function properly and
the enclosure is tight.
Before installation, please read the safety instructions in chapter 6!

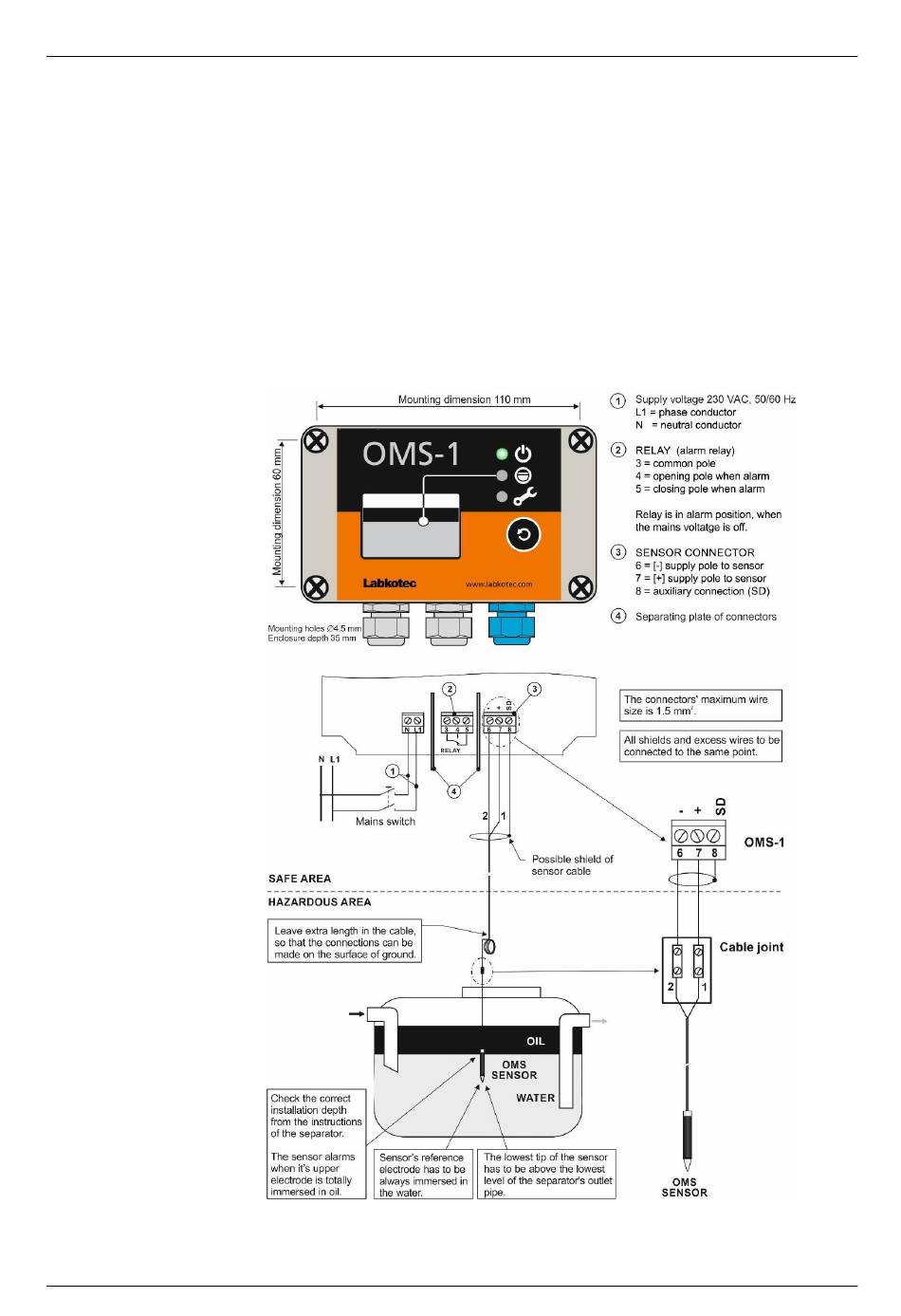

Figure 3. OMS-1 alarm device installation.
4/13
We reserve the right for changes without notice
D15530_E-5
