Intelix DIGI-HD-UHR2-R Installation Manual

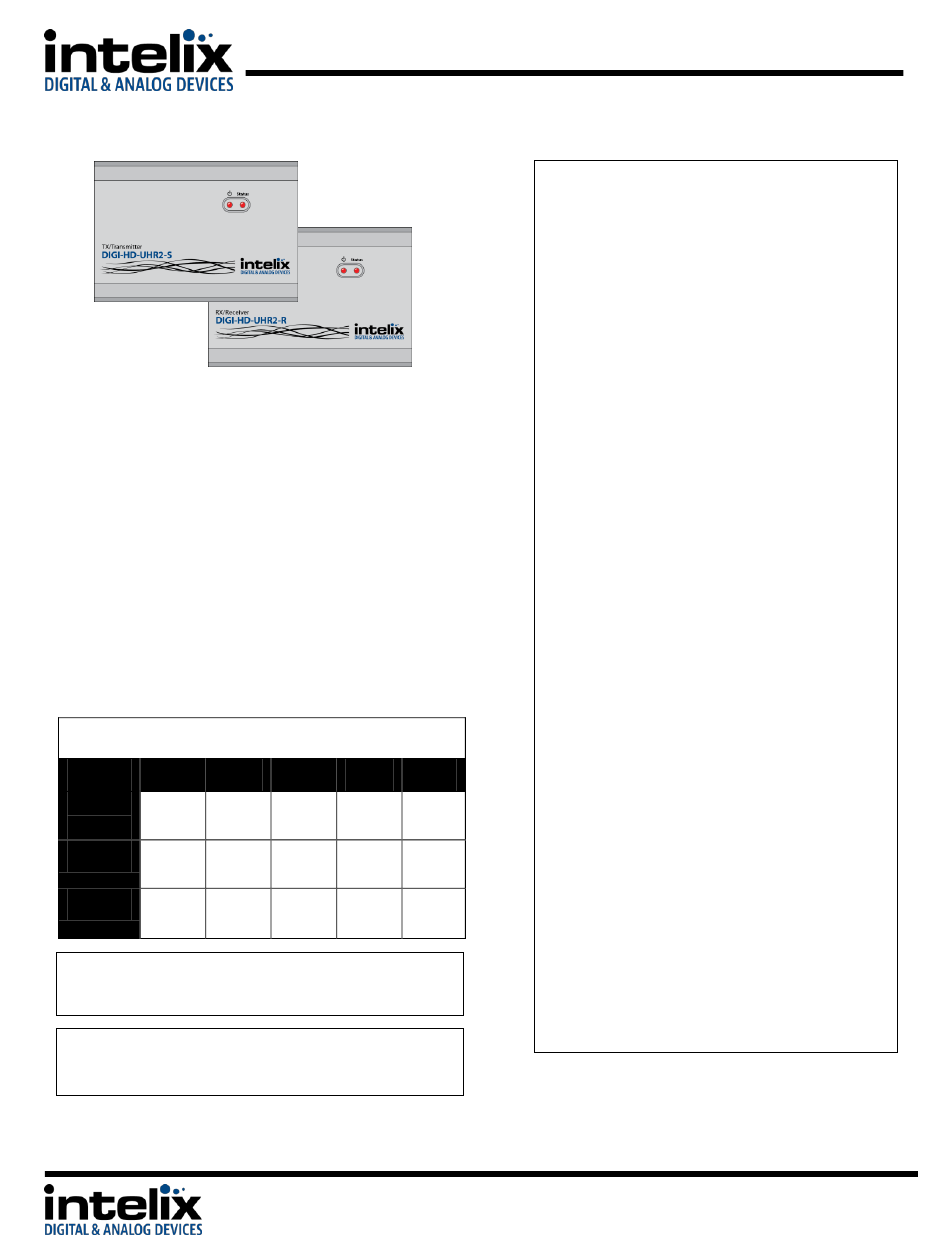

DIGI-HD-UHR2 Installation Manual
The Intelix DIGI-HD-UHR2 transmits HDMI up to 300' over a
single twisted pair cable. In environments with high
electromagnetic interference (EMI), a shielded twisted pair
cable should be used.
Built-in HDshāk® technology provides dynamic HDMI,
EDID/DDC and HDCP mode
performance and image quality. Plus, onboard HDMI
amplification and buffering allows multiple extenders to be
daisy-chained for greater distances.
The DIGI-HD-UHR2 features electrostatic discharge (ESD)
protection circuitry which safegaurds the HDMI circuit against
static electricity and other destructive stray voltage.
Design with Intelix and Design with Intelligence.
Maximum Recommended Distances
1080p 1080i
Cat 6a 150' 300'
(shielded)
Cat 6 110' 220'
Cat 5e 100' 200'
Caution: Do not attempt to disassemble or alter the extender
housing. There are no user-serviceable parts inside the unit.
Doing so will void your warranty.
Caution: To minimize the possibility of equipment damage
from electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
selection, guaranteeing
720p 576i/p 480i/p
300' 300' 300'
220' 220' 220'
200' 200' 200'
8001 Terrace Ave.
Suite #201
Middleton, WI 53562
Instructions
1. Turn off power and
audio/video equipment by following the
manufacturer's instructions.
2. Make certain that outlets and cross connects
to which you will connect the DIGI-HD-UHR2
are configured properly and labeled correctly
to identify the point-to-point circuit.
3. Verify the desired twisted pairs are not being
used for other LAN or telephony equipment.
4. Verify that the source and destination
equipment work when directly connected
with HDMI cables. Be sure to test both HDMI
cables required for system installation.
5. Connect the DIGI-HD-UHR2 transmitter to the
HDMI output of the video source. Do not
connect the 5V power supply.
6. Connect the DIGI-HD-UHR2 receiver to the
HDMI input of the receiving device at the
remote end. Do not connect the 5V power
supply.
7. Complete the connection between the
transmit and receive extenders using twisted
pair cable. Ensure the cable conforms to EIA
568B crimp standards and there are no split
pairs or taps.
8. Connect the 5V power supply to the DIGI-HD-
UHR2 receiver.
9. Connect the 5V power supply to the DIGI-HD-
UHR2 transmitter. Power-on the video
equipment.
10. Verify picture quality.
11. If necessary, adjust the DIP switches on the
transmit and receive extenders to select
modes of operation.
12. If necessary, copy the EDID information from
your display for improved performance.
disconnect the
