Intelix DIGI-HD-UHR2
Installation Manual
Introduction

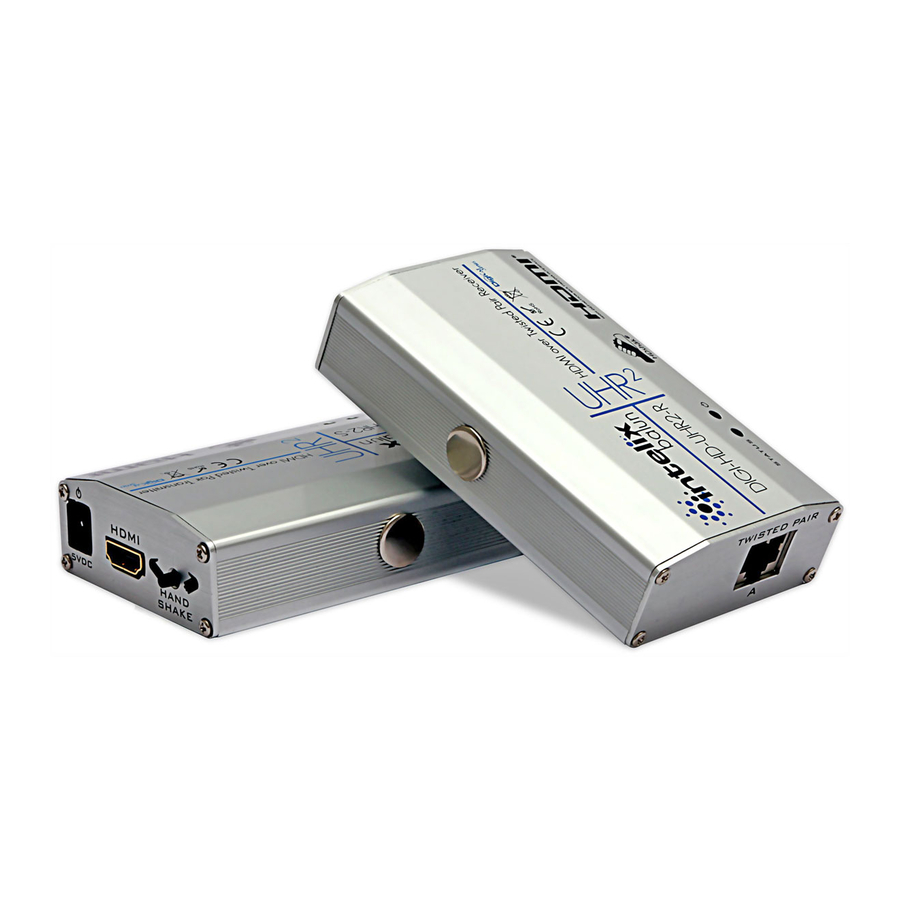

The Intelix DIGI-HD-UHR2 transmits HDMI up to 300' over a single twisted
pair cable. In environments with high electromagnetic interference (EMI), a
shielded twisted pair cable should be used.
Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and
HDCP mode selection, gauranteeing performance and image quality. Plus,
onboard HDMI amplification and buffering allows multiple extenders to be
daisy-chained for greater distances.
The DIGI-HD-UHR2 features electrostatic discharge (ESD) protection
circuitry which safegaurds the HDMI circuit against static electricity and other
destructive stray voltage.
Advertisement
Related Manuals for Intelix DIGI-HD-UHR2
Summary of Contents for Intelix DIGI-HD-UHR2

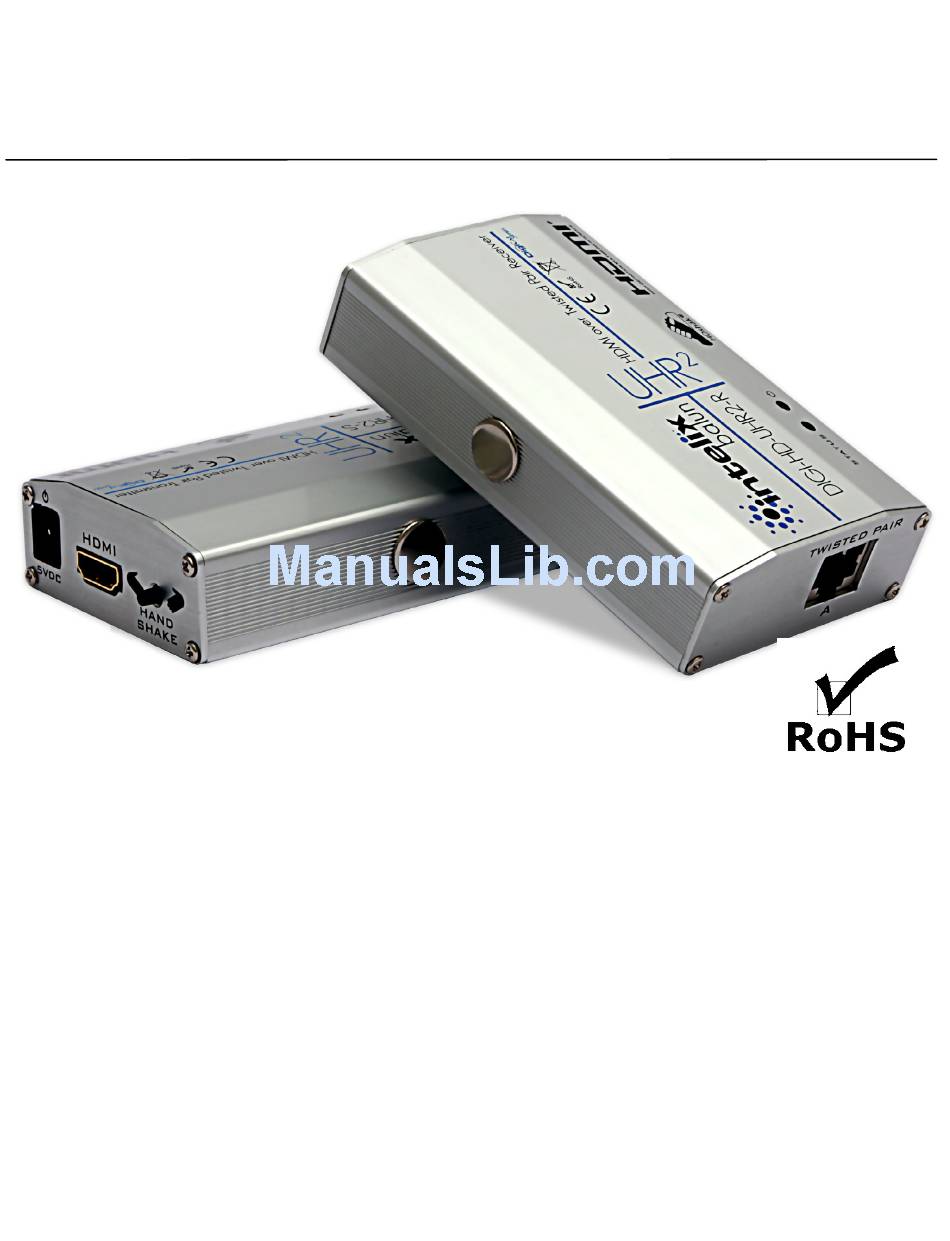

- Page 1 Intelix DIGI-HD-UHR2 Installation Manual Introduction The Intelix DIGI-HD-UHR2 transmits HDMI up to 300’ over a single twisted pair cable. In environments with high electromagnetic interference (EMI), a shielded twisted pair cable should be used. Built-in HDshāk® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, gauranteeing performance and image quality.
-
Page 2: Installation
4. Verify that the source and destination equipment work when directly connected with HDMI cables. Be sure to test both HDMI cables required for system installation. 5. Connect the DIGI-HD-UHR2 send balun to the HDMI output of the video source. Do not connect the 5V power supply. - Page 3 11. Connect the 5V power supply to the DIGI-HD-UHR2 receive balun Power-on the video equipment. Verify picture quality. If necessary, toggle the Hand Shake button to sync the source and destination devices. If necessary, adjust the dip switches on the send and receive baluns to select modes of operation.
- Page 4 DIGI-HD-UHR2-S Transmitter Dip Switch Positions Position 1 Position 2 Mode Read and store EDID data from displays Turn on Dolby TrueHD and DTS-HD Turn on stereo audio No function DIGI-HD-UHR2-R Receiver Switch Positions Position 1 Position 2 Mode Extended cable...
-
Page 5: Troubleshooting
Troubleshooting Symptom Probable Causes Possible Solutions No signal Incorrect cable Verify that both ends of the twisted pair termination cables use 568B crimp pattern. Status LED is off No signal Insufficient power Verify the power supplies are connected to both the send and receive baluns. Verify the power LEDs on both the send and receive units are brightly illuminated. -
Page 6: Technical Specifications
The Intelix DIGI-HD-UHR2 conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications. The Intelix DIGI-HD-UHR2 passes HDCP signals and does not manipulate them in any way. - Page 7 Thank you for your purchase. www.intelix.com | intelix@intelix.com | 608-831-0880 phone | 608-831-1833 fax...
