Intelix DIGI-HDMI-HR-R

Installation Manual

Introduction

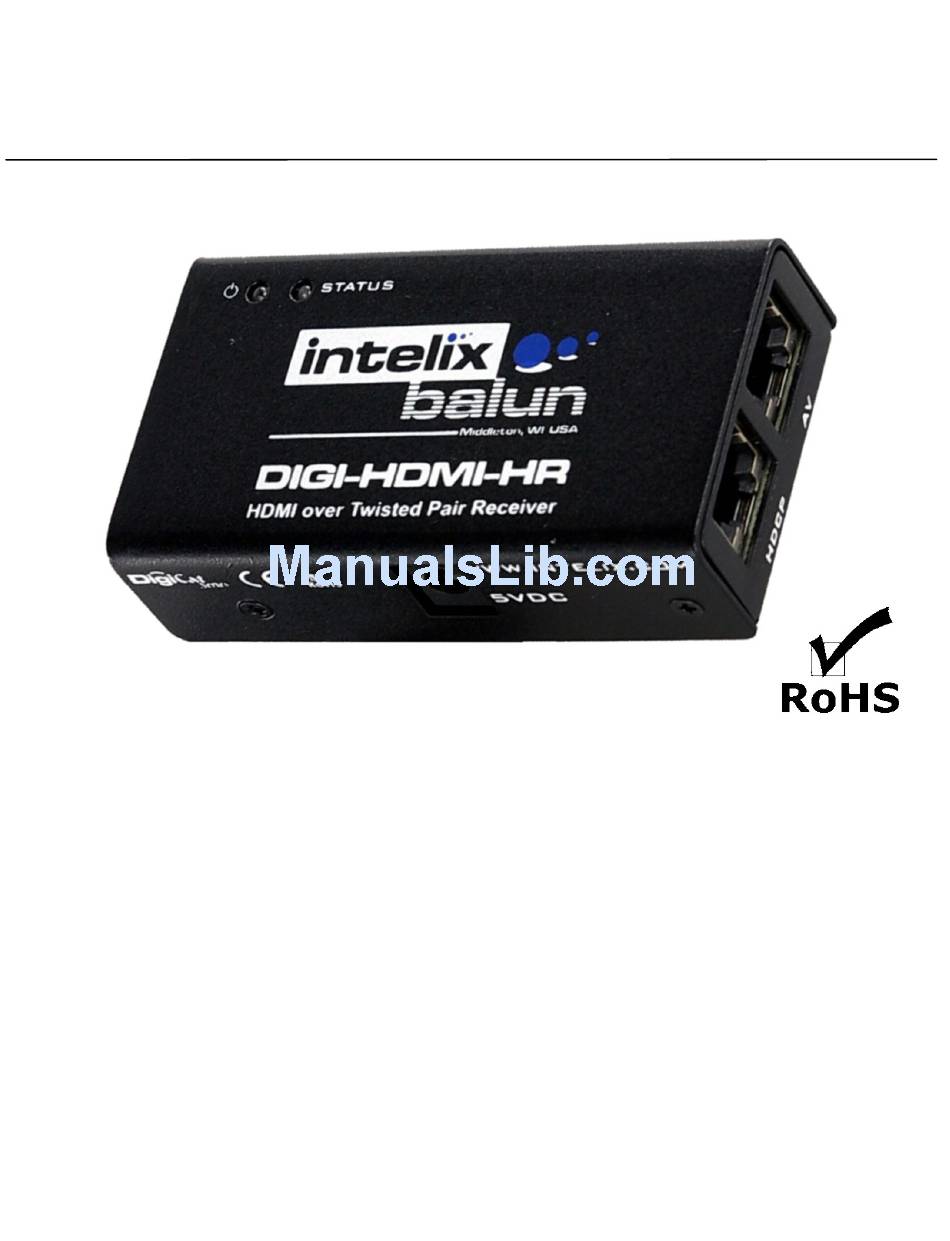

Designed for use with Intelix HDMI twisted pair matrices, the active Intelix
DIGI-HDMI-HR-R balun transmits an HDMI (high-definition multimedia
interface) audio/video signal up to 150 feet over inexpensive twisted pair
cabling, such as Cat 5e or Cat 6. The DIGI-HDMI-HR-R supports standard
HDTV resolutions and is HDCP compliant.
Two individual runs of twisted pair cable are required when installing the
DIGI-HDMI-HR-R balun. The unit is fully compatible with Cat 5e and Cat 6.
In environments susceptible to high electromagnetic interference, two shielded
twisted pair cables should be used.
The Intelix DIGI-HDMI-HR-R includes one receive balun, one power supply,
and one mounting bracket.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIGI-HDMI-HR-R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelix DIGI-HDMI-HR-R

Summary of Contents for Intelix DIGI-HDMI-HR-R

  • Page 1: Installation Manual

    HDTV resolutions and is HDCP compliant. Two individual runs of twisted pair cable are required when installing the DIGI-HDMI-HR-R balun. The unit is fully compatible with Cat 5e and Cat 6. In environments susceptible to high electromagnetic interference, two shielded twisted pair cables should be used.
  • Page 2 Do not connect the 5V power supply. 6. Connect the opposite ends of the twisted pair cables to a compatible Intelix HDMI twisted pair matrix. Ensure the cable conforms to EIA 568B crimp standards and there are no split pairs or taps.
  • Page 3 Troubleshooting Symptom Probable Causes Possible Solutions No signal Incorrect cable Verify that both ends of the twisted pair termination cables use 568B crimp pattern. Status LED is off No signal Incorrect cable Swap the twisted pair cables in the AV and connection HDCP RJ45 inputs on the receive balun.

  • Page 4: Ordering Information

    DIGI-HDMI-4X4 DIGI-HDMI-4X2 Intelix Part Number DIGI-HDMI-HR-R Ordering Information DIGI-HDMI-HR-R package includes one receive unit, one power supply, and one mounting bracket The Intelix DIGI-HDMI-HR-R conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications.
