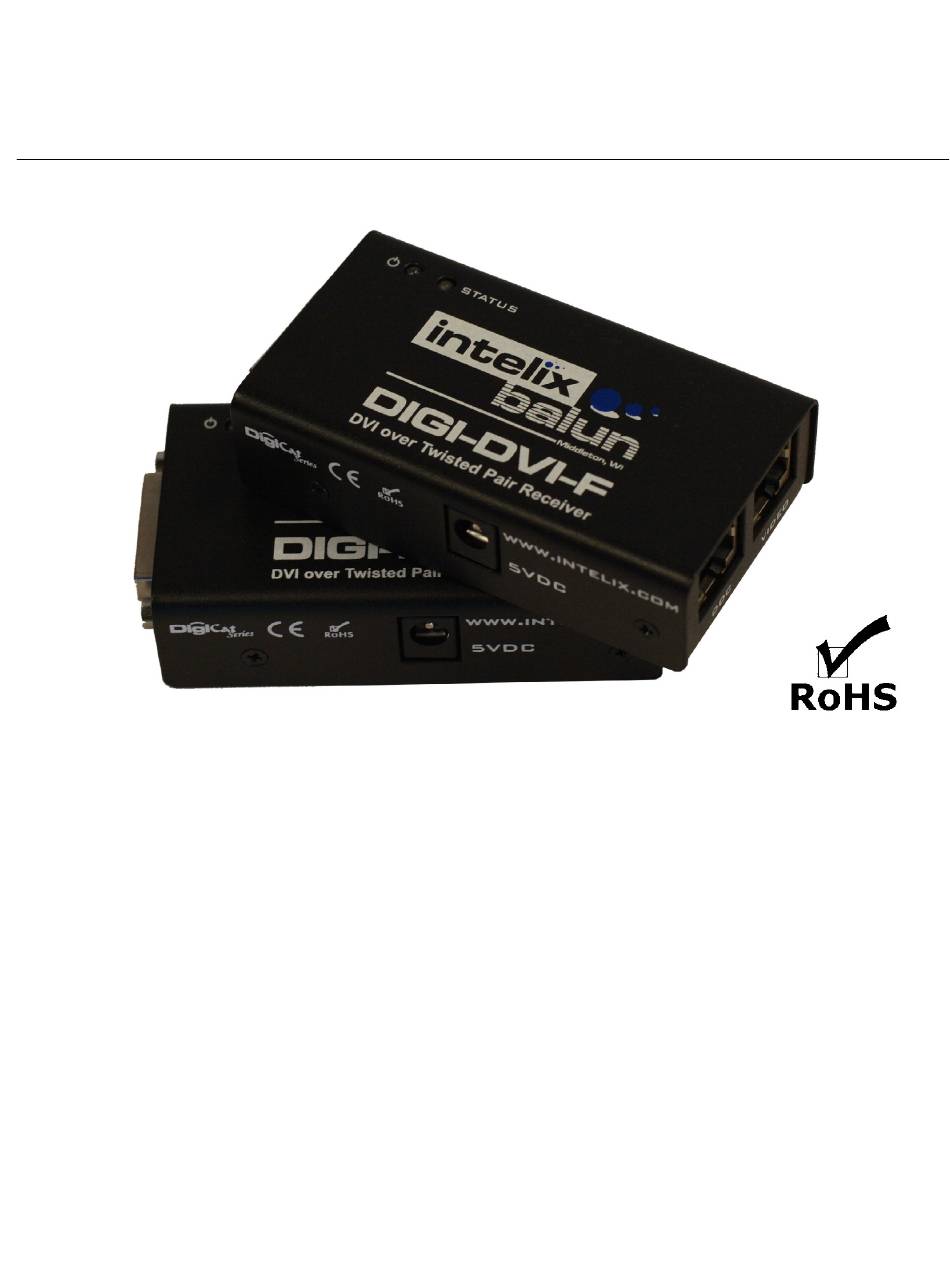

Intelix DIGI-DVI-F

Installation Manual

Introduction

The active Intelix DIGI-DVI-F balun allows a DVI (digital visual interface)

video signal to be transmitted up to 150 feet via inexpensive twisted pair

cabling, such as Cat 5e or Cat 6. The DIGI-DVI-F supports standard HDTV

and VESA resolutions, as well as the DDWG standard for DVI compliant

monitors. In addition, the unit is Mac compatible and HDCP compliant.

Two individual runs of twisted pair cable are required when installing the

DIGI-DVI-F balun. Two runs of Cat 5e are required for 480i, 480p, 720p, and

1080i video. In environments susceptible to high electromagnetic interference,

two shielded twisted pair cables should be used.

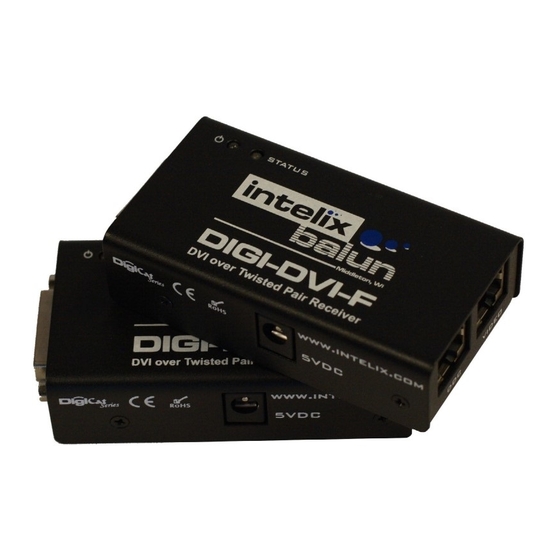

The Intelix DIGI-DVI-F includes a send balun, receive balun, and one power

supply. The system is powered on either the send or receive end.

Need help?

Do you have a question about the DIGI-DVI-F and is the answer not in the manual?

Page 1 In addition, the unit is Mac compatible and HDCP compliant. Two individual runs of twisted pair cable are required when installing the DIGI-DVI-F balun. Two runs of Cat 5e are required for 480i, 480p, 720p, and 1080i video. In environments susceptible to high electromagnetic interference, two shielded twisted pair cables should be used.
Page 2: Installation
This includes signal extenders, splitters and switches. 2. Connect the DIGI-DVI-F send balun to the DVI output of the video source. 3. Connect the DIGI-DVI-F receive balun to the DVI input of the receiving device at the remote end.
Page 3 Symptom Probable Causes Possible Solutions No video No continuity in video Verify cable continuity between pairs of link baluns. Verify the max distance has not been exceeded. No video Power off Check power supplies of video equipment. No signal Improper connection or Check that baluns are connected to swapped pairs correct video inputs and outputs.
Page 4: Technical Specifications
The Intelix DIGI-DVI-F conforms to DVI-D and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications. The Intelix DIGI-DVI-F passes HDCP signals and does not manipulate them in any way.
