DIGI‐HD‐UHR2 Installation Manual

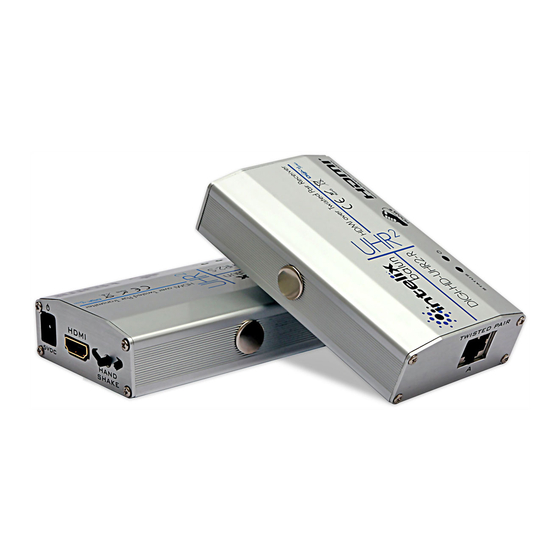

The Intelix DIGI‐HD‐UHR2 transmits HDMI up to 300' over a
single twisted pair cable. In environments with high
electromagnetic interference (EMI), a shielded twisted pair
cable should be used.
Built‐in HDshāk® technology provides dynamic HDMI,
EDID/DDC and HDCP mode selection, guaranteeing
performance and image quality. Plus, onboard HDMI
amplification and buffering allows multiple extenders to be
daisy‐chained for greater distances.
The DIGI‐HD‐UHR2 features electrostatic discharge (ESD)
protection circuitry which safegaurds the HDMI circuit against
static electricity and other destructive stray voltage.
Design with Intelix and Design with Intelligence.
Maximum Recommended Distances
1080p 1080i
Cat 6 150'
(low‐skew)
Cat 6 110'
Cat 5e 100'
Caution: Do not attempt to disassemble or alter the extender
housing. There are no user-serviceable parts inside the unit.
Doing so will void your warranty.
Caution: To minimize the possibility of equipment damage
from electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
Caution: Do not connect
telecommunication outlet wired to unrelated equipment.
Doing so may damage the unit or any connected equipment.
Ensure all connected twisted pair cabling is straight-through
720p 576i/p
300' 300' 300'
220' 220' 220'
200' 200' 200'
the extender
1. Turn off power and disconnect the
2. Make certain that outlets and cross connects
3. Verify the desired twisted pairs are not being
4. Verify that the source and destination
5. Connect the DIGI‐HD‐UHR2 transmitter to the
6. Connect the DIGI‐HD‐UHR2 receiver to the
7. Complete the connection between the
480i/p
350'
8. Connect the 5V power supply to the DIGI‐HD‐
220'
9. Connect the 5V power supply to the DIGI‐HD‐
200'
10. Verify picture quality.
11. If necessary, adjust the DIP switches on the
12. If necessary, copy the EDID information from
to a
2222 Pleasant View Road
Suite #1
Middleton, WI 53562
Instructions
audio/video equipment by following the
manufacturer's instructions.
to which you will connect the DIGI‐HD‐UHR2
are configured properly and labeled correctly
to identify the point‐to‐point circuit.
used for other LAN or telephony equipment.
equipment work when directly connected
with HDMI cables. Be sure to test both HDMI
cables required for system installation.
HDMI output of the video source. Do not
connect the 5V power supply.
HDMI input of the receiving device at the
remote end. Do not connect the 5V power
supply.
transmit and receive extenders using two
runs of twisted pair cable. Ensure the cable
conforms to EIA 568B crimp standards and
there are no split pairs or taps.
UHR2 receiver.
UHR2 transmitter. Power‐on the video
equipment.
transmit and receive extenders to select
modes of operation.
your device for improved performance.
