Intelix SKYPLAY-MX Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

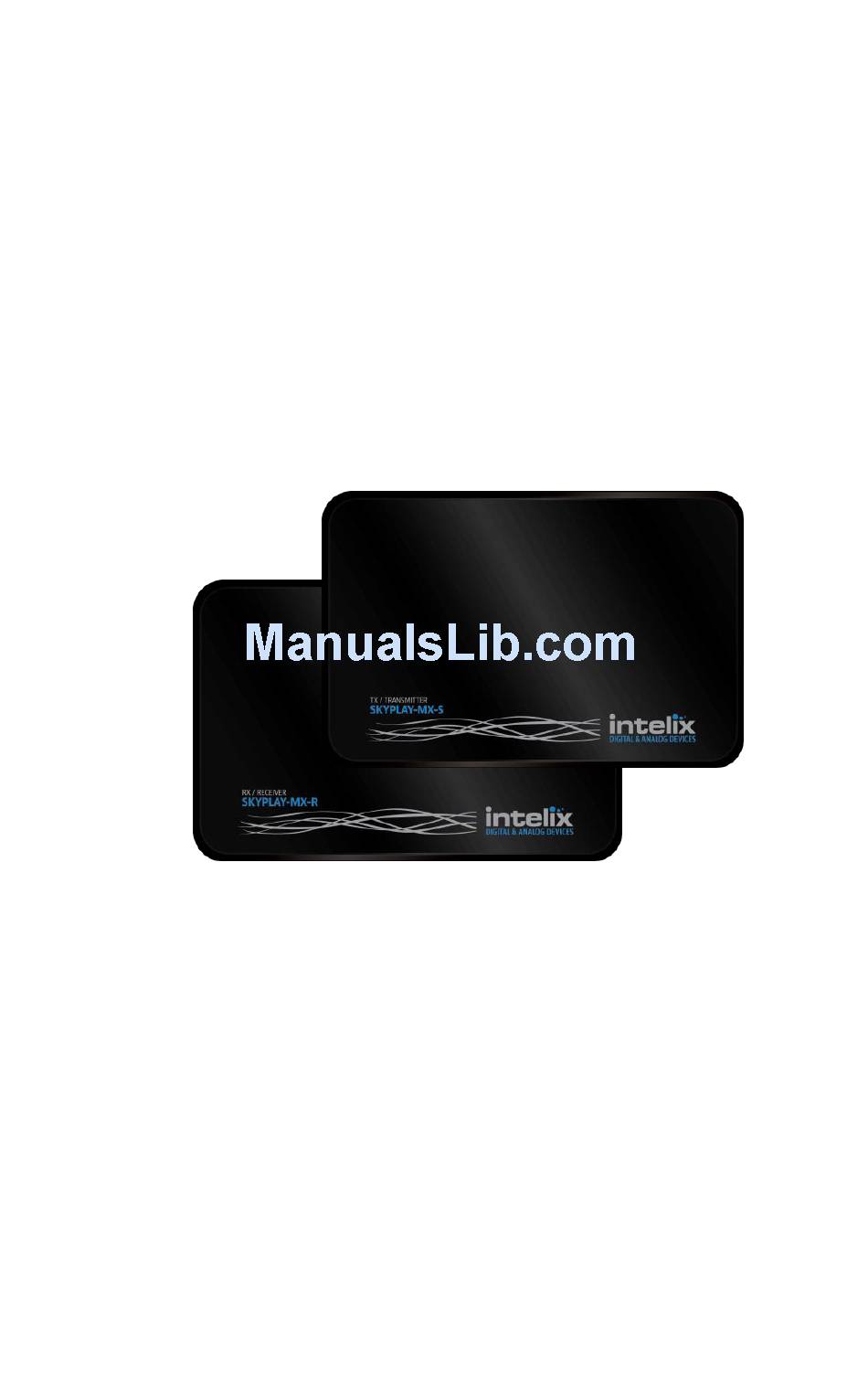

SKYPLAY-MX Installation
and Operation Guide
Rev 130412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKYPLAY-MX and is the answer not in the manual?

Questions and answers

Related Manuals for Intelix SKYPLAY-MX

Summary of Contents for Intelix SKYPLAY-MX

  • Page 1 SKYPLAY-MX Installation and Operation Guide Rev 130412...

  • Page 2: Important Safety Instructions

    Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.  Use only accessories specified or recommended by Intelix.  Explanation of graphical symbols: Lightning bolt/flash symbol: the lightning bolt/flash...
  • Page 3 Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions.  Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.

  • Page 4: Table Of Contents

    SKYPLAY-MX Installation Guide Table of Contents Important Safety Instructions ......... 2 Overview ................. 6 Package Contents SKYPLAY-MX-S ....... 7 Package Contents SKYPLAY-MX-R ....... 7 SKYPLAY-MX-S ............. 8 SKYPLAY-MX-R............. 9 IR Remote ..............10 Installation Instructions ..........11 Shelf Mounting Instructions........11 Setup and Pairing ............
  • Page 5 SKYPLAY-MX Installation Guide FCC Statement .............. 24 FCC Radiation Exposure Statement ......25 Caution Statement ............25...

  • Page 6: Overview

    SKYPLAY-MX Installation Guide Overview The Intelix SKYPLAY-MX improves upon the existing wireless HDMI by ensuring source to destination compatibility with full HDCP-compliance. The SKYPLAY- MX wireless distribution is designed specifically for professional grade audio-visual installations. The SKYPLAY-MX distributes HDMI high-definition audio and video up to 100 feet in both point-to-point point- to-many, and many-to-point configurations.

  • Page 7: Package Contents Skyplay-Mx-S

    SKYPLAY-MX Installation Guide Package Contents SKYPLAY-MX-S Please verify the following items are in the shipping box prior to installation of the SKYPLAY-MX-S. 1 ea SKYPLAY-MX-S Wireless HDMI Transmitter 1 ea IR Emitter 1 ea Desktop Stand 1 ea HDMI Cable...

  • Page 8: Skyplay-Mx-S

    SKYPLAY-MX Installation Guide SKYPLAY-MX-S Pairing Status Button Indicators IR Output HDMI Input Input Pairing Button – Recessed button for use when pairing a Transmitter and Receiver. Status Indicator “Network” – LED will be on when successfully connected. LED will be blinking during pairing. LED will flash rapidly indicating an error has occurred.

  • Page 9: Skyplay-Mx-R

    SKYPLAY-MX Installation Guide SKYPLAY-MX-R Pairing Receiver Status Button Window Indicators USB Port HDMI (Firmware Output Update) Pairing Button – Recessed button for use when pairing a Transmitter and Receiver. IR Receiver Window – IR receiver for sending IR commands to OSD or to remote source.

  • Page 10: Ir Remote

    SKYPLAY-MX Installation Guide IR Remote The included IR remote performs all of the pairing and source selection operations of the SKYPLAY-MX wireless HD distribution system.

  • Page 11: Installation Instructions

    SKYPLAY-MX Installation Guide Installation Instructions Shelf Mounting Instructions Mount the SKYPLAY-MX in the desktop stand with the vent holes down. Proper orientation will result in the power cable being down near the base and will ensure proper passive ventilation. Improper mounting can cause the device to overheat and temporarily malfunction.

  • Page 12: Setup And Pairing

    3. Connect an HDMI cable from the SKYPLAY-MX-R receiver to the HD display. 4. Power on both the transmitter and receiver. 5. Point the IR remote at the SKYPLAY-MX-R receiver and Press the “Add” button. 6. The On-Screen Display shows “Please Activate the Registration on Transmitter Unit”.

  • Page 13: Point-To-Many

    SKYPLAY-MX Installation Guide Point-to-Many The SKYPLAY-MX-S supports the ability to connect up to 4 receivers at a time. In order to setup point-to-many installations it is easiest to pair one receiver to the transmitter at a time. 1. Mount the transmitter and all of the receivers in their desktop stand for proper ventilation.

  • Page 14: Multiple Transmitters On A Receiver (Many-To-Point)

    2. Connect an HDMI cable from the HD Source to the SKYPLAY-MX-S transmitter. 3. Connect an HDMI cable from the SKYPLAY-MX-R receiver to the HD display. 4. Power down other SKYPLAY-MX devices for ease of installation. 5. Power on both the transmitter and receiver to be paired.

  • Page 15: Edid Management

    SKYPLAY-MX Installation Guide EDID Management The SKYPLAY-MX automatically handles EDID management. The transmitter will request the EDID for all of the active connections. The transmitter then finds the highest compatible signal type for all active wireless connections. The transmitter then uses this as the system EDID for the source to properly output a supported signal type.

  • Page 16: On-Screen Menu

    SKYPLAY-MX Installation Guide On-Screen Menu The SKYPLAY-MX generates an On-Screen Display (OSD) for handling the pairing and status of the device. Overview of OSD The On-Screen Display allows users to Add, Remove and Rename Sources. There is also a Status area for additional information.
  • Page 17 SKYPLAY-MX Installation Guide Using the IR Remote hit the “Menu” button. 2. Arrow down to the “Remove Video Source” selection. 3. Press “OK”. 4. Choose the source to remove using the “Up” and “Down” arrow buttons. 5. Press “OK”. 6. Confirm Removing of the selected source by using the “OK”...
  • Page 18 SKYPLAY-MX Installation Guide 7. A screen will appear showing that the remove operation is in progress. 8. You have removed the source and now are at the Main Menu.

  • Page 19: Renaming Sources

    SKYPLAY-MX Installation Guide Renaming Sources To rename a source, follow the instructions below: 1. Using the IR Remote hit the “Menu” button to bring up the OSD menu. 2. Arrow down to the “Modify Video Source Name” selection. 3. Press “OK”.

  • Page 20: Quick Source Selection

    SKYPLAY-MX Installation Guide 5. Press “OK” to select the source. 6. Use the “Left” and “Right” buttons to change the current position of the cursor. Use the “Up” and “Down” buttons to change the character in the current cursor position.

  • Page 21: Troubleshooting

    Verify power outlet is active. Verify continuity in power cable. Verify that both transmitter and receiver are powered Verify that pairing units are the only SKYPLAY-MX devices currently powered on. Distance issue – bring the transmitter (TX) and receiver (RX) closer together, reduce the amount of solid walls between the TX and RX.
  • Page 22 SKYPLAY-MX Installation Guide Distance issue – bring the transmitter (TX) and receiver (RX) closer together, reduce the amount of solid walls between the TX and RX. No Audio Verify the mute and audio volume setting on the TV. Audio format setting on the source is incompatible with system.

  • Page 23: Technical Specifications

    SKYPLAY-MX Installation Guide Technical Specifications Technical Specifications I/O Connections HDMI Input (SKYPLAY-MX-S) One (1) HDMI Type A Receptacle Connector HDMI Output (SKYPLAY-MX-R) One (1) HDMI Type A Receptacle Connector IR Repeater (SKYPLAY-MX-S) One (1) 2.5mm (3/16”) TS Male Connector 5V DC Power (Both) One (1) 5.5mm Outside Diameter, 2.1mm Inside...

  • Page 24: Fcc Statement

    SKYPLAY-MX Installation Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 25: Caution Statement

    SKYPLAY-MX Installation Guide FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules.
  • Page 26 SKYPLAY-MX Installation Guide Thank you for your purchase. Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com intelix@intelix.com...
