Intelix INT-BSR4K-H2 Owner's Manual

Hdmi 2.0 and hdcp 2.2 compliant hdbaset scaling 4k receiver

Advertisement

Quick Links

INT-BSR4K-H2 Owners Manual
Rev 180717
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80918
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-BSR4K-H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelix INT-BSR4K-H2

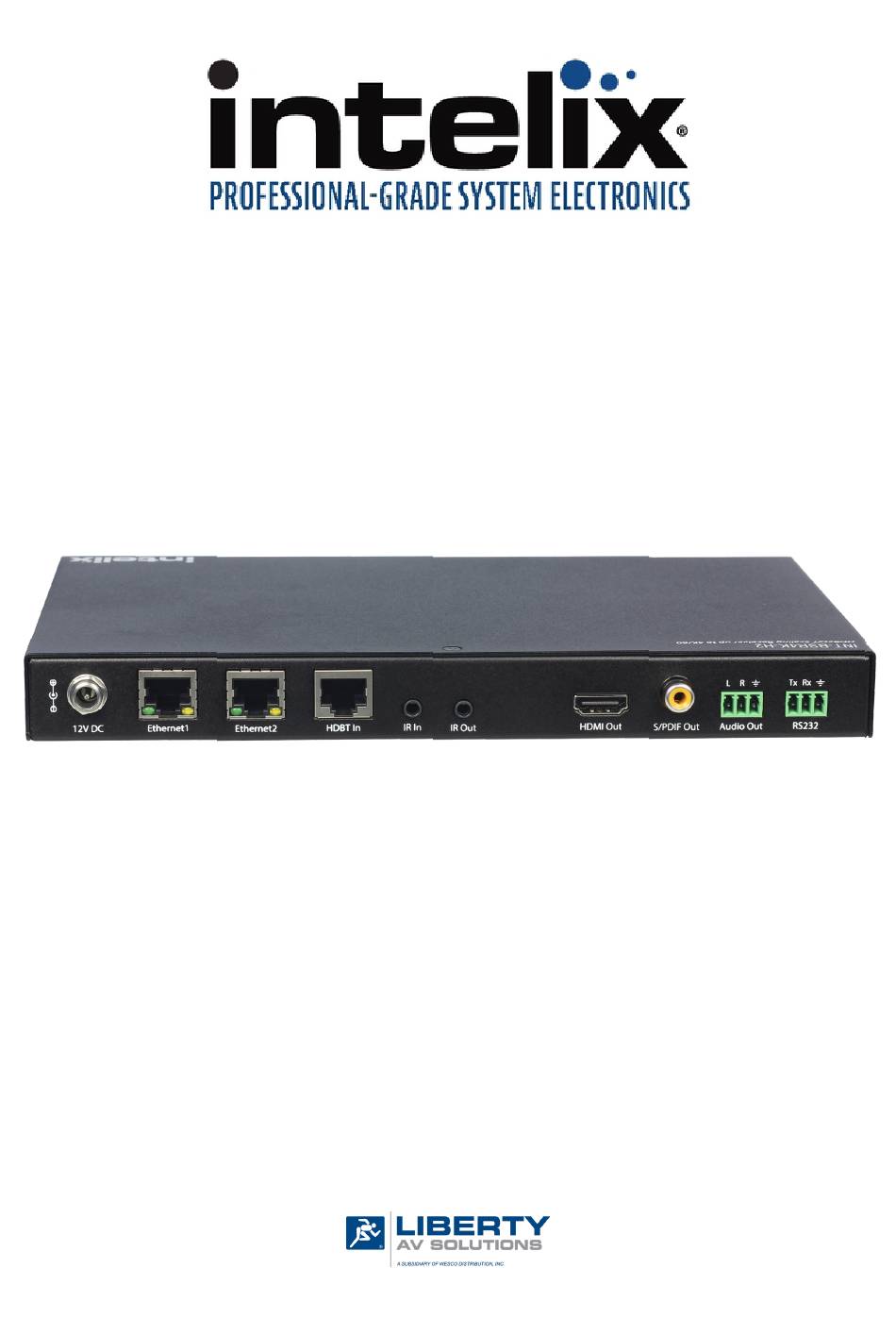

  • Page 1 INT-BSR4K-H2 Owners Manual Rev 180717 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 INT-BSR4K-H2 Owners Manual...
  • Page 3 Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions. » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 4: Table Of Contents

    INT-BSR4K-H2 Owners Manual Table of Contents Product Overview ���������������������������������������������������������������������������������������������������������������5 Package Contents ���������������������������������������������������������������������������������������������������������������5 Front and Rear Panel View �������������������������������������������������������������������������������������������������6 Installation Instructions �����������������������������������������������������������������������������������������������������7 Quick Start ��������������������������������������������������������������������������������������������������������������������7 Mount the Switcher / Extender ������������������������������������������������������������������������������������7 Connect Compatible HDBaseT Transmitter ������������������������������������������������������������������7 Connecting a Display ����������������������������������������������������������������������������������������������������8 HDMI Output �����������������������������������������������������������������������������������������������������������8 Connect Audio Output ��������������������������������������������������������������������������������������������������8...
  • Page 5: Product Overview

    Ethernet, RS232 and bi-directional IR up to 100m/330ft over a single category cable. The INT-BSR4K-H2 can be controlled by telnet or RS232 but also can also store and pass display commands via RS232 as well as generate CEC display ON and OFF commands.
  • Page 6: Front And Rear Panel View

    INT-BSR4K-H2 Owners Manual Front and Rear Panel View 1. 12V DC - Locking power port to connect DC12V power adapter 2. ETHERNET 1 - Ethernet Port 1 3. ETHERNET 2 - Ethernet Port 2 4. HDBT IN - HDBaseT input to connect to HDBaseT output from transmitter via category cable 5.
  • Page 7: Installation Instructions

    Mount the Switcher / Extender At least 2 inches of free air space is required on both sides of the INT-BSR4K-H2 for proper side ventilation. Avoid mounting the INT-BSR4K-H2 near a power amplifier or any other source of significant heat.
  • Page 8: Connecting A Display

    Connect the display devices to HDMI output on the receiver using an HDMI cable that is less than or equal to 5 meters in length. Connect Audio Output Insert the removable 3-pin phoenix connector block to the audio output. The INT-BSR4K-H2 supports a stereo unbalanced output AUDIO...
  • Page 9: Passing Ir Signals

    Passing IR Signals The INT-BSR4K-H2 is capable of passing IR signals between 33 and 55 KHz. To prevent damage to any of the electronics, the extenders should be powered off while inserting or removing any IR components. Inserting an IR transmitter into the IR IN port may damage the IR circuit for that extender.
  • Page 10: Application Diagram

    INT-BSR4K-H2 Owners Manual Application Diagram IR REMOTE 1 MEDIA PLAYER Intelix INT-HDX100-TX (NOT INCLUDED) HDMI CATx AUDIO RS232 up to 100m / 330’ CONTROL SYSTEM IR REMOTE 2 AUDIO AMP PROJECTOR...
  • Page 11: Rs232 And Tcp/Ip Control

    INT-BSR4K-H2 Owners Manual RS232 and TCP/IP Control RS232 Settings: 115200 baud, 8 Data bits, 1 Stop bit, Parity = None TCP/IP Settings: User defined IP address (default IP address:192.168.2.128), port 23 The commands are case sensitive All commands below are in ASCII and all strings and responses end in a carriage return (hex 0D) and a line feed (hex 0A).
  • Page 12: Output Scaler Settings

    INT-BSR4K-H2 Owners Manual Output Scaler Settings Description Command Example SET SCALER {r} Command: Set output resolution {r} = 3840x2160@60 SET SCALER AUTO<CR><LF> 3840x2160@50 3840x2160@30 Return: 3840x2160@25 3840x2160@24 SCALER AUTO<CR><LF> 1920x1200@60 1920x1080@60 1920x1080@50 1280x720@60 1280x720@50 1600x1200@60 1680x1050@60 1600x900@60 1440x900@60 1366x762@60 1360x768@60...
  • Page 13: Edid Input Settings

    INT-BSR4K-H2 Owners Manual EDID Input Settings Description Command Example SET EDID input {e} Command: Set input EDID {e} = 3840x2160@30 SET EDID input copy<CR><LF> 1920x1200@60 1920x1080@60 Return: 1280x800@60 1280x720@60 EDID input copy<CR><LF> 1024x768@60 copy Note: copy setting copies connected displays...
  • Page 14: Rs232 To Display Commands

    INT-BSR4K-H2 Owners Manual RS232 to Display Commands Description Command Example SET BAUD {b} Command: Set RS232 port to baud rate of display {b} = 9600 SET BAUD 115200<CR><LF> 57600 115200 Return: BAUD 115200<CR><LF> SET ENCHAR {e} Command: Set end character {e} = cr SET ENDCHAR cr<CR><LF>...
  • Page 15: Rs232 To Display Commands (Continued)

    INT-BSR4K-H2 Owners Manual RS232 to Display Commands (continued) Description Command Example DOF xxxx Command: Set RS232 display off command - ASCII format xxxx = ASCII display DOF PWR OFF<CR><LF> OFF command string Return: DOFF PWR OFF<CR><LF> DOF_HEX 0Xxx 0Xxx Command:...
  • Page 16: De-Embedded Audio Output Settings

    INT-BSR4K-H2 Owners Manual De-embedded Audio Output Settings Description Command Example SET VOL {v} Command: Set de-embedded audio output volume (0-100) {v} = 0-100 SET VOL 50<CR><LF> Return: VOL 50<CR><LF> GET VOL Command: Query de-embedded audio output volume GET VOL<CR><LF> Return: VOL 50<CR><LF>...
  • Page 17: Miscellaneous Commands

    INT-BSR4K-H2 Owners Manual Miscellaneous Commands Description Command Example GET VER Command: Get Current Firmware Version GET VER<CR><LF> Return: V1.7<CR><LF> Command: Upgrade Device Firmware UPG<CR><LF> Return: UPG<CR><LF> RESET Command: Factory Reset RESET<CR><LF> Return: RESET<CR><LF> REBOOT Command: System Reboot REBOOT<CR><LF> Return: REBOOT<CR><LF>...
  • Page 18: Technical Specifications

    INT-BSR4K-H2 Owners Manual Technical Specifications Video Video Output (1) HDMI Video Output Connector (1) HDMI type A Output Video Signal HDMI Output Resolutions Supported SMPTE: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 (YUV4:2:0); 1920 x 1080@60; 1280 x 720@60; 720 x 576p@60;...
  • Page 19 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
