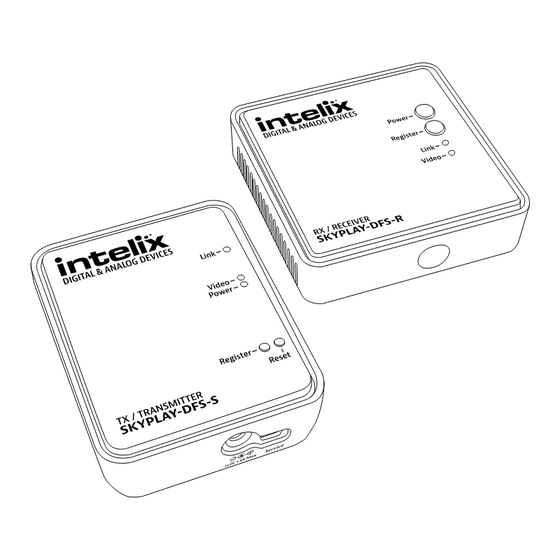

  • Page 1 PDF provided by Conference Room AV Intelix SKYPLAY-DFS-R Wireless HDMI Receiver w/ Dynamic Frequency Selection - 100'...
  • Page 2 SKYPLAY-DFS Installation and Operation Guide Rev 150226 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
  • Page 3 » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 4: Table Of Contents

    SKYPLAY-DFS Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� SKYPLAY-DFS-S Package Contents ����������������������������������������������������������������������������������������������������������������������� SKYPLAY-DFS-R Package Contents ����������������������������������������������������������������������������������������������������������������������� SKYPLAY-DFS-S Features and Connections ��������������������������������������������������������������������������������������������������������� SKYPLAY-DFS-R Features and Connections ��������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������������� Wall Mount the Transmitter �������������������������������������������������������������������������������������������������������������������������������� Wall Mount the Receiver �������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5 SKYPLAY-DFS Installation Guide Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������� Pairing Fails ������������������������������������������������������������������������������������������������������������������������������������������������������� No Signal on the Display ����������������������������������������������������������������������������������������������������������������������������������� No Video over the Wireless Link ������������������������������������������������������������������������������������������������������������������������ Abnormal Color or Noise on the Display ����������������������������������������������������������������������������������������������������������� No Audio ����������������������������������������������������������������������������������������������������������������������������������������������������������� Other Issues ������������������������������������������������������������������������������������������������������������������������������������������������������ SKYPLAY-DFS Technical Specifications�������������������������������������������������������������������������������������������������������������� SKYPLAY-DFS-EU Technical Specifications �������������������������������������������������������������������������������������������������������� FCC Warning ���������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6: Product Overview

    SKYPLAY-DFS Installation Guide Product Overview The SKYPLAY-DFS distributes HDMI high-definition audio and video up to 30 meters (100 feet) in both point-to- point, point-to-many, and many-to-point configurations. Each transmitter is compatible with up to 4 receivers and each receiver can be paired to switch up to 4 transmitters. The SKYPLAY-DFS-S can transmit 1080p video with stereo or multichannel audio.
  • Page 7: Skyplay-Dfs-S Features And Connections

    SKYPLAY-DFS Installation Guide SKYPLAY-DFS-S Features and Connections Link LED–Indicates network status. LED will be solid during normal operation. Video LED–Indicates the video stream is present. Power LED–Indicates power is applied to transmitter. V deo Register Button–Pressed during initial configuration to pair Power with receiver.
  • Page 8: Skyplay-Dfs-R Features And Connections

    SKYPLAY-DFS Installation Guide SKYPLAY-DFS-R Features and Connections Rear Power Input–5V DC power input for supplied power supply. 5vDC HDMI Out–HDMI output port to connect to display. 1 5A M x HDMI Out Power Power Button–Press power on and off receiver. Power Register Button–Pressed during initial configuration to pair with receiver.
  • Page 9: Ir Remote

    SKYPLAY-DFS Installation Guide IR Remote The included IR remote performs all of the pairing and source selection operations of the SKYPLAY-DFS wireless HD distribution system. Enter the menu Return to the previous menu Select video source MENU EXIT SOURCE Up, down, left, right for menu Confirm selection Remove video source DELETE...
  • Page 10: Installation Instructions

    6 mm (0.24 in) space to reach the mounting holes. 6 mm (0.24 in) A scale template is included in the Quick Start Guide that accompanies the product. Letter and A4 sized templates are available on the Intelix website (www.intelix.com).
  • Page 11: Wall Mount The Receiver

    (0.31 in) A scale template is included in the Quick Start Guide that accompanies the product. Letter and A4 sized templates are available on the Intelix website (www.intelix.com). Connect Source and Control to Transmitter Please review the location of all ports before proceeding with installation.
  • Page 12: Point-To-Point Pairing

    SKYPLAY-DFS Installation Guide Point-to-Point Pairing The SKYPLAY-DFS transmitter and receiver must be paired together to pass video. Without remote Apply power to the display. Plug the power supply with USB connector into the Power Input port on the SKYPLAY-DFS-R. Plug the power supply into the Power Input port on the SKYPLAY-DFS-S. Apply power to the source device.
  • Page 13: With Remote

    SKYPLAY-DFS Installation Guide With remote Apply power to the display. Plug the power supply with USB connector into the Power Input port on the SKYPLAY-DFS-R. Plug the power supply into the Power Input port on the SKYPLAY-DFS-S. Apply power to the source device. 5.
  • Page 14 SKYPLAY-DFS Installation Guide Once an active SKYPLAY-DFS-S is found, press on the remote to start the pairing process Adding INX000461 Press OK to continue or Exit to cancel The display will show the progress of the pairing status with the SKYPLAY-DFS-S Adding INX000461 Once pairing is complete, a brief message will show the...
  • Page 15: Point-To-Many Pairing (Signal Distribution)

    SKYPLAY-DFS Installation Guide Point-to-Many Pairing (Signal Distribution) Below are the steps necessary to pair additional SKYPLAY-DFS receivers to the transmitter for a point-to-many installation. The maximum number of active receivers that may be connected to a single transmitter is four. Power off all paired SKYPLAY-DFS receivers.
  • Page 16: Additional Skyplay-Dfs-R Menu Options

    SKYPLAY-DFS Installation Guide Additional SKYPLAY-DFS-R Menu Options Pressing the Menu button on the remote will go back to the previous menu. Pressing the Exit button will close the menu and return to playing back the video stream. Rename a Transmitter The SKYPLAY-DFS-R provides an option to modify the name of the transmitter.
  • Page 17: Remove A Transmitter

    SKYPLAY-DFS Installation Guide Remove a Transmitter The SKYPLAY-DFS-R provides an option to remove a paired SKYPLAY-DFS-S from the available list of transmitters. From the Setup menu, arrow down to Remove Video Source and press the OK key on the remote control. Setup Add new Video Source Remove Video Source...
  • Page 18: Disconnect Wireless Link

    SKYPLAY-DFS Installation Guide Disconnect Wireless Link The SKYPLAY-DFS-R Disconnect Wireless Link option is available to remove the link between the current receiver and the transmitter to allow another receiver to accept the video stream. Select Disconnect Wireless Link from the Setup menu to turn off the wireless radios in the SKYPLAY-DFS-R.
  • Page 19: Frequently Asked Questions

    SKYPLAY-DFS Installation Guide Frequently Asked Questions How many SKYPLAY-DFS-Rs can be connected to one transmitter? The transmitter will broadcast to four SKYPLAY-DFS-Rs. If a fifth receiver is to replace a currently active SKYPLAY-DFS-R, the active receiver must disconnect the wireless link or power off before the video stream will pass to the new receiver. How many SKYPLAY-DFS-Ss can be operational in an installation? In a theoretical installation that has no outside interference, up to ten transmitters can function.
  • Page 20: Troubleshooting

    SKYPLAY-DFS Installation Guide Troubleshooting Pairing Fails • Make sure both transmitter and receiver are powered on. • Make sure pairing units are the only SKYPLAY devices currently powered on. • Bring the transmitter and receiver closer together but no closer than 1 meter. •...
  • Page 21: Other Issues

    SKYPLAY-DFS Installation Guide Other Issues • The receiver keeps outputting a “Searching…” message, and the NETWORK LED constantly blinks It should take up to one minute to establish a wireless link. If the link was not established within that time period, verify the transmitter is powered on and not connected to another receiver.
  • Page 22: Skyplay-Dfs Technical Specifications

    SKYPLAY-DFS Installation Guide SKYPLAY-DFS Technical Specifications I/O Connections (SKYPLAY-DFS-S) HDMI Input One (1) HDMI Type A Receptacle IR Output One (1) 2.5mm (3/16”) TS Male Connector 5V DC Power One (1) 5.5mm Outside Diameter, 2.1mm Inside Diameter Barrel I/O Connections (SKYPLAY-DFS-R) HDMI Output One (1) HDMI Type A Receptacle 5V DC Power...
  • Page 23: Skyplay-Dfs-Eu Technical Specifications

    SKYPLAY-DFS Installation Guide SKYPLAY-DFS-EU Technical Specifications I/O Connections (SKYPLAY-DFS-S) HDMI Input One (1) HDMI Type A Receptacle IR Output One (1) 2.5mm (3/16”) TS Male Connector 5V DC Power One (1) 5.5mm Outside Diameter, 2.1mm Inside Diameter Barrel I/O Connections (SKYPLAY-DFS-R) HDMI Output One (1) HDMI Type A Receptacle 5V DC Power...
  • Page 24: Fcc Warning

    SKYPLAY-DFS Installation Guide FCC Warning This module complies with FCC regulations. Any changes or modifications not expressly approved by the responsible party could void the user’s authority to operate this equipment. Notice: • This module in its final integration requires the end-product to continue to comply with DFS requirements. A class II permissive change may be required for operation not already described in the FCC Grant filing.
  • Page 25 Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com supportlibav@libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
