Intelix DIGI-HDMI-HR
Installation Manual
Introduction
The active Intelix DIGI-HDMI-HR balun transmits an HDMI (high-definition
multimedia interface) audio and video signal up to 150 feet via inexpensive
twisted pair cabling, such as Cat 5e or Cat 6. The DIGI-HDMI-HR supports
standard HDTV resolutions and is HDCP compliant.
Two individual runs of twisted pair cable are required when installing the
DIGI-HDMI-HR balun. The unit is fully compatible with Cat 5e and Cat 6. In
environments susceptible to high electromagnetic interference, two shielded
twisted pair cables should be used.

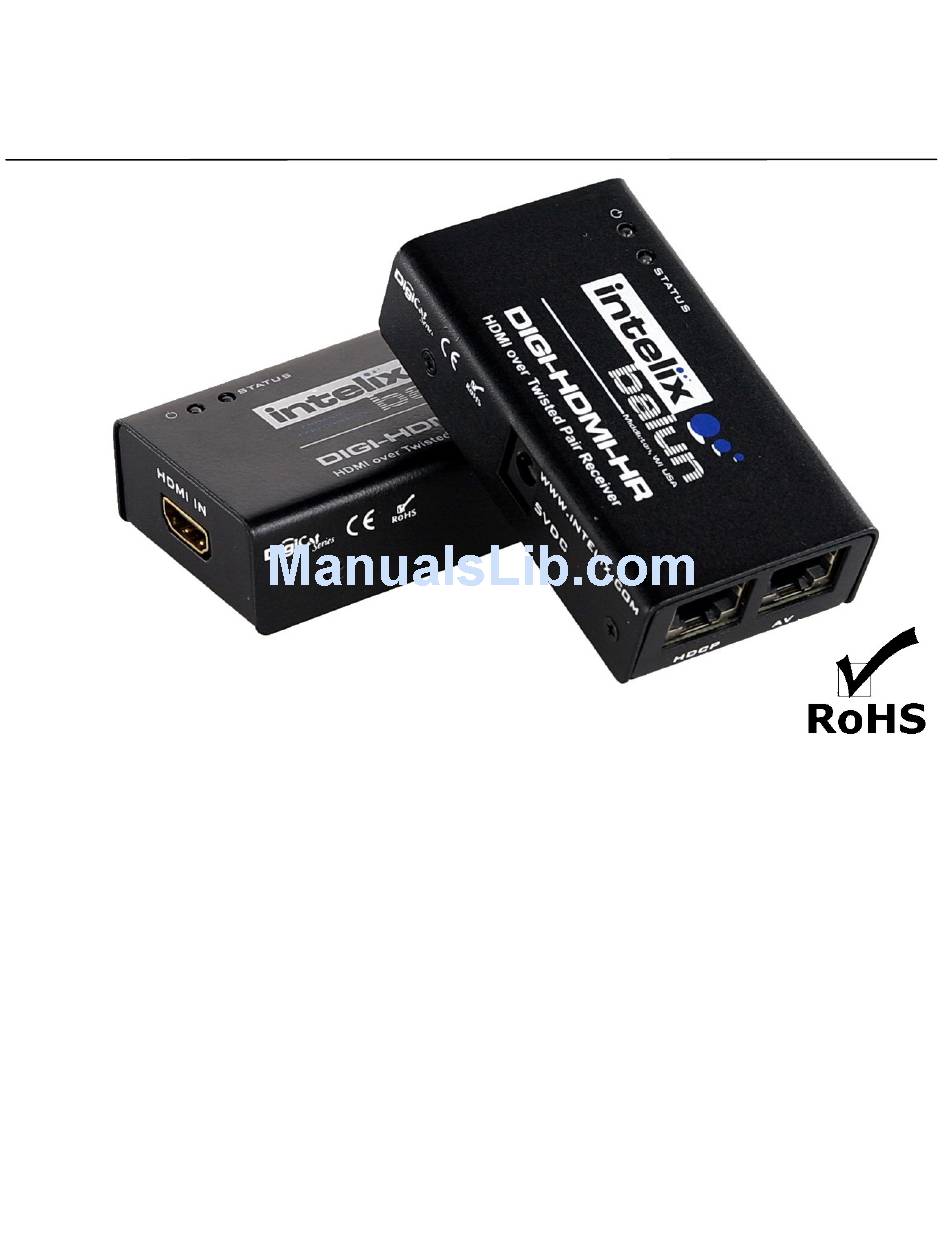

The Intelix DIGI-HDMI-HR includes one send balun, one receive balun, one
power supply, and two mounting brackets. The system is powered on either
the send or receive end.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIGI-HDMI-HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelix DIGI-HDMI-HR

Summary of Contents for Intelix DIGI-HDMI-HR

  • Page 1 HDTV resolutions and is HDCP compliant. Two individual runs of twisted pair cable are required when installing the DIGI-HDMI-HR balun. The unit is fully compatible with Cat 5e and Cat 6. In environments susceptible to high electromagnetic interference, two shielded twisted pair cables should be used.
  • Page 2 HDMI cable. Be sure to test both HDMI cables required for system installation. 5. Connect the DIGI-HDMI-HR send balun to the HDMI output of the video source. 6. Connect the DIGI-HDMI-HR receive balun to the HDMI input of the receiving device at the remote end.
  • Page 3 Troubleshooting Symptom Probable Causes Possible Solutions No signal Incorrect cable Verify that both ends of the twisted pair termination cables use 568B crimp pattern. Status LED is off No signal Incorrect cable Swap the twisted pair cables in the AV and connection HDCP RJ45 inputs on the receive balun.
  • Page 4 2 years Regulatory CE, RoHS Intelix Part Number DIGI-HDMI-HR Ordering Information DIGI-HDMI-HR package includes one send unit, one receive unit, two mounting brackets and one power supply The Intelix DIGI-HDMI-HR conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications.
