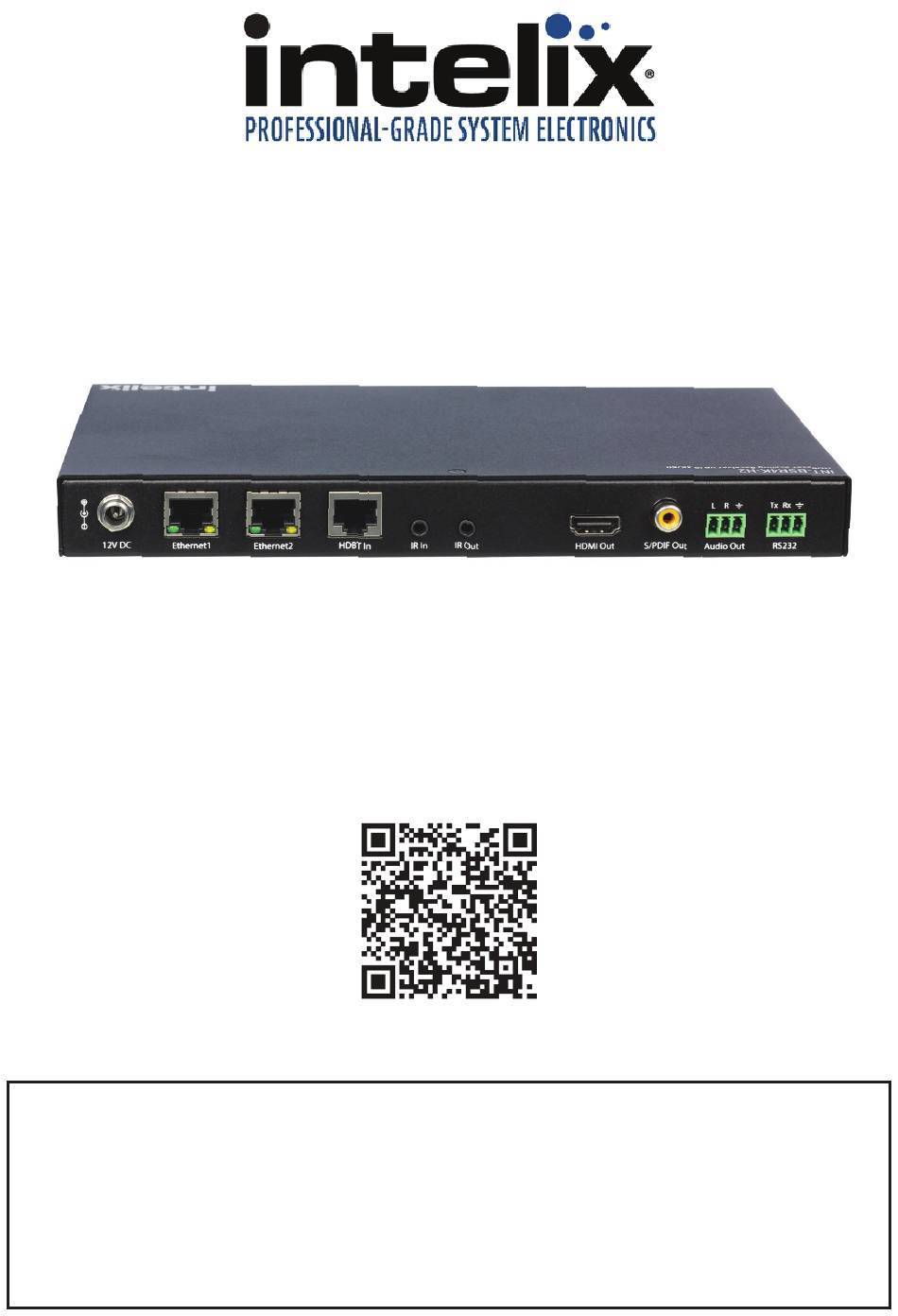

INT-BSR4K-H2 Quick Install Guide
For complete owners manual and list of commands, go to www.libav.com or use a
QR reader to access the manual via QR code below.
Important noti ce:
• Do not att empt to disassemble or alter the housing. There are no user-serviceable parts inside the unit.
Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostati c discharge (ESD), all source and
desti nati on equipment must be powered off during installati on.
• Do not connect the device to a telecommunicati on outlet wired to unrelated equipment.
Doing so may damage the unit or any connected equipment.
• Ensure all connected twisted pair cabling is straight-through (point-to-point).
• Allow proper venti lati on to reduce the risk of thermal failure.
This guide is for quick installati on only.
Scan QR Code with your Smart-phone or Tablet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NT-BSR4K-H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelix NT-BSR4K-H2

Summary of Contents for Intelix NT-BSR4K-H2

  • Page 1 INT-BSR4K-H2 Quick Install Guide This guide is for quick installati on only. For complete owners manual and list of commands, go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important noti ce: •...

  • Page 2: Product Overview

    100BaseT Ethernet pass-through connection without adding additional hardware to the installation. The INT-BSR4K-H2 requires local power, however it can provide power to a compatible HDBaseT transmitter. The INT-BSR4K-H2 is compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications. Package Contents •...

  • Page 3: Front And Back View

    Front and Back View 12V DC - Locking power port to connect DC12V power adapter ETHERNET 1 - Ethernet Port 1 ETHERNET 2 - Ethernet Port 2 HDBT IN - HDBaseT input to connect to HDBaseT output from transmitt er via category cable IR IN - IR Input to connect to IR receiver IR OUT - IR Output to connect to IR emitt er HDMI OUT - HDMI output for display connecti vity...

  • Page 4: Connectivity Instructions

    Connectivity Instructions 1. Verify all components included are present before installation. 2. Connect HDMI source devices to HDMI inputs on transmitter (not included) 3. Connect an HDMI display device to the HDMI output port on receiver 4. Connect a Category 6 F/UTP or greater twisted pair cable with RJ45 connectors between compatible HDBaseT transmitter (not included) and the INT-BSR4K-H2.

  • Page 5: Cabling Requirements

    Cabling Requirements To ensure proper performance of the INT-BSR4K-H2, it is recommended that you use solid core shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably. When using shielded category cabling ALWAYS..use shielded connectors ..properly ground the category cable For opti mized performance use the following Liberty Wire and Cable branded cabling;...

  • Page 6: Technical Specifications

    Technical Specifications Video Video Output (1) HDMI Video Output Connector (1) HDMI type A Output Video Signal HDMI SMPTE: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 Output Resolutions Supported (YUV4:2:0); 1920 x 1080@60; 1280 x 720@60; 720 x 576p@60; 720 x 480p@60 VESA: 1920 x 1200@60;...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
