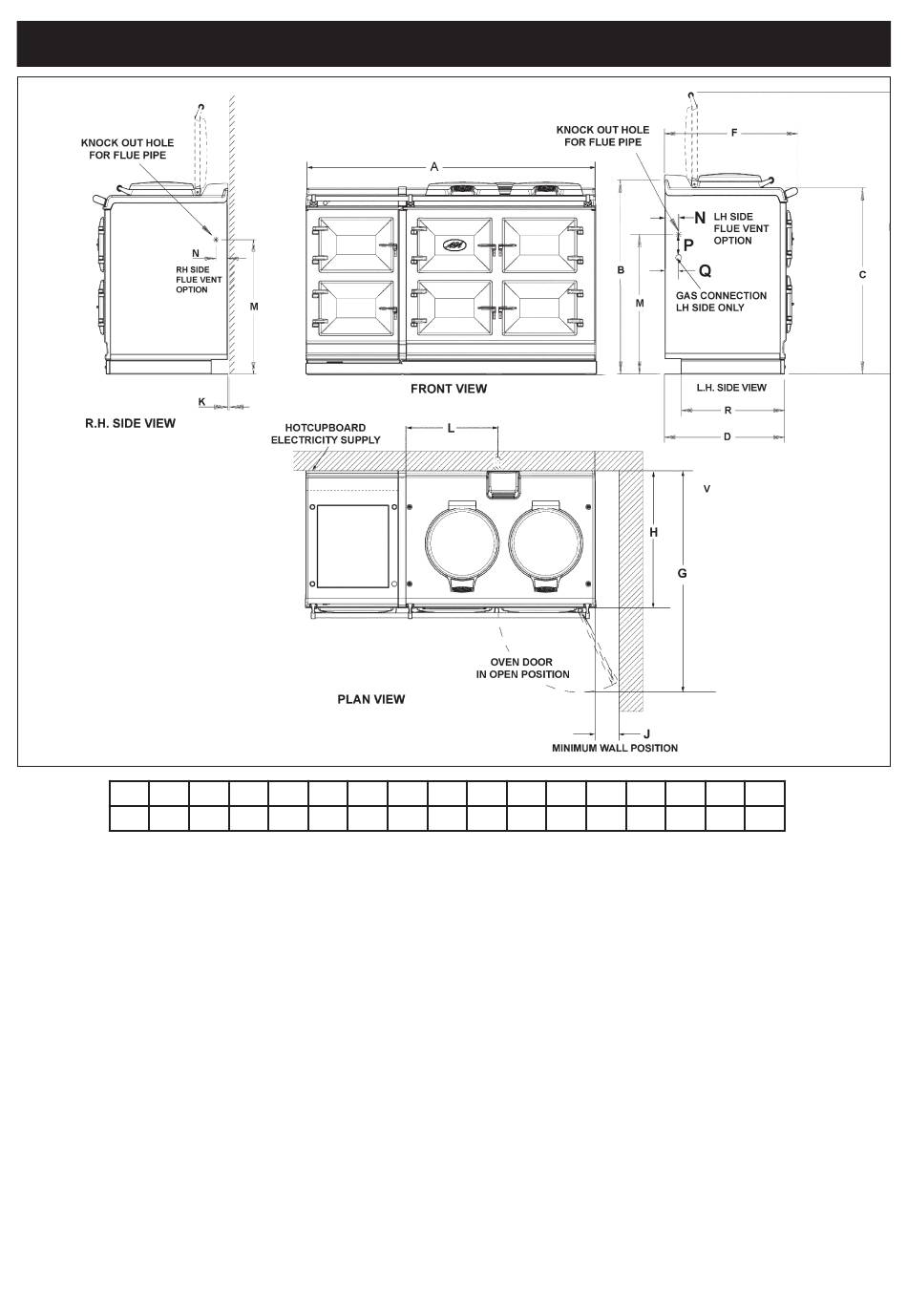

APPLIANCE DIMENSIONS - AGA DC5G
Fig. 2
DESN 516848
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
mm 1478 951 913 680 1388 760 1145 698 116
10
565 689
43
118
55
634
Cooker Dimensions
When surveying for a cooker installation the actual clearance required for the 'body' of the appliance should be increased
by 10mm beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations
found in major castings. In particular the width across the appliance recess could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA Dual Control (DC3) - 452kg
Hotcupboard - 110kg
5
