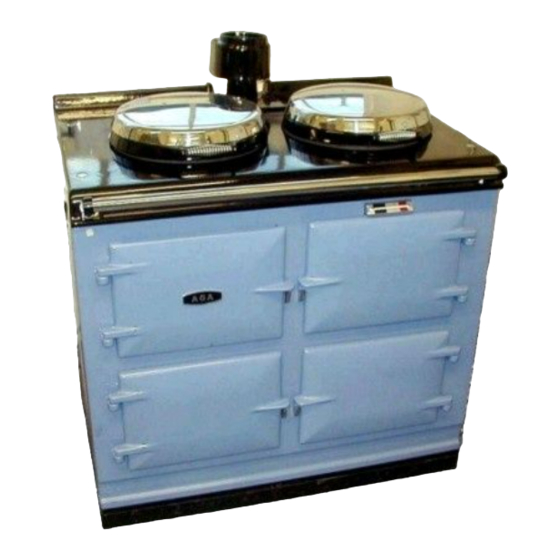

AGA GC 3 Installation Instructions Manual

(three oven) gas fired power flue cooker
Hide thumbs Also See for GC 3:
Table of Contents

Advertisement

Quick Links

Download this manual
GC 3 (PF)
(THREE OVEN)
GAS FIRED POWER FLUE COOKER
Installation
Instructions
REMEMBER: when replacing a part on this appliance, use only spare parts that
you can be assured conform to the safety and performance specification that we
require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE
For use in GB and IE
03/07 EINS 513387
