LPRT 518049

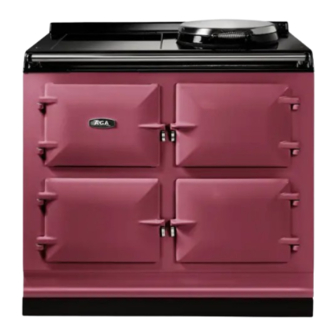

AGA eR7i
Model No's: eR7i 100-3 and eR7i 150-5
Installation Guide
WARNING!
Please read the Warning, Cautionary notes at the start of this section.
If the information contained within these instructions is not followed,
property damage or personal injury may occur.
DO NOT store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer or service
agency.
WARNING! This appliance must be installed with an appropriate device that
will allow permanent disconnection of the Live and Neutral conductors. During
Installation or disconnection prior to any electrical work, the appliance must be
permanently disconnected from the Supply (Live) and Neutral Conductors.
CAUTION: THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE MANPOWER MUST BE USED IN MOVING THE
RANGE TO AVOID DAMAGE TO THE UNIT OR THE FLOOR.
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require.
DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
For use in GB and IE
07/24 EINS 518050
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGA eR7i 100-3
Summary of Contents for AGA eR7i 100-3
- Page 1 REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
Contents Health and Safety Installation requirements Delivery requirements Appliance dimensions - AGA eR7i 100-3 Appliance dimensions - AGA eR7i 150-5 Clearances Power supply - AGA eR7i Induction Hob Power supply - Hotcupboard Mains cable routing - AGA eR7i Mains cable routing - AGA Hotcupboard... -
Page 4: Health And Safety
Children should be supervised to ensure that they be operated by means of an external timer not do not play with the appliance. approved by AGA or a separate remote-control system. Cooker Base or Hearth CAUTION: The cooking process has to be supervised. - Page 5 The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Installation Requirements
1005mm x 740mm. A wooden template (skate with castor wheels) of dimensions 1005mm x 740mm could be used to check if the AGA eR7i fully built appliance is able to fit through the property grounds and doors into its installation position in the kitchen. -
Page 7: Appliance Dimensions - Aga Er7I 100-3
Appliance dimensions - AGA eR7i 100-3 RIGHT-HAND SIDE VIEW FRONT VIEW LEFT-HAND SIDE VIEW MINIMUM WALL POSITION MINIMUM WALL POSITION PLAN VIEW Fig. 4.1 DESN 517781 mm 987 960 915 680 1388 760 1145 698 125 511 882 630 476 816 985 Cooker Dimensions When surveying for a cooker installation the actual clearance required for the ‘body’... -
Page 8: Appliance Dimensions - Aga Er7I 150-5
Appliance dimensions - AGA eR7i 150-5 RIGHT-HAND SIDE VIEW FRONT VIEW LEFT-HAND SIDE VIEW PLAN VIEW Fig. 4.2 DESN 517782 mm 1478 960 915 680 1388 760 1145 698 125 10 1002 882 630 476 816 985 Cooker Dimensions When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be increased by 10mm beyond the figures quoted above. -
Page 9: Clearances
Where cookers are fitted against side walls a 125mm clearance is required on the right and left hand side for oven doors access. If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 10mm, to allow for the walls not being square. -
Page 10: Power Supply - Aga Er7I
A 230v ~ 50 Hz, 3 amp fused electrical supply is required adjacent to the appliance (with the exception of the AGA Hotcupboard with Induction Hob model, please refer to the AGA Induction Hob model instructions for the power supply requirements). External wiring to the unit must be installed using the mains cable provided, in accordance with the current wiring regulations and any local regulations which apply. -
Page 11: Mains Cable Routing - Aga Er7I
Mains cable routing - AGA eR7i MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 4.3 DESN 517783 THE MAINS SUPPLY CONNECTION POINT MUST BE WITHIN THE ZONES SHOWN Fig. 4.4... -
Page 12: Mains Cable Routing - Aga Hotcupboard
Mains cable routing - AGA Hotcupboard HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 4.6 DESN 517785 THE MAINS SUPPLY CONNECTION POINT MUST BE WITHIN THE ZONES SHOWN ABOVE AND MUST NOT BE POSITIONED ABOVE OR BEHIND THE APPLIANCE. -
Page 13: Hotcupboard Installation
Hotcupboard installation NOTE: The AGA hotcupboard should arrive with the top plate in a jacked up position (except for induction top versions which will arrive with the top fully wound down). This is to allow the complete appliance to be slid onto its plinth when alongside the AGA eR7i without the top plates clashing. - Page 14 Check with a spirit level that the plinth level is correct, and also check height differential between the hotcupboard plinth and AGA eR7i plinth is correct 7/16 “ (11 mm). If necessary, use shims in each corner to level the plinth.
- Page 15 Run a straight edge along the front of the AGA eR7i plinth, to ensure the front face of both plinths sit squarely against the straight edge. (Fig. 5.5) USE STRAIGHT EDGE ACROSS BOTH PLINTHS TO ENSURE PLINTHS ARE ALIGNED Fig. 5.5...
- Page 16 Fig. 5.7 The hotcupboard top plate is set 3/16 “ (5mm) higher than the AGA eR7i top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (Fig. 5.8 and Fig. 5.9).
- Page 17 AGA eR7i. (Fig. 5.9). For servicing requirement, top plate should be removed by raising adjusters approximately 3/16 “...
- Page 18 10. Next the handrail, endcaps and handrail require assembly. Slide the handrail through the handrail brackets. Fig. 5.11 11. On 5 oven appliances, fit ‘allthread’ stud into the threaded end of the handrail, then feed the handrail through the bracket (ensuring that the allthread stud is protruding from the right hand side of the hotcupboard handrail) and screw the handrails together.
- Page 19 5 oven appliances the right hand side of the module plinth facia sits against the left hand side of the AGA eR7i plinth facia leaving no gap between. Make sure that the plinth facias are centrally located and do not overhang either appliance.
-
Page 20: Circuit Diagram
Circuit Diagram AGA Hotcupboard Caution: label all wires prior to disconnection, when servicing controls wiring errors can cause improper and dangerous operation. Verify proper operation after servicing DESN 517488 Code Colour Blue Brown Black Orange Green... - Page 21 AGA eR7i Comm’s cable (Rd) Earth (G) Fan oven Fan oven thermocouple Fan oven Roast oven / Grill element thermocouple Simmer oven Roast oven top / thermocouple Grill element Boil/simmer plate thermocouple Roast oven bottom Facia Panel element Boiling /...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 For further advice or information contact your local AGA Specialist. With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliances described and illustrated at any time. Manufactured By...
