LPRT 517763

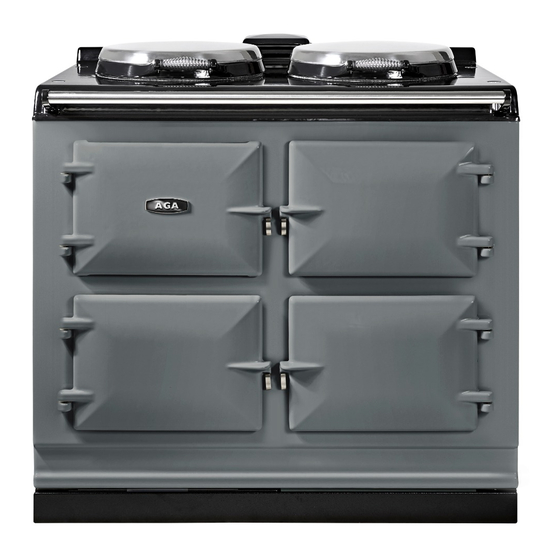

AGA eR7
Model No's: eR7 100-3 and eR7 150-5
Installation Guide
WARNING!
Please read the Warning, Cautionary notes at the start of this section.
If the information contained within these instructions is not followed,
property damage or personal injury may occur.
DO NOT store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer or service
agency.
WARNING! This appliance must be installed with an appropriate device that
will allow permanent disconnection of the Live and Neutral conductors. During
Installation or disconnection prior to any electrical work, the appliance must be
permanently disconnected from the Supply (Live) and Neutral Conductors.
CAUTION: THIS UNIT IS HEAVY, PROPER EQUIPMENT AND ADEQUATE MANPOWER MUST BE USED IN MOVING THE
RANGE TO AVOID DAMAGE TO THE UNIT OR THE FLOOR.
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require.
DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
For use in GB and IE
09/19 EINS 517779

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eR7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA eR7 Series

Summary of Contents for AGA eR7 Series

  • Page 1 REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Contents Health and Safety Installation requirements Delivery requirements Appliance dimensions - AGA eR7 100-3 Appliance dimensions - AGA eR7 150-5 Clearances Power supply - AGA eR7 Power supply - Hotcupboard Mains cable routing - AGA eR7 Mains cable routing - AGA Hotcupboard...

  • Page 4: Health And Safety

    WARNING : This appliance is not intended to be operated by means of an external timer not It is essential that the base or hearth on which the cooker approved by AGA or a separate remote-control and should be level and capable of supporting the total system.
  • Page 5 The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 6: Installation Requirements

    1005mm x 740mm. A wooden template (skate with castor wheels) of dimensions 1005mm x 740mm could be used to check if the AGA eR7 fully built appliance is able to fit through the property grounds and doors into its installation position in the kitchen.

  • Page 7: Appliance Dimensions - Aga Er7 100-3

    Appliance dimensions - AGA eR7 100-3 REAR OVEN VENT PIPE POSITION REAR OVEN VENT PIPE POSITION RIGHT-HAND LEFT-HAND OVEN VENT OVEN VENT OPTION OPTION RIGHT-HAND SIDE VIEW FRONT VIEW LEFT-HAND SIDE VIEW PLAN VIEW MINIMUM WALL POSITION MINIMUM WALL POSITION Fig.

  • Page 8: Appliance Dimensions - Aga Er7 150-5

    Appliance dimensions - AGA eR7 150-5 REAR OVEN VENT PIPE POSITION RIGHT-HAND LEFT-HAND OVEN VENT OVEN VENT OPTION OPTION FRONT VIEW RIGHT-HAND SIDE VIEW LEFT-HAND SIDE VIEW HOTCUPBOARD ELECTRICITY SUPPLY OVEN DOOR ON OPEN POSITION PLAN VIEW MINIMUM WALL POSITION Fig.

  • Page 9: Clearances

    Where cookers are fitted against side walls a 125mm clearance is required on the right and left hand side for oven doors access. If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 10mm, to allow for the walls not being square.

  • Page 10: Power Supply - Aga Er7

    A 230v ~ 50 Hz, 3 amp fused electrical supply is required adjacent to the appliance (with the exception of the AGA Hotcupboard with Induction Hob model, please refer to the AGA Induction Hob model instructions for the power supply requirements). External wiring to the unit must be installed using the mains cable provided, in accordance with the current wiring regulations and any local regulations which apply.

  • Page 11: Mains Cable Routing - Aga Er7

    Mains cable routing - AGA eR7 MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 2.3 DESN 517783 THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig. 2.4...

  • Page 12: Mains Cable Routing - Aga Hotcupboard

    Mains cable routing - AGA Hotcupboard HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 2.6 DESN 517785 THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig.

  • Page 13: Vent Pipe Connection

    Reseal pipe connection with aluminium tape. When installing an AGA eR7 150-5 which is venting to the left hand side, care must always be taken to ensure the vent pipe is fully lagged (using insulation provided). Where the vent pipe passes behind the hot cupboard, ensure that the mains cable is kept away from the hot surface of the vent pipe.

  • Page 14: Oven Venting Systems

    Oven venting systems See Fig. 2.8 The appliance oven venting pipe can be achieved up to a maximum length of 6 metres, through an outside wall. Great care must be taken in all-timber houses. If the oven vent pipe passes through combustible material, there must be an air gap of at least 25mm around the pipe and preferably wrapped with insulation material.

  • Page 15: Hotcupboard Installation

    This is to allow the complete appliance to be slid onto its plinth when alongside the AGA eR7 without the top plates clashing. The hotcupboard top plate should then be wound down to its correct height once the appliance is in its final position.
  • Page 16 Position the plinth alongside the AGA eR7 leaving no gap between the two plinths (Fig. 3.3). Check with a spirit level that the plinth level is correct, and also check height differential between the hotcupboard plinth and AGA eR7 plinth is correct (11mm). If necessary, use shims in each corner to level the plinth.
  • Page 17 Run a straight edge along the front of the AGA eR7 plinth, to ensure the front face of both plinths sit squarely against the straight edge. (Fig. 3.5) USE STRAIGHT EDGE ACROSS BOTH PLINTHS TO ENSURE PLINTHS ARE ALIGNED SQUARELY Fig.
  • Page 18 Fig. 3.7 DESN 516552 The hotcupboard top plate is set 5mm higher than the AGA eR7 top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (Fig. 3.8 and Fig. 3.9).
  • Page 19 Using the stay rod nut adjusting tool, carefully lower the top plate adjusting nuts until the top plate sits at the required height, making sure that the top sits level and matches the height of the AGA eR7. (Fig. 3.9). For servicing requirement, top plate should be removed by raising adjusters approximately 5mm, the top plate can now be removed easily without causing damage to the enamelled surfaces.
  • Page 20 10. Next the handrail, endcaps and handrail require assembly. Slide the handrail through the handrail brackets. AGA eR7 HANDRAIL CONNECTION Fig. 3.11 DESN 516880 11. On 5 oven appliances, fit ‘allthread’ stud into the threaded end of the handrail, then feed the handrail through the bracket (ensuring that the allthread stud is protruding from the right hand side of the hotcupboard handrail) and screw the handrails together.
  • Page 21 AGA eR7 plinth facia leaving no gap between. Make sure that the plinth facias are centrally located and do not overhang either appliance. (Fig. 3.12) Commission the AGA eR7, as stated in the relevant Installation Instructions and carry out functional test on each of the features of the AGA eR7.

  • Page 22: Circuit Diagram

    Circuit Diagram AGA Hotcupboard Caution: label all wires prior to disconnection, when servicing controls wiring errors can cause improper and dangerous operation. Verify proper operation after servicing DESN 517488 Code Colour Blue Brown Black Orange Green...
  • Page 23 AGA eR7 CONTROLS HOUSING ROAST OVEN THERMOCOUPLE FACIA PANEL BAKING OVEN THERMOCOUPLE ROAST OVEN SIMMER OVEN THERMOCOUPLE ROAST OVEN BOILING PLATE BOTTOM THERMOCOUPLE BAKING OVEN SIMMER PLATE THERMOCOUPLE BOILING PLATE BAKING OVEN BOTTOM SIMMER OVEN SIMMERING PLATE MAINS IN EARTH CABLE C/W RING...
  • Page 24 For further advice or information contact your local AGA Specialist. With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliances described and illustrated at any time. Manufactured By...
