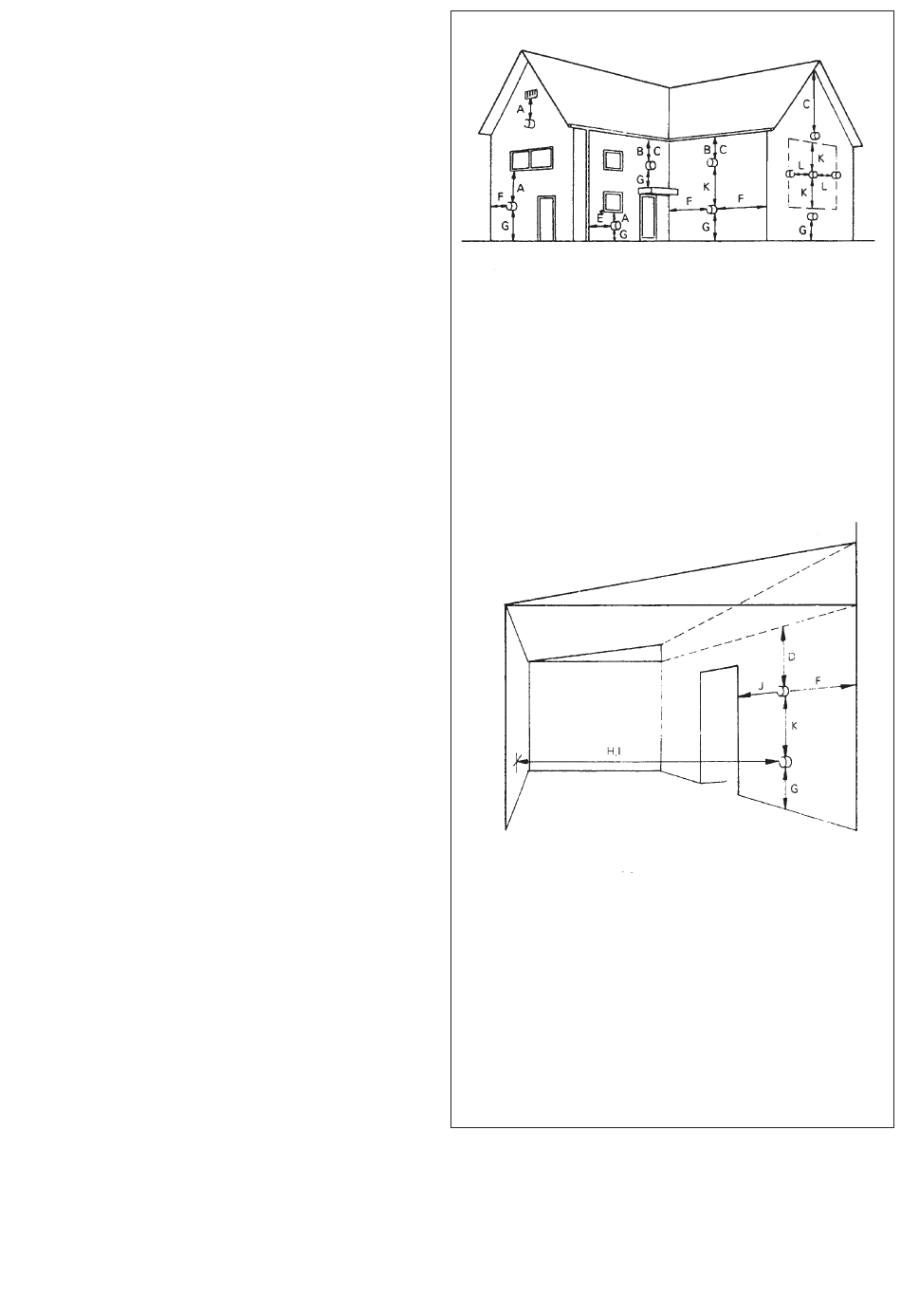

Minimum si ti ng dimensi ons for Flue terminals
Position
Spacing
mm
A
Directly below an openable window,
air vent, or an other ventilation opening
B
Below gutter, drain/soil pipe
C
Below eaves
D
Below a balcony or car port roof
E
From vertical drain pipes and soil pipes
F
From internal or external corners
G Above adjacent ground or balcony level
H
From surface facing the terminal
I
Facing terminals
J
From opening (door/window)
in car port into dwelling
K
Vertical from a terminal
L
Horizontally from a terminal
Minimum
300
75
200
200
150
AROUND THE HOUSE
200
300
600
1200
1200
1500
300
UNDER THE CAR PORT, ETC.
Fig. 7
12
DESN 511052
DESN 511053
