Installation Manual
LPRT 516635

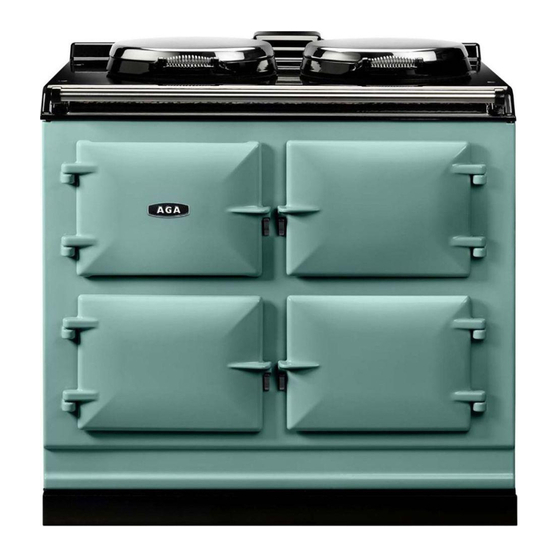

AGA DUAL CONTROL
Model No's: DC3 & DC5
Includes External Vent & Room Vent Option
Installation Guide
WARNING!
Please read the Warning, Cautionary notes at the start of this section.
If the information contained within these instructions is not followed,
property damage or personal injury may occur.
DO NOT store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer or service
agency.
WARNING! This appliance must be installed with an appropriate device that
will allow permanent disconnection of the Live and Neutral conductors. During
Installation or disconnection prior to any electrical work, the appliance must be
permanently disconnected from the Supply (Live) and Neutral Conductors.
REMEMBER: when replacing a part on this appliance, use only spare parts that you can be assured
conform to the safety and performance specification that we require. Do not use reconditioned or
copy parts that have not been clearly authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY OR INSTALLING THIS APPLIANCE.
For use in GB and IE
09/18 EINS 516637
Advertisement
Table of Contents
Related Manuals for AGA Dual Control Series
Summary of Contents for AGA Dual Control Series
- Page 1 REMEMBER: when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY OR INSTALLING THIS APPLIANCE.
-
Page 2: Table Of Contents
Delivery requirements Appliance dimensions - AGA DC3 Appliance dimensions - AGA DC5 Clearances Power supply - AGA DC3 Power supply - Hotcupboard (AGA DC5) Mains cable routing - AGA DC3 Mains cable routing - AGA DC5 (Hotcupboard) External vent models -... -
Page 3: Health And Safety
Children should be supervised to ensure that they be operated by means of an external timer not do not play with the appliance. approved by AGA or a separate remote-control Induction hobs; - Metallic objects such as knives , system. -
Page 4: Installation Requirements
1005mm x 740mm. A wooden template (skate with castor wheels) of dimensions 1005mm x 740mm could be used to check if the AGA Total Control fully built appliance is able to fit through the property grounds and doors into its installation position in the kitchen. -
Page 5: Appliance Dimensions - Aga Dc3
10mm beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT (Excludes Packaging) Model: AGA Dual Control (DC3) - 444kg... -
Page 6: Appliance Dimensions - Aga Dc5
10mm beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT (Excludes Packaging) Model: AGA Dual Control (DC3) - 444kg Hotcupboard - 110kg... -
Page 7: Clearances
• Where cookers are fitted against side walls a 116mm clearance is required on the right and left hand side for oven doors access. • If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 10mm, to allow for the walls not being square. - Page 8 Top Plate Adjustment - AGA DC3 (See Fig. 1.3) In general, adjustment of the top plate is to be avoided. However minimum use of the top plate adjusters can be used to improve the alignment of the top plate. Fig. 1.3...
-
Page 9: Power Supply - Aga Dc3
A 230v ~ 50 Hz, 3 amp fused electrical supply is required adjacent to the appliance. (with the exception of the AGA TC5 and DC5 Hotcupboard with Induction Hob model, please refer to the AGA Induction Hob model for instructions for the power supply requirements). External wiring to the unit must be installed using a 3 core silicon - SIHF insulation cable and in accordance with the current wiring regulations and any local regulations which apply. -
Page 10: Mains Cable Routing - Aga Dc3
Mains cable routing - AGA DC3 MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 1.5 DESN 516643 THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig. 1.4... -
Page 11: Mains Cable Routing - Aga Dc5 (Hotcupboard)
Mains cable routing - AGA DC5 (Hotcupboard) HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 1.7 DESN 516644 THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig. -
Page 12: External Vent Models - Vent Pipe Connection
Reseal pipe connection with aluminium tape. When installing a AGA DC5 which is venting to the left hand side, care must always be taken to ensure the vent pipe is fully lagged (using insulation provided). Where the vent pipe passes behind the hotcupboard, ensure that the mains cable is kept away from the hot surface of the vent pipe. -
Page 13: Room Vented Models
It is recommended that this model is fitted in conjunction with a cooker hood. The AGA oven venting outlet is located on the top of the AGA between the two hotplates., and is designed for venting the moisture from the ovens. The cooker hood should be positioned not less than the minimum height as recommended by the manufacturer, from the top of the AGA. -
Page 14: Oven Venting Systems
Oven venting systems See Fig. 1.10 The appliance oven venting pipe can be achieved up to a maximum length of 6 metres, through an outside wall. Great care must be taken in all-timber houses. If the oven vent pipe passes through combustible material, there must be an air gap of at least 25mm around the pipe and preferably wrapped with insulation material. -
Page 15: Hotcupboard Installation
Hotcupboard installation NOTE: The AGA DC5 hotcupboard should arrive with the top plate in a jacked up position (except for induction top versions which will arrive with the top fully wound down). This is to allow the complete appliance to be slid onto its plinth when alongside the AGA DC3 without the top plates clashing. - Page 16 Attach locking screw and jacking screw into plinth. Make sure at this stage that the jacking screw does not protrude beyond outer face of plinth. Ensure locking screw is located into AGA DC3 plinth but not fully tightened. A gap of approximately 3mm should be present between the plinths apart from at the very front where the hotcupboard spacer plate should be touching the AGA DC3 plinth.
- Page 17 Run a straight edge along the front of the AGA Dual Control plinth, to ensure the front face of both plinths sit squarely against the straight edge. (See Fig. 1.15) When satisfied both plinths sit squarely, jacking screws can be tightened until they just make contact with the AGA Dual Control plinth, and locking screws can now be tightened.
- Page 18 Fig. 1.17 DESN 516552 The hotcupboard top plate is set 5mm higher than the AGA Dual Control top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (See Fig. 1.17 & Fig. 1.18).
- Page 19 Using the stay rod nut adjusting tool, carefully lower the top plate adjusting nuts until the top plate sits at the required height, making sure that the top sits level and matches the height of the AGA DC3. (See Fig. 1.19). Fig. 1.19 DESN 516555 Fit the handrail bracket over the fixing stud located on the top plate.
- Page 20 10. Next the handrail, endcaps and handrail require assembly. Slide the handrail through the handrail brackets. AGA DC3 HANDRAIL CONNECTION Fig. 1.22 DESN 516880 11. On 5 oven appliances, fit allthread stud into the insert located in the one end of the handrail, then feed the handrail through the bracket (ensuring that the allthread stud is protruding from the right hand side of the hotcupboard handrail) and screw the handrails together.
- Page 21 AGA Dual Control plinth facia leaving no gap between. Make sure that the plinth facias are centrally located and do not overhang either appliance. (See Fig. 20) 15.
-
Page 22: Wiring Diagram - Aga Dc3
Wiring diagram - AGA DC3 Fig. 1.23... -
Page 23: Wiring Diagram-Aga Dc5 (Hotcupboard)
Wiring diagram- AGA DC5 (HOTCUPBOARD) N L E Green Brown Black Blue 100°C Blue Black Blue Blue Brown Orange Brown Blue CAUTION LABEL ALL WIRES PRIOR TO DISCONNECTION, WHEN SERVICING CONTROLS WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION VERIFY PROPER OPERATION AFTER SERVICING... - Page 24 For further advice or information contact your local AGA Specialist. With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliances described and illustrated at any time. Manufactured By...
