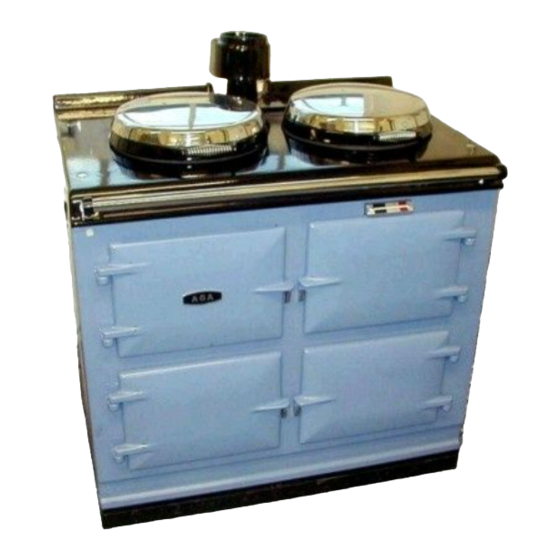

- Page 1 GC 3 (THREE OVEN) Installation Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE. CUSTOMER: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE FOR USE IN USA/CANADA 03/08 EINS 512426...
-
Page 2: Table Of Contents
CONTENTS SECTION PAGE INSTALLATION 3 - 4 BASE OR HEARTH OPEN FLUE RANGE - MODEL GC3 (THREE OVEN) VENT CONNECTION WALL TILING GAS SUPPLY - U.S. PIPE THREADS APPLIANCE DIMENSIONS LOCATION OF NAME PLATE INITIAL LIGHTING OF RANGE REPLACEMENT PARTS BAKING OVEN BAFFLE PLATE TECHNICAL SPECIFICATION INSTALLER SERVICING INSTRUCTIONS - GC3... -
Page 3: Installation
TO RETAIN FOR FUTURE REFERENCE. Aga Gas Fired ranges are delivered unassembled. Before installation can be made the site is inspected for suitability by an Authorised Aga Distributor and corrected where necessary to conform with local installation codes or in the... - Page 4 DESN 512843...
-
Page 5: Vent Connection
Termination at the roofs eaves is unacceptable. The Aga Distributor or Local Gas Company should be advised where any doubt as to the suitability of the flue. Approved factory made chimneys are acceptable with the appliance and should not be less than (4in) internal diameter. -
Page 6: Wall Tiling
WALL TILING If the cooker is to stand in a recess or against a wall which is to be tiled in no circumstances should the tiles overlap the range top plate. GAS SUPPLY - U.S. PIPE THREADS NOTE: A GAS CONTROL VALVE MUST BE INSTALLED IN THE GAS PIPELINE EXTERNALLY OF THE RANGE (NOT SUPPLIED). -
Page 7: Appliance Dimensions
APPLIANCE DIMENSIONS Fig. 4 - Model GC3 Open Flue DESN 512430... -
Page 8: Location Of Name Plate
BAKING OVEN BAFFLE PLATE A metal plate (with square holes), which is provided in the Aga pack, MUST be positioned on the top runners of the Baking Oven. Slide the plate in fully, until it makes contact with the back of the... -
Page 9: Technical Specification
TECHNICAL SPECIFICATION Model GC 3 (Three Oven) - Open Vent Gas Type Natural Gas L.P.G. Main Burner CAT82/400 CAT92/170 Injector Pilot Burner 4212 4209 Injector Combination Gas 1.00mm 0.60mm Valve Bypass Screw 1.20mm 0.80mm Gas Burner 4.0 inch 10.0 inch Pressure w.g. - Page 10 Fig. 7 DESN 512440 Service Gas Valve Control Knob Piezo Ignitor Inlet Pressure Point Burner Pressure Test Point Fig. 8 DESN 512431...
-
Page 11: Installer Servicing Instructions - Gc3
INSTALLER SERVICING INSTRUCTIONS - GC3 (THREE OVEN) It is recommended that the range be serviced at regular annual intervals. Arrange with the householder that the range has been turned OFF the night before to ensure it is cold upon arrival. YEARLY SERVICE The appliance and its individual shut-off valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressure in excess of 1/2 psig (3.5kPa). - Page 12 For further advice or information contact your local distributor/stockist With Aga’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time. 110 Woodcrest Road Cherry Hill NJ 08003 800.633.9200...
