Summary of Contents for Rose electronics CrystalView HDT

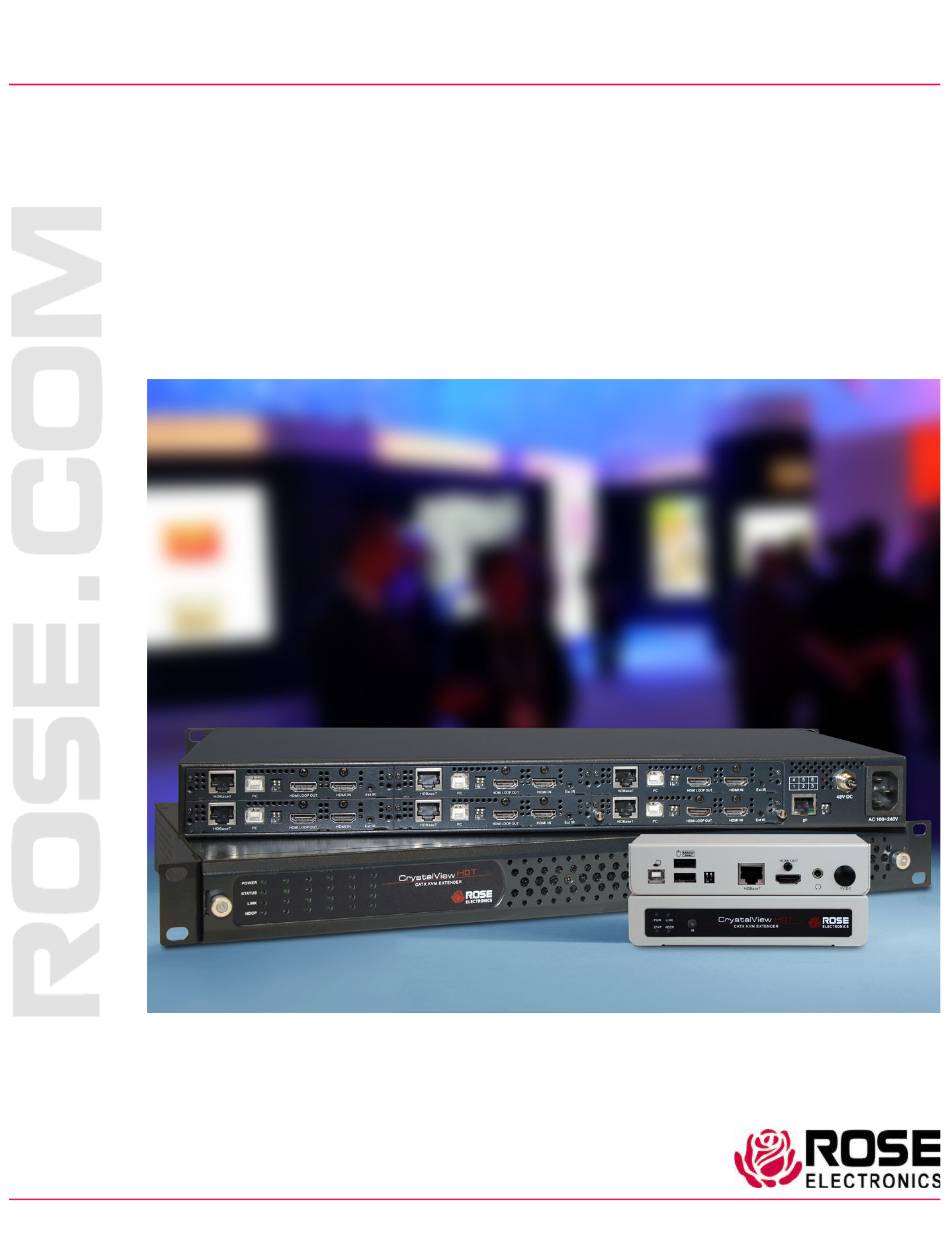

- Page 1 CrystalView HDT Modular CATx Extender • HDMI/VGA/USB-HID/IR Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 LIMITED WARRANTY Rose Electronics warrants the CrystalView HDT to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 EN 55024: 2010 The CrystalView HDT Transmitter has been found to comply with the limits for a Class A digital device, and the Receiver to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Table Of Contents
Maintenance and Repair Technical Support Figures Figure 1. CrystalView HDT Transmitter Front and Rear Panels Figure 2. CrystalView HDT Receiver Front and Rear Panels Figure 3.Basic Setup When Connecting to a Computer Figure 4. Basic Setup When Connecting to a Video Player’... -
Page 5: Disclaimer
(See limited warranty) System Introduction Thank you for choosing Rose Electronics CrystalView HDT. The CrystalView HDT is a standalone device (rack mountable) which extends HDMI/VGA video signals from connected devices up to 328 ft. (100 m) at resolutions up to1080p without compression. -
Page 6: Features
CrystalView HDT transmitter chassis with HDMI or VGA transmitter cards installed as ordered ■ CrystalView HDT receiver(s) ■ Power Supply Cord ■ Manual Additional cables can be ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. CrystalView HDT Manual... -
Page 7: Crystalview Hdt Models
MODELS CrystalView HDT Models The CrystalView HDT Transmitter chassis comes in a single model which can house from 1 to 6 HDMI or VGA transmitter cards. The following figures show the indicators and connectors on a fully equipped chassis. Transmitter Chassis Front and Rear Panels Figure 1. - Page 8 4. HDMI local: Connects to a local HDMI display. 5. VGA input: Connects to VGA and analog audio source using a proprietary cable. 6. HDBaseT RJ-45: Connects to a remote CrystalView HDT Receiver via CAT5e/6 cable. 7. USB- B: Connects to a computer source via USB- A/B cable.
-

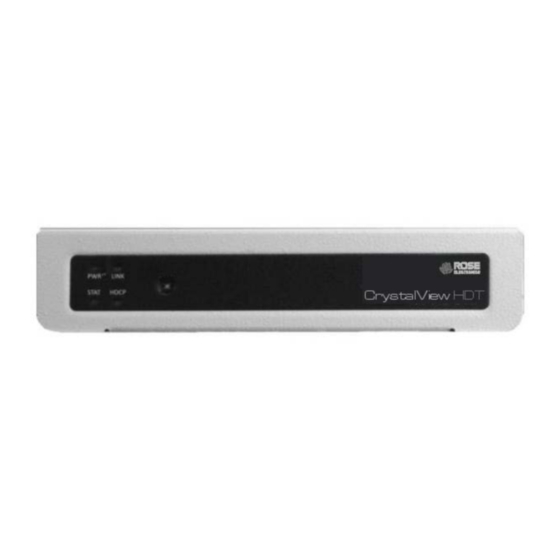

Page 9: Receiver Front And Rear Panels
4. USB-A: Connects to a USB keyboard and mouse. 5. Dip Switches: Used to perform firmware upgrades. 6. HDBaseT RJ-45: Connects to a CrystalView HDT Transmitter card via CAT5e/6 cable. 7. HDMI Output: Connects to an HDMI monitor for digital video and audio. -
Page 10: Installation
INSTALLATION AND OPERATION Installation The installation of the CrystalView HDT is quick and simple. This section of the manual describes how to connect the CrystalView HDT to computers and video equipment. While the steps given here need not be followed in any particular order, it is recommended that power is applied to the unit as a final step. -
Page 11: Basic Setup When Connecting To A Video Player
Basic Setup When Connecting to a Video Player The following figure shows a typical setup of CrystalView HDT Transmitter and Receiver connected to a remote video player. Figure 4. Basic Setup When Connecting to a Video Player’ ■ Connect an HDMI cable between the video player’s HDMI output and the HDMI input on the transmitter card. -
Page 12: Operation
Operation Operating the CrystalView HDT is simple and intuitive. The sections below describe keyboard commands for certain basic operations. Video Image adjustment with VGA input sources When working with a VGA source, there may be times for a given resolution when the image is not ideally aligned on the display screen. -
Page 13: Safety
PRODUCT SAFETY Safety The CrystalView HDT, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 14: Maintenance And Repair
Houston, Texas 77099 USA Technical Support If you are experiencing problems, or need assistance in setting up or operating your CrystalView HDT, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: TechSupport@rose.com... -
Page 15: Appendices
TrueHD and DTS-HD Power Power Supply Transmitter 100 ~ 240 V / 48 V DC Adapter Receiver No external power supply required; 10 W (5 V) over Ethernet Power Consumption Transmitter Max 120 Watt Receiver Max 10 Watt CrystalView HDT Manual... -
Page 16: Appendix B - Part Numbers
Transmitter FCC Class A, CE, C-Tick Receiver FCC Class B, CE, C-Tick Appendix B – Part Numbers Part Number Description CRV-HDB-DH06-P CrystalView HDT Six Bay Chassis CRV-HDB-DLHDTXT-P/IRK HDMI Transmitter Card CRV-HDB-DLVGTXT-P/IRK VGA Transmitter Card CRV-HDB-SRVGTXU-P CrystalView HDT Receiver SWP-HDB-PA48/160 Optional Power Adapter, 48V 160W... - Page 17 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
