  • Page 1 Containers gebruiksaanwijzing betjeningsvejledning user manual bruksanvisning betriebsanleitung användarmanual mode d’emploi käyttöohjekirja...

  • Page 2: Copyright

    This also applies to the corresponding diagrams and/or charts. Animo retains the right to alter parts at any given time without prior or immediate announcement to the consumer. The content of this manual can also be changed without any prior warning. This manual is valid for the standard model of the device.

  • Page 3: Table Of Contents

    Container (CNe/CNi) TABLE OF CONTENTS Copyright ..........................45 Safety ............................47 Important information ....................... 47 Warning signs ........................47 Intended use ........................48 Modifications ........................48 Safety devices ........................49 Safety precautions ......................49 Users ..........................50 Directives .......................... 51 Guarantee ........................

  • Page 4: Safety

    Container (CNe/CNi) Safety Important information This user manual is intended to help you operate this machine safely and effectively. This manual gives information about installation, operation and maintenance of the equipment. Make sure to read and understand the manual before use. It is your responsibility to operate this machine in accordance with all the safety instructions and procedures in this manual, and with all other safety procedures in your workplace.

  • Page 5: Intended Use

    Only connect the container(s) to the power socket(s) on the tower. Do not connect any other appliance(s). Animo is always willing to discuss improving the value of its machines to users by means of modifications or alterations. Refer to 1.11.

  • Page 6: Safety Devices

    • Keep away from moving parts. • Use Animo replacement parts only. • Use Animo recommended products only. 1.6.2 During installation •...

  • Page 7: Users

    If the power cable is damaged: If the machine has a separate, detachable power cable, replace the damaged power cable with a new supply cable. Only use an Animo replacement part. Refer to 2.3.6 WARNING To entirely uncharge the machine, unplug the machine.

  • Page 8: Directives

    1.11 Further help and information Animo is committed to provide the highest level of support to users and operators of its products. Contact the dealer for information regarding settings, maintenance and repair work, which is not included in this document.

  • Page 9: Description

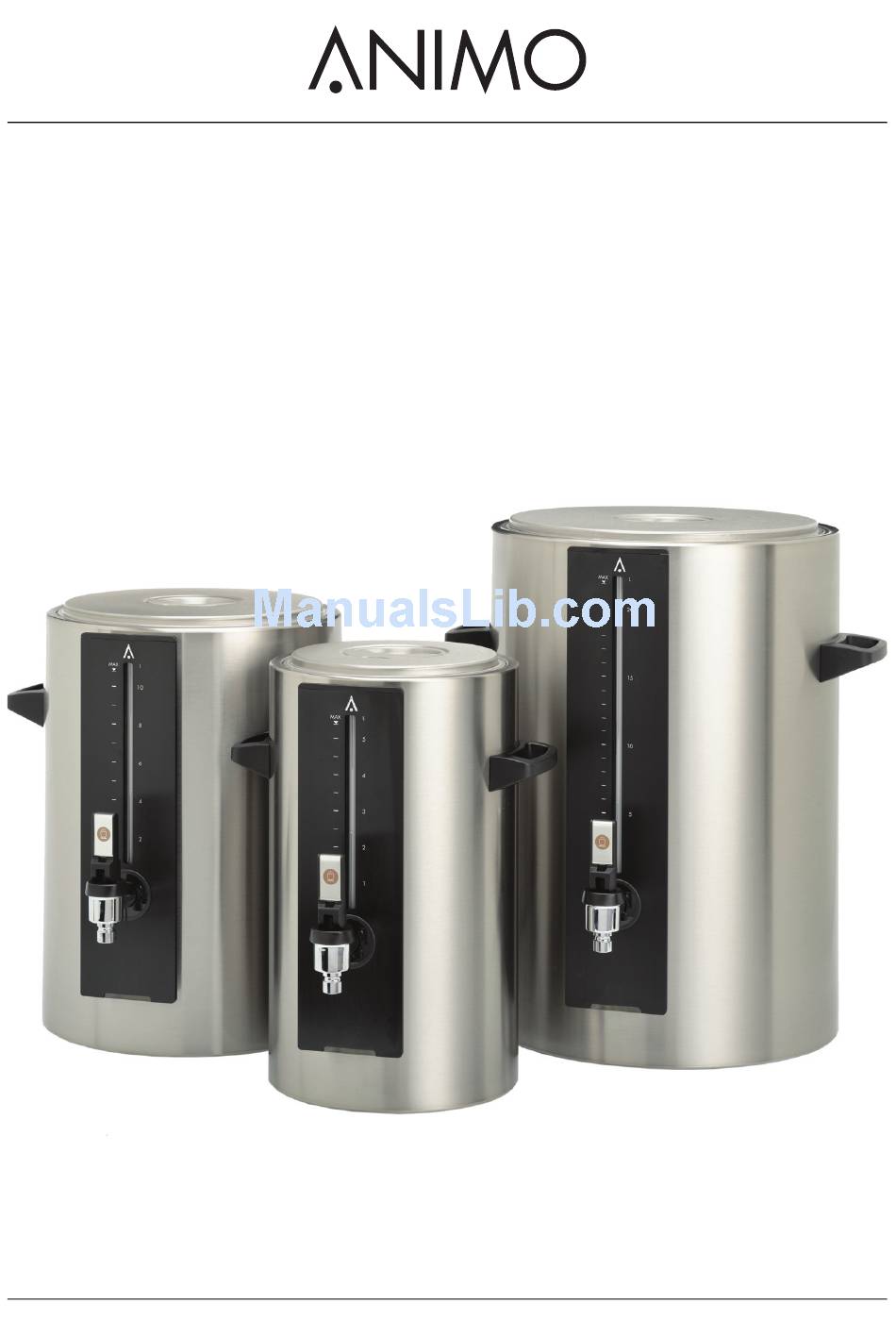

    Container (CNe/CNi) Description Overview 2.1.1 Container assembly A: Water distributor lid B: Basket filter C: Insulated lid D: Blender - transport disk E: Integrated gauge glass 2017/04 V.1...

  • Page 10: Working Principle

    Container (CNe/CNi) F: Tap G: LED light H: Filling pipe (brewing tea application) Tea filter with disk (brewing tea application) J: Handle K: Container L: Electrical socket with splash protector (CNe) Working principle 2.2.1 Coffee blender and basket filter The basket filter (A), a paper filter, and a pre-loaded coffee product receive the hot water. The filtered coffee then flows through the coffee blender (B) into the container.
  • Page 11 Container (CNe/CNi) 2.2.3 Container The container (A) keeps the hot beverage ready for consumption. The container has a tap (C) to serve the beverage. The CNe model container has an electric element (B) to keep the beverage heated. 2.2.4 Electric socket (CNe) The container model CNe is connected to the electric socket with an electric cable which is plugged into the container (B) and the socket (A).

  • Page 12: Specifications

    Container (CNe/CNi) Specifications 2.3.1 Model names and model numbers CB 5 (liter) CB 10 (liter) CB 20 (liter) Type / Model name / Model name / Model name / description Model number Model number Model number Electric heating CN 5e...
  • Page 13 Water pressure ........MPA ...~..V ..Hz ..W Made in The Netherlands Dr. A.F. Philipsweg 47 • NL-9403 AD Assen • www.animo.eu A: Model number B: Article number C: Supply voltage [V] D: Machine number E: Water pressure [MPa] F: Power [W] G: Frequency [Hz] 2.3.6...
  • Page 14 Container (CNe/CNi) Item Description Item number Basket filter paper 101/317 - container CN5 01115 152/457 - container CN10 01116 203/533 - container CN20 01117 Tea filter with disk Container CN5 57003 Container CN10 57005 Container CN20 57011 Filling pipe Container CN5 17018 Container CN10 17019...

  • Page 15: Transport And Installation

    Do not position the container on open fire or on a hotplate. • Position the container on a counter which has a firm surface. • When the container is positioned on a serving trolley, the container must be fixed with an Animo locating lug or lock-ring. 2017/04 V.1...
  • Page 16 Container (CNe/CNi) 3.2.1 Package contents Cartons and Contents accessories Basket filter carton Synthetic filter Water distributor lid Basket filter papers (approximately 25 pieces) Container carton Container CNe Container CNi Insulated lid Blender / transport disk Gauge glass brush Sticker sheet: coffee / tea / hot water / blank Mains power cable (1.5 meter)

  • Page 17: Operation

    Container (CNe/CNi) Operation Prepare for use 4.1.1 Preparation Make sure that the machine is properly installed. Refer to 3.2 Make sure the machine and the accessories are in good condition. If the machine or accessories are in poor condition, contact a service engineer. Make sure that the inner pot of the container is clean.

  • Page 18: Brew The Coffee

    Container (CNe/CNi) Brew the coffee Put the recommended coffee dosage (A) into the filter paper inside the container. Spread the coffee evenly in the filter paper. Put the filter lid with water distributor (B) onto the basket filter. Direct the hot water into the distributor lid. Brew the tea Put the recommended tea dosage (A) into the tea filter in the container.

  • Page 19: Complete The Coffee Brewing Process

    Container (CNe/CNi) Complete the coffee brewing process Note • If you have a CB model with a second container, you can start a new brewing process while the first container completes the brewing process. When the water supply stops coming out of the swivel arm over the first container, put the swivel arm over the second container and start the brewing process again.

  • Page 20: Complete The Tea Brewing Process

    Container (CNe/CNi) Move the swivel arm (A) away from the container (B). Take the water distributor (C) off the basket filter (D). Take the basket filter off the container. Put the insulated lid (E) onto the container. Dispose of the filter and the contents of the filter, and clean the filter basket.

  • Page 21: Maintenance

    Container (CNe/CNi) Maintenance Cleaning and disinfecting detergents Caution • Only use Animo cleaning products where specified. • Do not put the container type CNe into water. WARNING Avoid chemical burns and eye injuries. Use safety gloves and protective glasses when using cleaning products.
  • Page 22 Container (CNe/CNi) 5.2.3 General cleaning instructions for the containers Note The container type CNi can be submersed in water. Caution Do not put the container type CNe in a dishwasher or sink. Do not leave the lid on a container after cleaning. Position the lid ajar so that there is an air flow into the container.
  • Page 23 Container (CNe/CNi) 5.2.6 Clean the filter lid with water distributor Note You can clean the filter lid with water distributor in a dishwasher. Wash the lid in warm water with detergent. Rinse the lid in clean water and dry it. 5.2.7 Clean the blender Wash the blender in warm water with detergent.
  • Page 24 Container (CNe/CNi) 5.2.10 Clean the tap on a container Make sure that the container is empty and that the power cable is disconnected. Unscrew the top of the tap (A). Turn the top of the tap anti- clockwise. Take the silicon sealer (B) from the top of the tap. Do the procedure to remove beverage deposits from other parts, to clean the top of the tap and the seal.

  • Page 25: Troubleshooting

    Container (CNe/CNi) Troubleshooting Problem Possible cause Correction The CNe does not heat the The cable is not plugged in cor- Examine if the cable is plugged in beverage. rectly. correctly. The CNe does not heat the The cable is damaged. Contact a service engineer.
  • Page 26 Container (CNe/CNi) 2017/04 V.1...
  • Page 27 Container (CNe/CNi) 2017/04 V.1...
  • Page 28 Animo B.V. Dr. A. F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu 2017/04 V.1 1006528...
