QUICK-START INSTALLATION GUIDE
Steps to complete in order to get audio from the console:
1.
Quasar Surface - Physical connections
2.
Quasar Surface - Network configuration
3.
Quasar Surface – Modules discovery & configuration
4.
Quasar Engine – Installation & network configuration
5.
Checking Connection to the Quasar Engine
1.
Quasar Engine – Audio outputs configuration
2.
Surface Layer Configuration
3.
Input Source Creation and Configuration
4.
Assign Sources to Input Channels
5.
Program assignment & monitoring

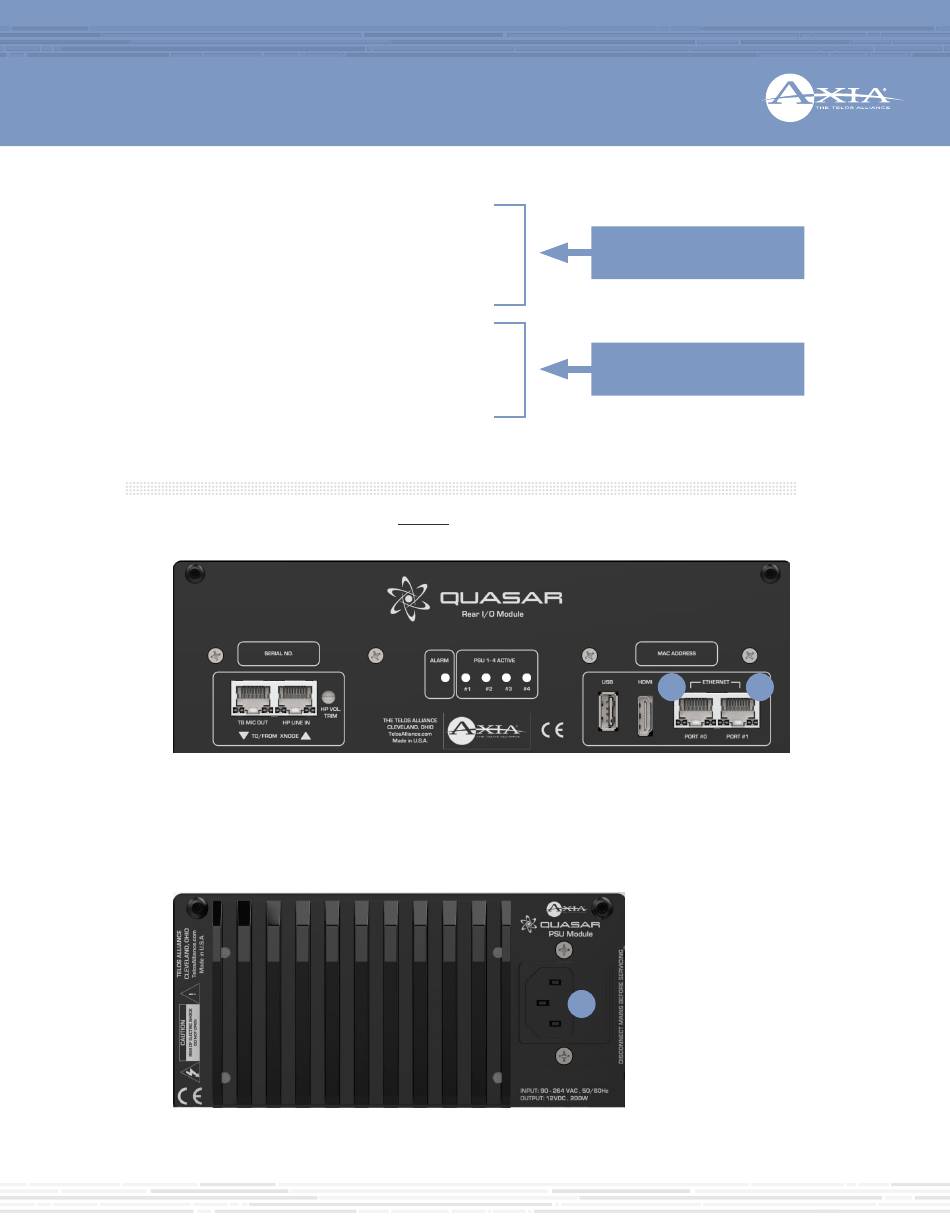

Quasar Surface - Physical connections
1. Connect one Ethernet cable to the primary network port labeled "PORT #0"(A) on the Quasar
Console Rear I/O board, connect the other end to a configured Gigabit Ethernet switch.
2. Optionally, it is possible to also use the secondary ethernet port, labeled "PORT #1" (B) to create
a redundant connection link. This will require a specific configuration of the switch ports. Please
refer to the user manual for details about this option.
3. Connect an Ethernet cable to the Livewire port (F) on the Quasar Engine, and connect the other
end to a configured Gigabit Ethernet switch.
Initial Setup
Console Configuration
A
B
C
