QUICK-START INSTALLATION GUIDE
4. Connect the Quasar surface Power Supply Unit (or Units, if you have more than one installed in
your frame) to AC Mains (C) using the Axia Power Supply power cable (or cables) provided. If you
have more than one power supply installed and choice of standard and uninterrupted mains in
your studio, it is a good idea to connect each PSU to a different type of Mains supply.
5. Make Sure your AC Mains are properly grounded! The Quasar (like every other professional device)
is grounded through the AC Mains cables, and does not require a separate chassis ground.
6. Continue to Network Configuration with your Axia Quasar surface modules.
Quasar Surface - Network configuration
Once the console is started up, the Quasar Master Touchscreen Module (MTS Module) will present you
with its Home page, were a round clock is displayed. Above the clock you will notice a warning message:
"No Connection to Engine". This is normal.

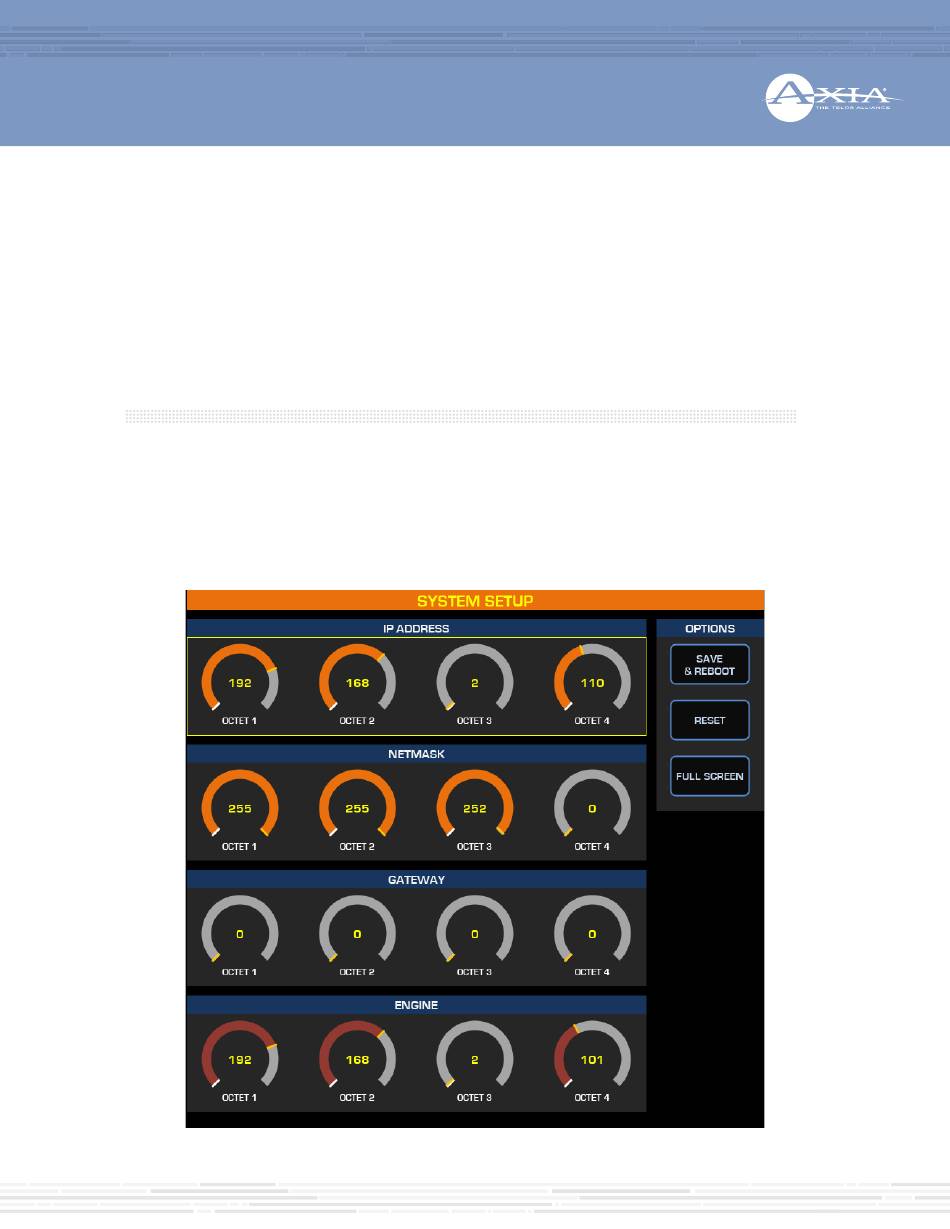

Now you need to access the System Setup page: push and hold for 5 seconds the Monitor Options key
(labeled "MON OPT" and located between the two Control Room volume pots). Here you will need to
assign an IP address to your console, as well as the Network Mask, and bind the surface to the engine.
