QUICK-START INSTALLATION GUIDE

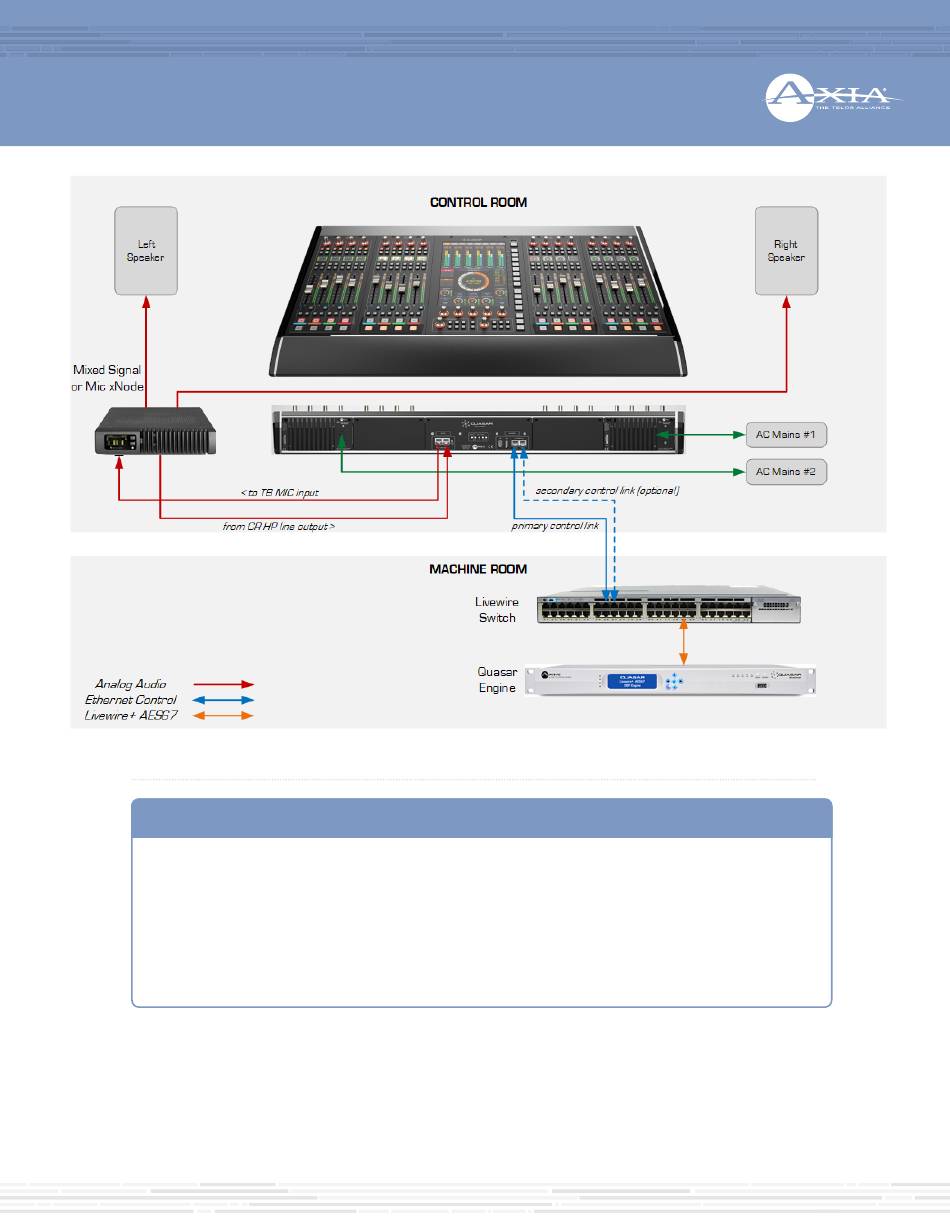

Example of simple Studio configuration. Connection of the optional TBP-IO module is included in this drawing.
REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES:
There are a few additional items required for a successful installation. Check the list below and make sure
you have what you need.
Included items:
•
Quasar Control Surface
•
Quasar Mains Cable(s)
•
CAT5 Ethernet Cable
Then, let's check your installation type and make sure you have what you need.
Installation type:
You could be installing a Table-Top or Flush-Mount console, with single or split frame. Only the Quasar
Engine can be connected to the Quasar Surface. This consists in an industrial rackmount server platform,
with redundant PSU and fans, so it will have to go in a machine room. Other mixing engines such as the
fanless Axia Studio Engine, or Axia Powerstation, cannot be used with Quasar.
Items you need to supply:
•
A Quasar Engine mixing engine
•
Switch configured for Axia network
•
PC with access to your Axia network
