Dundalk LeisureCraft Eagles Nest Assembly Instructions Manual

Outdoor sauna
Hide thumbs

Advertisement

Quick Links

Download this manual
Ver. 2.1

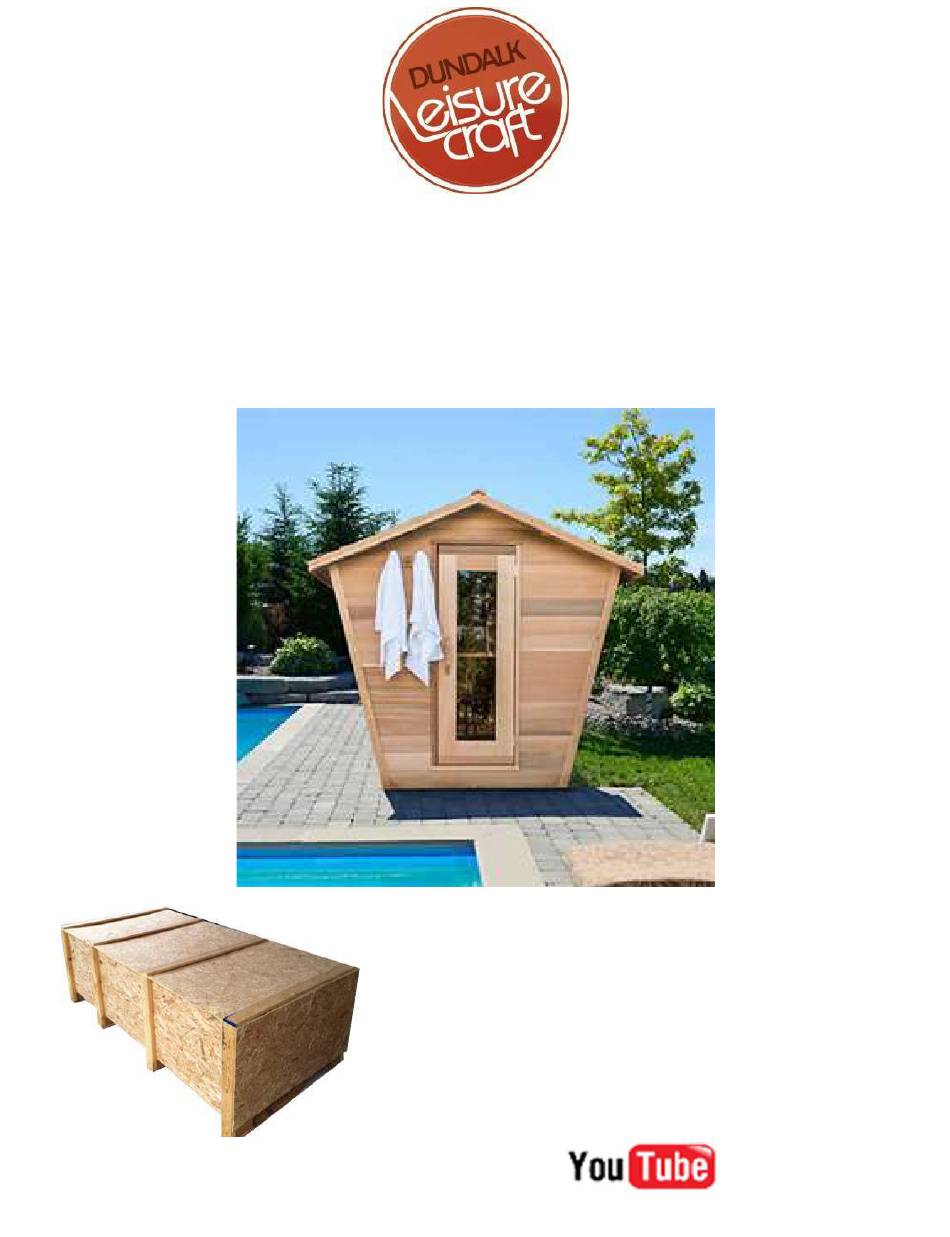

Dundalk LeisureCraft Eagles Nest Outdoor Sauna

Assembly Instructions

Please read and understand the complete instructions prior to assembly and use of your sauna.
Customer agrees not to hold
Dundalk LeisureCraft Inc. and any of its authorized dealers liable for improper installation,
maintenance and repair of this product
Requirements:
2 People (recommended)
Carpenter's Hammer
Step Ladder
Cordless Drill (we supply the bit)
Tape Measure
Carpenter's Level
Rubber Mallet
7/16" wrench
View the assembly process on
ph: 519-923-9813 | info@dundalkleisurecraft.com| web: www.dundalkleisurecraft.com
