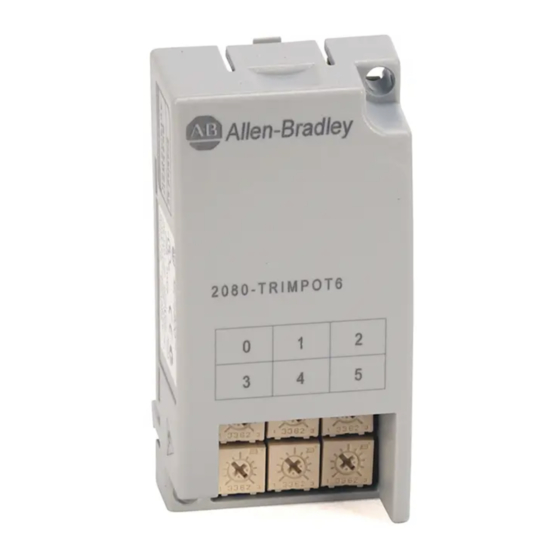

Micro800™ 6-Channel Trimpot Analog Input
Plug-In Module
Catalog Number 2080-TRIMPOT6
http://literature.rockwellautomation.com
Cette publication est disponible en français sous forme électronique (fichier PDF).
FR
Pour la télécharger, rendez-vous sur la page Internet indiquée ci-dessus.
Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla
IT
collegarsi al sito Web indicato sopra.
Diese Publikation ist als PDF auf Deutsch verfügbar. Gehen Sie auf die oben
DE
genannte Web-Adresse, um nach der Publikation zu suchen und sie
herunterzuladen.
Esta publicación está disponible en español como PDF. Diríjase a la dirección web
ES
indicada arriba para buscar y descarga esta publicación.
Esta publicação está disponível em portugués como PDF. Vá ao endereço web que
PT
aparece acima para encontrar e fazer download da publicação.
ZH
ZC
KO
Wiring Diagrams

Advertisement

Table of Contents
loading

Related Manuals for Rockwell Automation Micro800

Summary of Contents for Rockwell Automation Micro800

  • Page 1 Wiring Diagrams Micro800™ 6-Channel Trimpot Analog Input Plug-In Module Catalog Number 2080-TRIMPOT6 http://literature.rockwellautomation.com Cette publication est disponible en français sous forme électronique (fichier PDF). Pour la télécharger, rendez-vous sur la page Internet indiquée ci-dessus. Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla collegarsi al sito Web indicato sopra.

  • Page 2: Environment And Enclosure

    2 Micro800™ 6-Channel Trimpot Analog Input Plug-In Module Environment and Enclosure This equipment is intended for use in a Pollution Degree 2 industrial ATTENTION environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11.

  • Page 3: North American Hazardous Location Approval

    Micro800™ 6-Channel Trimpot Analog Input Plug-In Module 3 North American Hazardous Location Approval The following modules are North American Hazardous Location approved: 2080-TRIMPOT6 The following information applies Informations sur l’utilisation de cet when operating this equipment in équipement en environnements dangereux: hazardous locations: Products marked "CL I, DIV 2, GP A, B, C, D"...

  • Page 4: Parts List

    4 Micro800™ 6-Channel Trimpot Analog Input Plug-In Module Parts List Your package contains one trimpot plug-in module. Channels 45068 • If you insert or remove the module while power is on, an electrical arc can WARNING occur. This could cause an explosion in hazardous location installations.
  • Page 5 Micro800™ 6-Channel Trimpot Analog Input Plug-In Module 5 Insert Module into Controller Follow the instructions to insert and secure the plug-in module to the controller. 45069 1. Position the plug-in module with the trimpots facing the front of the controller as shown.

  • Page 6: Specifications

    6 Micro800™ 6-Channel Trimpot Analog Input Plug-In Module Specifications General Attribute Value Mounting torque 0.2 Nm (1.48 lb-in) North American temp code Environmental Attribute Value Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20…65 °C (-4…149 °F)
  • Page 7 Micro800™ 6-Channel Trimpot Analog Input Plug-In Module 7 Certifications Certification (when Value product is marked) c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E322657 UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S.

  • Page 8: Rockwell Automation Support

    New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
