Rockwell Automation Allen-Bradley Micro800 Wiring Diagrams

Digital input, output, and combination plug-in modules
Hide thumbs Also See for Allen-Bradley Micro800:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Instruction and Installation Manual

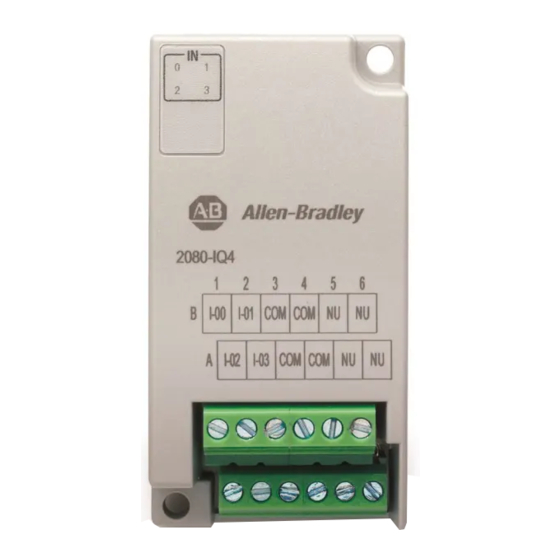

Micro800 Digital Input, Output, and
Combination Plug-in Modules
Catalog Numbers 2080-IQ4, 2080-IQ4OB4, 2080-IQ4OV4,
2080-OB4, 2080-OV4
http://www.rockwellautomation.com/literature/
Cette publication est disponible en français sous forme électronique (fichier PDF).
FR
Pour la télécharger, rendez-vous sur la page Internet indiquée ci-dessus.
Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla
IT
collegarsi al sito Web indicato sopra.
Diese Publikation ist als PDF auf Deutsch verfügbar. Gehen Sie auf die oben
DE
genannte Web-Adresse, um nach der Publikation zu suchen und sie
herunterzuladen.
Esta publicación está disponible en español como PDF. Diríjase a la dirección web
ES
indicada arriba para buscar y descarga esta publicación.
Esta publicação está disponível em portugués como PDF. Vá ao endereço web que
PT
aparece acima para encontrar e fazer download da publicação.
ZH
ZC
KO
Wiring Diagrams

Advertisement

Table of Contents
loading

Related Manuals for Rockwell Automation Allen-Bradley Micro800

Summary of Contents for Rockwell Automation Allen-Bradley Micro800

  • Page 1 Wiring Diagrams Micro800 Digital Input, Output, and Combination Plug-in Modules Catalog Numbers 2080-IQ4, 2080-IQ4OB4, 2080-IQ4OV4, 2080-OB4, 2080-OV4 http://www.rockwellautomation.com/literature/ Cette publication est disponible en français sous forme électronique (fichier PDF). Pour la télécharger, rendez-vous sur la page Internet indiquée ci-dessus. Questa pubblicazione è disponibile in Italiano in formato PDF. Per scaricarla collegarsi al sito Web indicato sopra.

  • Page 2: Environment And Enclosure

    2 Micro800 Digital Input, Output, and Combination Plug-in Modules Environment and Enclosure ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11.

  • Page 3: North American Hazardous Location Approval

    Micro800 Digital Input, Output, and Combination Plug-in Modules 3 North American Hazardous Location Approval The following modules are North American Hazardous Location approved: 2080-IQ4, 2080-IQ4OB4, 2080-IQ4OV4, 2080-OB4, 2080-OV4 The following information applies Informations sur l’utilisation de cet when operating this equipment in équipement en environnements hazardous locations: dangereux:...
  • Page 4 4 Micro800 Digital Input, Output, and Combination Plug-in Modules Parts List Your package contains one Micro800™ digital input, output, or combination plug-in module, two module fastening screws, and these pinout guide wiring instructions. actual status indicators vary depending on catalog number 45867 ATTENTION: This plug-in module is intended for use with Micro800 Family of Programmable Controllers.

  • Page 5: Wire The Module

    Micro800 Digital Input, Output, and Combination Plug-in Modules 5 Wire the Module Follow the pinout diagram to wire your plug-in module. 12-Pin Female Terminal Block 2080-IQ4 Back (View into terminal block) Pin A1 I-02 Pin B1 I-00 Pin A2 I-03 Pin B2 I-01 Pin A3 COM Pin B3 COM...
  • Page 6 6 Micro800 Digital Input, Output, and Combination Plug-in Modules Insert Module into Controller Follow the instructions to insert and secure the plug-in module to the controller 45012 WARNING: If you insert or remove the module while the controller power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations.

  • Page 7: Specifications

    Micro800 Digital Input, Output, and Combination Plug-in Modules 7 Specifications Input Specifications, 2080-IQ4, 2080-IQ4OV4, 2080-IQ4OB4 Attribute Value DC on-state voltage, min 9.0V DC DC on-state voltage, max 30V DC DC on-state current, min 2.0 mA @ 9V DC DC on-state current, nom 3.0 mA @ 24V DC DC on-state current, max 5.0 mA...

  • Page 8: General Specifications

    8 Micro800 Digital Input, Output, and Combination Plug-in Modules Output Specifications, 2080-OB4, 2080-OV4, 2080-IQ4OB4, 2080-IQ4OV4 Attribute Value Power supply voltage, min 10.8V DC Power supply voltage, max 30V DC On-state voltage, min 10V DC On-state voltage, nom 24V DC On-state voltage, max 30V DC On-state current 5.0 mA @ 10V DC, min...

  • Page 9: Environmental Specifications

    Micro800 Digital Input, Output, and Combination Plug-in Modules 9 Environmental Specifications Attribute Value Temperature, operating IEC60068-2-1 (Test Ad, Operating Cold), IEC60068-2-2, (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20...65 °C (-4…149 °F) Temperature, surrounding air, 65 °C (149 °F) max.
  • Page 10 10 Micro800 Digital Input, Output, and Combination Plug-in Modules Certifications Certification (when Value product is marked) c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File E322657 UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S.
  • Page 11 Micro800 Digital Input, Output, and Combination Plug-in Modules 11 Notes: Publication 2080-WD011A-EN-P - January 2012...

  • Page 12: Rockwell Automation Support

    Rockwell Automation representative. New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
