TP-583Txr/TP-583Rxr Quick Start Guide
This guide helps you install and use your TP-583Txr/TP-583Rxr for the first time.
Go to
if firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
TP-583Txr HDMI Line Transmitter or
TP-583Rxr HDMI Line Receiver

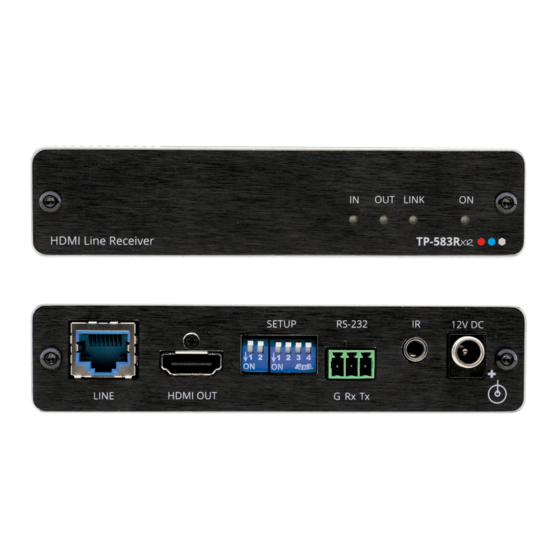

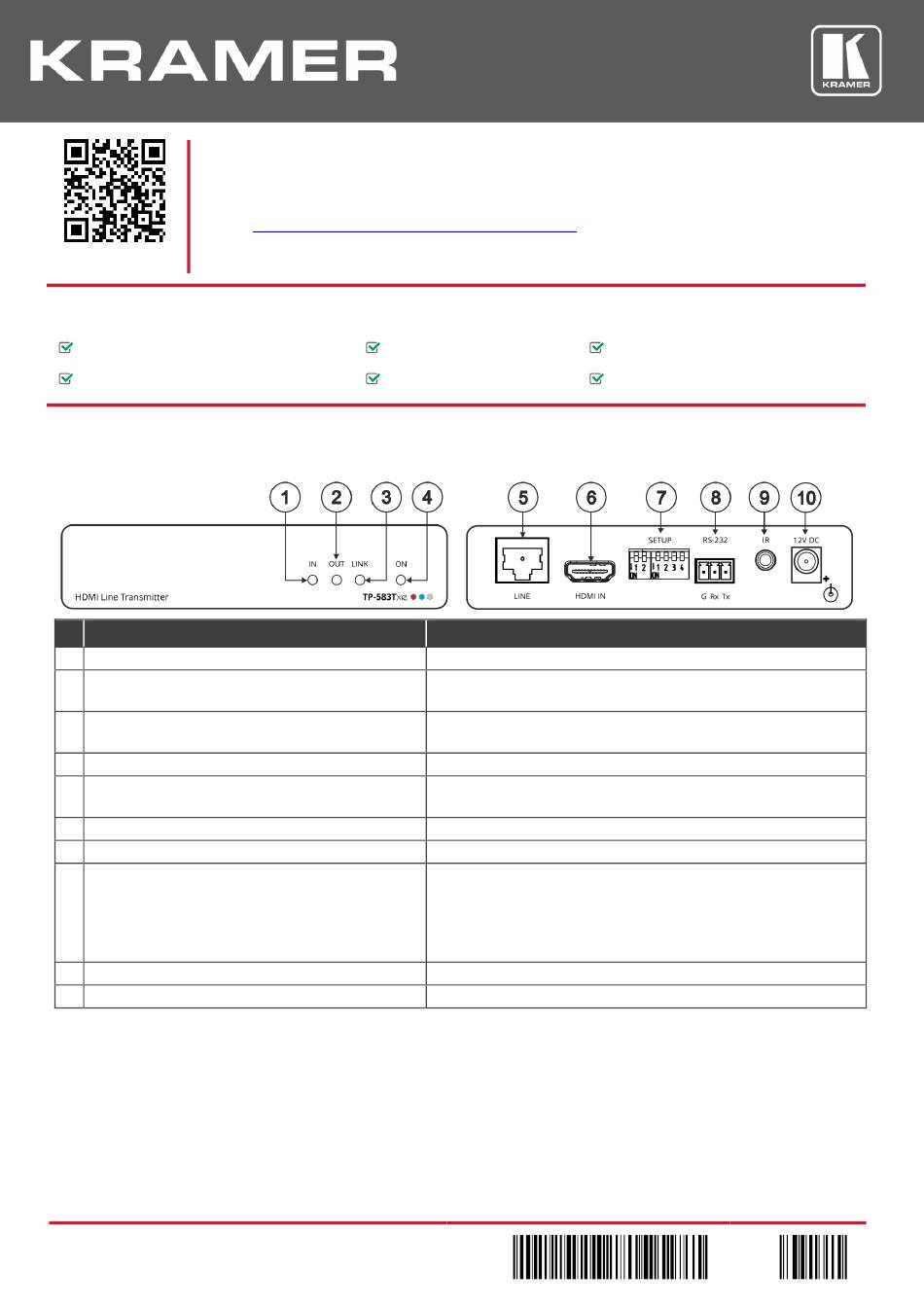

Step 2: Get to know your TP-583Txr and TP-583Rxr
TP-583Txr
# Feature
1 IN LED
2 OUT LED
3
LINK LED
4 ON LED
5 LINE RJ-45 Connector
6 HDMI™ IN Connector
7 SETUP DIP-switches
8 RS-232 (G, Rx, Tx) 3-pin Terminal Block Connector
9 IR 3.5mm Mini Jack Connector
10 12V DC Power Connector
TP-583Txr/TP-583Rxr Quick Start
(P/N: 2900-300959QS REV 1)
www.kramerav.com/downloads/TP-583Txr, TP-583Rxr
1 Power adapter and cord
4 Rubber feet
to download the latest user manual and check
Function
Lights green when an active source device input signal is detected.
Lights green when an active, far-end sink (acceptor) connection is
detected via the HDBT link.
Lights green when an HDBT link is established with the HDBaseT
receiver.
Lights green when the device receives power.
Connect to the RJ-45 HDBT LINE connector on a receiver (for
example, TP-583Rxr, TP-780Rxr and so on).
Connect to an HDMI source.
Set the operation DIP-switches.
Connect to a laptop to control the receiver or perform firmware
upgrade.
Connect to a controller device (for example, SL-240C) to serially
control a remote device (for example, the HDMI OUT acceptor) that
is connected to TP-583Rxr.
Connect to an external infrared emitter / sensor.
12V DC connector for powering the unit.
P/N: 2 9 0 0 - 3 0 0 9 5 9 QS
1 Quick start guide
1 Bracket set
Rev: 1
