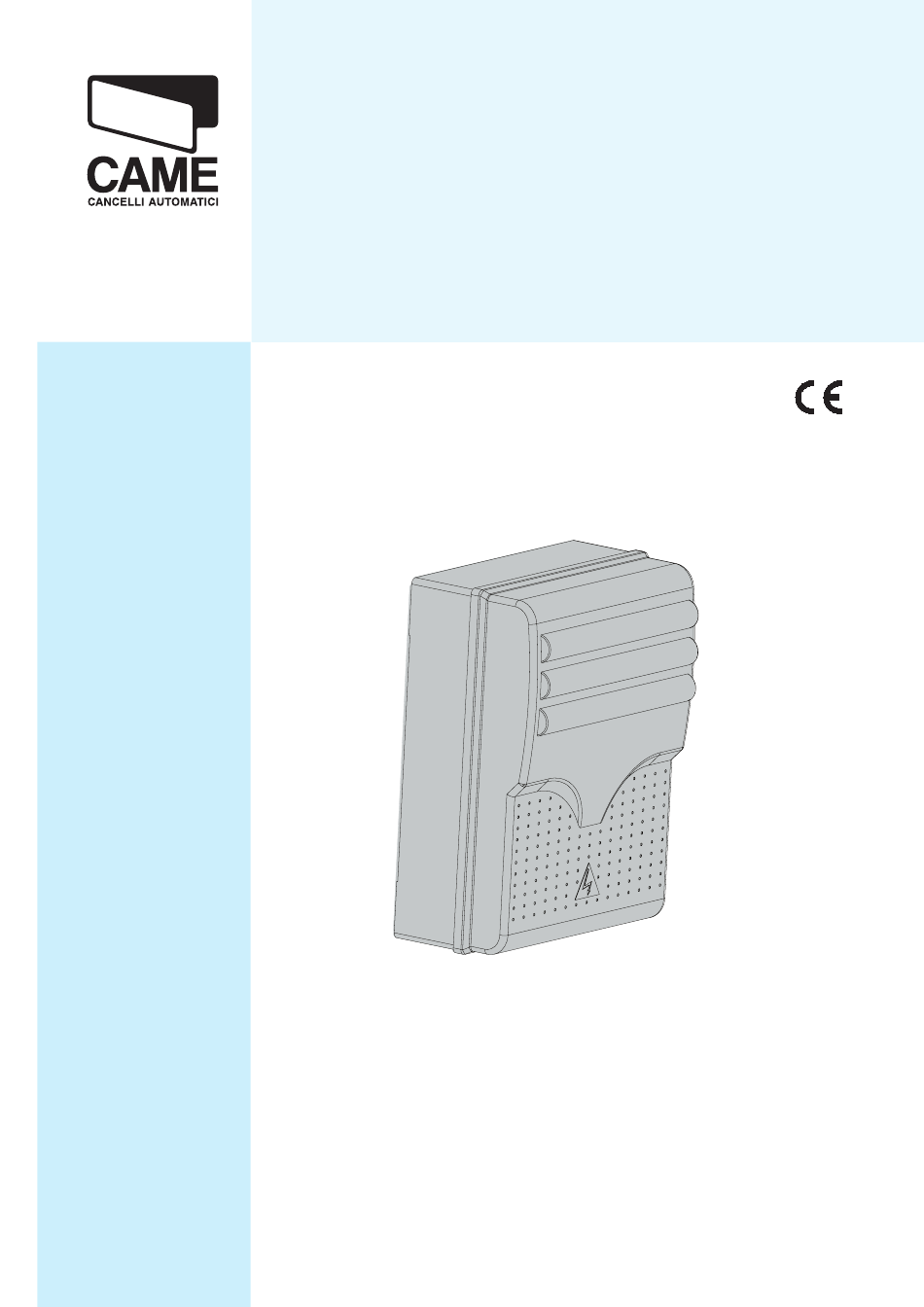

- Page 1 Control panel for CBXET ZT5-ZT5C INSTALLATION MANUAL...
-
Page 2: Standards Followed
This symbol indicates notes to communicate to users. 2 Destination and use Precautions applications 2.1 Destination The ZT5-ZT5C electrical panel (ZT5C version with built-in command keys and safety lock) were designed to control CBXET automation units in the movement of sectional, sliding and swing gates. Precautions applications - Comply with the distances and diameters of the cables shown in the table in Chap. -
Page 3: Main Components
CONTRAST CONTROL BOARD CONTROL BOARD R700 R700 AF AF S1 GND Push button panel ZT5C box 1-Display 2- 1A fuse for accessories 3- 1A fuse for control unit 4- 8A line fuses 5- R700 board connector 6- AF board connector... -
Page 4: Installation
5 Installation 5 .1 Preliminary checks Before proceeding with the installation, it is necessary to: • Check that the control panel is installed in an area protected from bumps and that the anchorage surface is solid, and that it is secured with suitable elements (screws, inserts, etc). •... - Page 5 The holes measure 20/21 mm diameter 5.4 Minimum thickness and type of cables Length of Length of ca- Length of ca- Connections Type of cable cable 1<10 M ble 10<20 M ble 20<30 M 230/400V 3F power supply line 4G 1,5mm² 4G 2,5mm²...
-
Page 6: Electrical Connections
5.5 Electrical connections 230/400V A.C. power supply; three phase (ZT5) Connections on R, T, S 230/400V A.C. power supply; three-phase (ZT5C ) 230V/400V 50÷60 H three-phase motor ,Maximum power: 780W 230V A.C. 25W max. (in motion) output for flashing lamp 230V max. - Page 7 5.5 Electrical connections 10 11 CX CY TS (1-2) STOP Button N.C. 10 11 CX CY TS (2-3P) Partial opening N.O. button 10 11 CX CY TS (2-3) Total opening N.O. button 10 11 CX CY TS (2-4) Closure N.O. button CESSORIES FUSE PROGRAMMING FUNCTION 10 11...
- Page 8 5.5 Electrical connections (2-CX) photoelectric cell DOC and DIR connection 10 2 TX C NC Tx 2 10 11 1 3p 3 CX CY TS 10 11 1 3p 3 CX CY TS (2-CY) photoelectric cell DOC and DIR connection 10 2 TX C NC Tx 2 10 11 1...
- Page 9 PROGRAMMING FUNCTION - confirm and memorize the set value < > ENTER ENTER < > The ESC key serves to : WWW.CAME.IT WWW.CAME.IT LANGUAGE - exit the menu CBXET - cancel the modifications < > ENTER The < > keys serve to:...
-
Page 10: Menu Structure
6.3 Menu structure Press ENTER for 1 second ENTER Lang. selec. ENTER LANGUAGE ENTER > TIMES ENTER Italian ENTER < 10 sec > Operat. time > > < > < > English A.C. T. < 10 sec > ENTER > >... - Page 11 6.4 Menu entries Language Language selection: This selects the language of the menu from the available languages. Lang. select LANGUAGE ENTER ENTER English French Italian > > > > German Spanisch Dutch > > Time Operating time: motor operating time during a single 10” to 120” opening or closing operation. Oper.
- Page 12 6.4 Menu entries Dead Man (maintained action): enables or disables the function (maintained action). Dead man FUNCTIONS ENTER > <ON > ENTER < > < > <OFF> Closing Dead Man (maintained closing action): enables or disables the function (maintained action during closing). Clos.
- Page 13 6.4 Menu entries Radio/User Shut the power off prior to inserting a coding board to the control panel (see pg. 15). New user: to create new users New user RADIO/USERS ENTER > Vedere descrizione dettagliata Change user: to make changes in the functions associated to users. New user RADIO/USERS ENTER...
- Page 14 6.5 Run adjustment Execute a complete run of opening Then confirm by pressing From the adjustment menu, using (< >), to reach the maximum ENTER. select Run adjustment and confirm by PROGRAMMING FUNCTION PROGRAMMING FUNCTION opening point. pressing ENTER < >...
- Page 15 6.6 Decoder cards To control the card by radio controls or passes, connect the AF radio card desired with the respective radio control and for the R700 card for TSP00/LT001 proximity sensors. N.B. if the appropriate decoding board is not included, it is not possible to enter users (the maximum no. of users that may be entered is 250) AF and R700 boards should be inserted with the power switched off.
- Page 16 Move inside the display as explained previously to obtain the desired message. The maximum limit of characters is 32 or 16 per row. Once the message is written, keep the ENTER key pressed for at least 3 seconds. WWW.CAME.IT CBXET...
-
Page 17: Error Messages
COMMERCIAL AND OTHER CLOSING MECHANISMS (+39) 0422 4940 - fax (+39) 0422 4941 EN 12445 NDUSTRIAL COMMERCIAL AND OTHER CLOSING MECHANISMS internet: www.came.it - e-mail: info@came.it EN 12978 ..AFETY DEVICES FOR POWER OPERATED DOORS AND GATES EN 60335 - 1 AFETY IN APPARATUSES FOR HOME USE Hereby declare, under their own respons ibility, that the product/s called ... - Page 18 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. 0044 115 9210430 0044 115 9210431...
