Mounting and operating instructions
UK

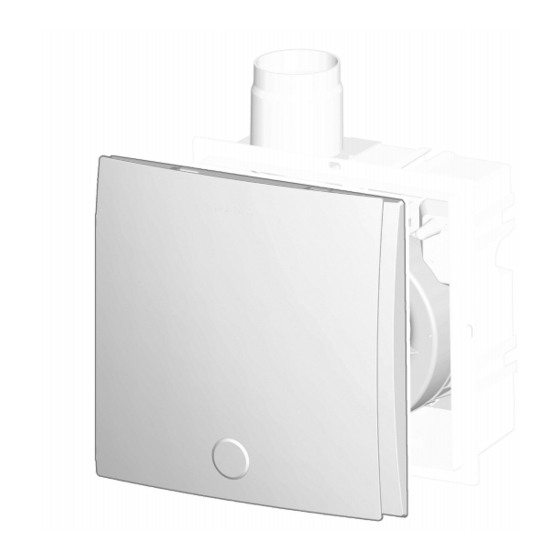

ER EC covers
For ER EC recess-mounted exhaust
air systems (according to DIN 18017-3)
w w w . m a i c o - v e n t i l a t o r e n . c o m
ER-A
ER-AK
ER-AH
ER-AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maico ER-A

Summary of Contents for Maico ER-A

  • Page 1 Mounting and operating instructions ER EC covers For ER EC recess-mounted exhaust air systems (according to DIN 18017-3) ER-A ER-AK ER-AH ER-AB w w w . m a i c o - v e n t i l a t o r e n . c o m...

  • Page 3: Table Of Contents

    10.2 Commissioning ......12 Cover – upper part 10.3 Removing fan insert ....... 12 Cover – lower part with touch operating unit Installing the cover ER-A, ER-AK, ER-AH, ER-AB ........12 Motion detector Settings with touch operating unit ER-AK, ER-AH, ER-AB ......13 Overview figure 12.1 Filter change function ....

  • Page 4: Scope Of Delivery

    Scope of delivery Intended use Depending on the order: ● ER-A (article no. 0084.0361): These fans are used to extract air from Standard cover: Lower part of cover and interior bathrooms and toilets rooms, storage rooms or open plan kitchens (with outside...

  • Page 5: Safety Instructions And Warnings

    4. Safety instructions and warnings During the build phase, damage to Safety instructions and unit caused by soiling of the fan and warnings air channels. Fan operation is not permitted during the build phase. Warnings: Symbols, meaning Grease and oil vapours from range Indicates a possible situation, NOTICE hoods may contaminate the fan and...
  • Page 6 4. Safety instructions and warnings switched back on and a visible warning sign Risk to health if filters are not positioned. Only operate the fan when it is replaced or if there are no air filters. completely installed. Heavily soiled or moist air filters can accumulate harmful substances (mould, Risk of injury and health risk in the germs, etc.).

  • Page 7: Operating The Fan

    ● Filter change display via TimeStrip accordance with standards. ( title page). In the event of overload (blocking), The TimeStrip for the ER-A the fan switches off automatically. standard cover is visibly attached to Ensure sufficient supply air during a location of your choice (e.g. next to operation.
  • Page 8 6. System and product information ER-AK cover ● Comfort version with time module. ● With operating parameters that can be set. Setting via touch operating elements. ● Air volume 30 m³/h, 60 m³/h according to factory setting. Further volumetric flows that can be set: Base load 20, 30 or 40 m³/h, full load 60 or 100 m³/h.

  • Page 9: Er Ec Functions

    6. System and product information 6.3 ER EC functions ER-A ER-AK ER-AH ER-AB Filter change display (6 months) with TimeStrip ● Filter change display (6 months) with LED ● ● ● Controller with time module ● ● ● Control with fully automatic humidity control: Extraction takes place automatically if the specified switch-on ●...

  • Page 10: Environmental Conditions And Operating Limits

    ER-AK, ER-AH and ER-AB 2/2,5/3/5/17W* air cross section of at least 150 cm²,
e.g. with Maico door ventilation grille MLK. Degree of protection IP X5 ER EC units have resistance to interference Sound power level L...

  • Page 11: Fan Insert

    10. Fan insert 3. Check wiring diagram sticker for Fan insert correctness of the ticked fan type. 10 Accommodation mounts 4. Check ease of movement of shutter. When installed, it must close automatically. 11 Stud with locking hook 12 Sealing plugs 5.

  • Page 12: Commissioning

    2. Remove the ER-A.. cover. To do so, swivel the upper part of the cover upwards, remove air filter [17], unscrew the central screw [16] and carefully remove the entire upper part.

  • Page 13: Settings With Touch Operating Unit Er-Ak, Er-Ah, Er-Ab

    12. Settings with touch operating unit 12.1 Filter change function The air filter must be changed every 6 months, regardless of the operating time. After filter change time has expired, the filter change LED blinks (red) every 5 sec. To reset the filter change interval, push the <RESET>...

  • Page 14: Automatic Humidity Function Er-Ah

    12. Settings with touch operating unit 3. Press the button <MENU> to change If the relative humidity falls below the parameter level (LED flashes briefly 2x). reference value during operation, the newly The last set value is shown (the corres- established reference value is saved.

  • Page 15: Motion Detector Function Er Ab

    Do not use aggressive cleaning agents. 13.1 Filter change 1. Clean ER-A.. cover only with a dry cloth. Change the air filter when: 2. If the cover is very dirty, remove it and ● ER-A: bar [B] is completely filled (red).

  • Page 16: Filter Change, Second Room

    Art. no. 0093.0923 Disconnect the fan completely from the mains power supply. Have error In case of questions, please contact: established and rectified by a trained Maico Elektroapparate-Fabrik GmbH electrician. In case of questions Steinbeisstraße 20 regarding fault rectification: 78056 Villingen-Schwenningen Service: +49 7720 6940.

  • Page 17: Spare Parts

    15. Spare parts Large pack of replacement air filters Spare parts ZF EC+ for ER-A, article no. 0093.0611 Spare parts may only be sourced ● 100x ZF EC+ replacement air filter from and fitted by a specialist (filter class G2) and installer.
  • Page 20 Maico Elektroapparate-Fabrik GmbH • Steinbeisstr. 20 • 78056 Villingen-Schwenningen • Germany • Service +49 7720 6940 • info@maico.de...
