Maico ER-A Installation And Operating Instructions Manual
Er ec covers for er ec flush-/surface-mounted exhaust air systems (according din 18017-3)
Hide thumbs
Also See for ER-A:
- Mounting and operating instructions (20 pages) ,
- Installation instructions manual (136 pages) ,
- Installation and operating instructions manual (80 pages)
Related Manuals for Maico ER-A
Summary of Contents for Maico ER-A
- Page 1 Installation and operating instructions ER EC covers for ER EC flush-/surface-mounted exhaust air systems (according DIN 18017-3) ER-A ER-AK ER-AH ER-AB www.maico-ventilatoren.com...
-
Page 2: Table Of Contents
Storage ........Fan insert..........10 Installation of fan insert....Commissioning ......Removing fan insert....10 Installing the cover ER-A, ER-AK, ER- AH, ER-AB ..........11 Operating the unit ......... 11 11.1 Settings with touch control unit ER-AK, ER-AH, ER-AB ..... -
Page 3: Scope Of Delivery
• Central screw ER-AB • Air filter Article no. 0084.0364 • Installation and operating instructions ER-A • Cover with motion detector Article no. 0084.0361 • Lower and upper part of cover • Standard cover: Lower and upper part of cover For accessory components with more de- •... -
Page 4: Overview Of Er Ec System

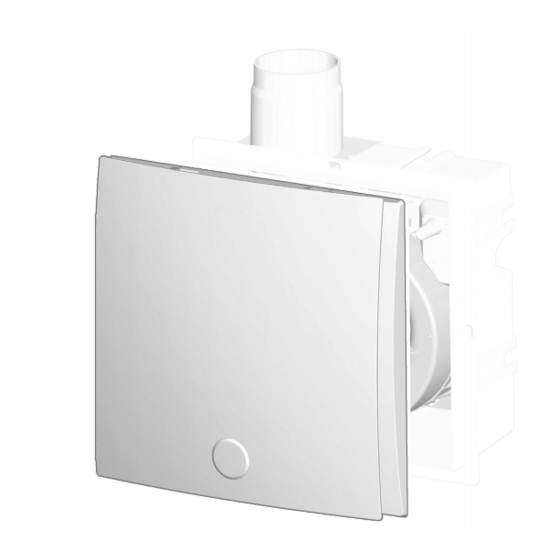

2 Overview of ER EC system 2 Overview of ER EC system Standard cover for ER-A Cover with ER AH humidity control 1 Cover – upper part 2 Cover – lower part 1 Cover – upper part 5 Cover – lower part with touch control 3 TimeStrip ( →... -
Page 5: Intended Use
Specialist installer qualifications Overview figure WARNING Indicates a possibly hazardous situation which 10 Accommodation 11 Locking hook (3 could result in death or serious injuries if not mounts (3 pieces) pieces) avoided. 12 Sealing plugs – mo- 13 Fan insert with rat- tor board interface ing plate CAUTION... -
Page 6: Safety Instructions Regarding In- Stallation, Operation, Cleaning And Maintenance
6 Safety instructions regarding installation, operation, cleaning and maintenance NOTICE Damage to unit due to grease and oil DANGER Danger if the relevant regula- vapours from range hoods. tions for electrical installations are not ob- Grease and oil vapours from range hoods may served. -
Page 7: System And Product Information
Parts (range hood, air-ventilated fireplace etc.) page). which are added or modified at a later date may The TimeStrip for the ER-A standard cover result in health risks and operation which is not is visibly attached to a location of your choice permitted. -
Page 8: Covers: Functions
8 Technical data 7.3 Covers: Functions ER-A ER-AK ER-AH ER-AB Filter change indicator ● (6 months) with TimeStrip Filter change indicator ● ● ● (6 months) with LED Control with time module ● ● ● Control with fully automatic humidity control: Extraction ●... -
Page 9: Regulations For Operation With Fireplaces
Ambient temperature – 10 °C to + 60 °C. devices. The ventilation system or the fire- Maico accepts no liability for corrosion damage places must be switched off if the equipment is caused by improper storage, e.g. storage in a triggered. -
Page 10: Fan Insert
9 Fan insert 9 Fan insert 6. Plug the fan insert directly into the 3 studs with 10 Accommodation 11 Stud with locking locking hooks. Make sure that the fan insert mount hook audibly clicks into all 3 snap-fit fasteners. 12 Sealing plug 13 Fan insert 7. -
Page 11: Removing Fan Insert
10 Installing the cover ER-A, ER-AK, ER-AH, ER-AB 3. ER-A, ER-AK, ER-AH, ER-AB: Screw cover 9.3 Removing fan insert to the fan insert with the central screw. If in- stalling on a wall, ensure that the Maico name is on the bottom right. -
Page 12: Settings With Touch Control Unit
11 Operating the unit 11.1.2 Changing setting parameters 11.1 Settings with touch control unit ER-AK, ER-AH, ER-AB LEDs flashe 100* (60)** (100)* * Additional setting values for ER-AK, ER-AB ** Setting values for ER-AH • Main menu: Menu levels V1, V2, Te, Ta and Ti •... -
Page 13: Er-Ah Automatic Humidity Function
12 Cleaning and maintenance • Overrun time: Adjustment hints • A set overrun time of 0 minutes is only valid • Ti interval operation:: The unit is switched off for manual function with a light switch. during the interval time. Then, the unit runs for 10 minutes with nominal ventilation (full load •... -
Page 14: Filter Change, Second Room
Change the air filter when the following condition 13 Fault rectification applies: Fault finding and repairs only permissible • ER-A: Bar indicator is filled completely (red). when carried out by qualified electricians. • ER-AK, ER-AH, ER-AB: LED on the lower side of the housing flashes red. -
Page 15: System And Accessory Components
Air filter in the domestic waste. Dispose of the packaging material in an environ- ZF EC+ replacement air filter for ER-A mentally-friendly way, in compliance with the reg- Article no. 0093.0610 ulations valid in the country where you are. - Page 16 Maico Elektroapparate-Fabrik GmbH Steinbeisstr. 20 78056 Villingen-Schwenningen Deutschland Service +49 7720 6940 info@maico.de D06.21_EN_DSW-AS-AV...
