Section IV - Fault Conditions and Troubleshooting

When the microprocessor detects a fault condition, it interrupts the normal operation of the controller, deactivates all
valves to vent the air from the garment(s), displays a fault code, and sounds an audible error indicator. If a Garment
Mismatch error is triggered the user may remedy the problem by pressing the corresponding A and B Button(s). Some
errors will remain active until the controller is turned off, or the battery runs out of charge (if operating on battery
power). Others can be reset once the user confirms the cause of the error and remedies the problem.

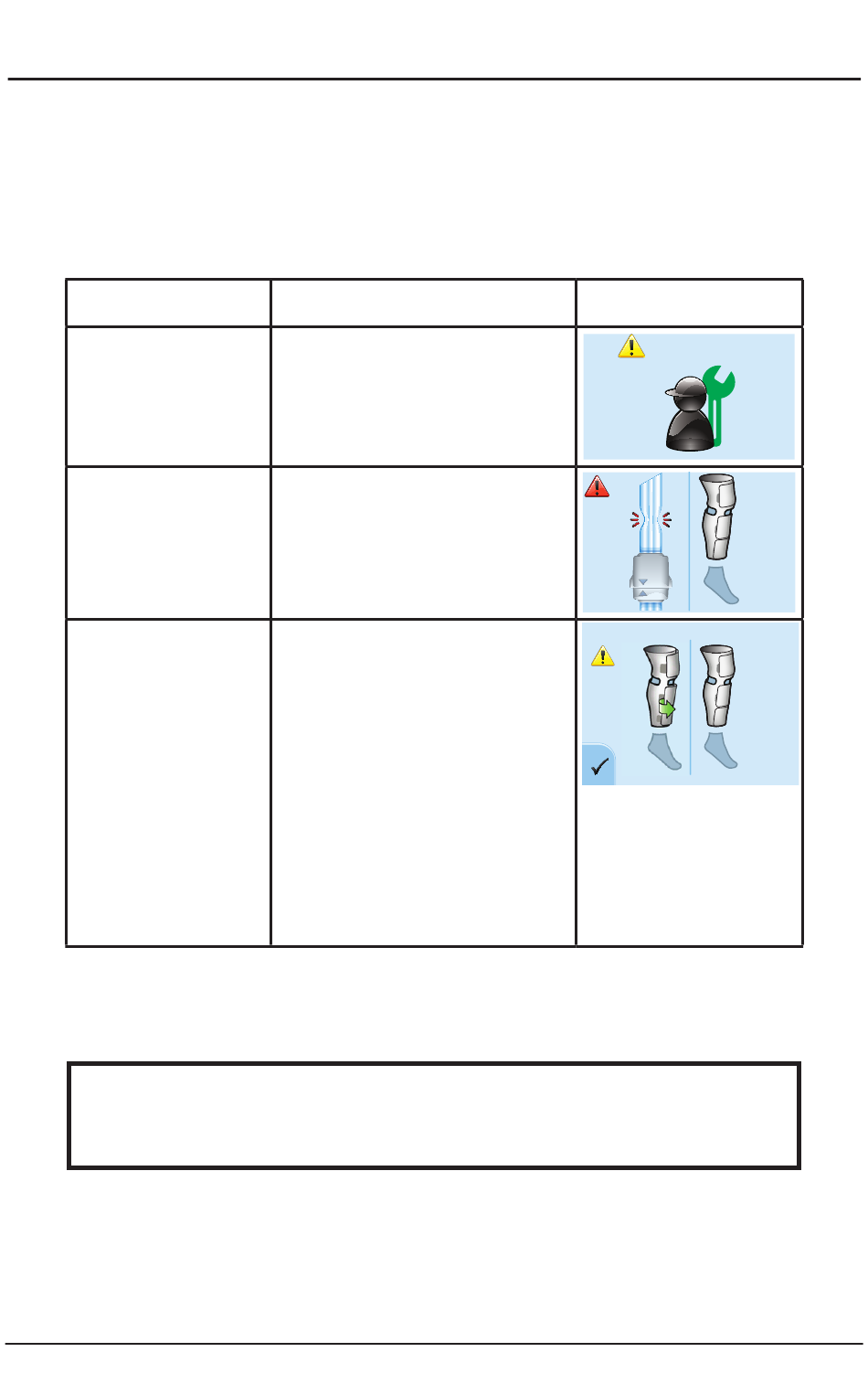

Error Types:
Service Required
Manual Reset Required
User Resettable
For information on Patient Not Detected Notification,
see Section II - Patient Detection and Compliance Meter.
Kendall SCD™ 700 Series
Description
Error code is present because of a failed
internal component. It can not be
addressed by the user.
Error that can be troubleshot and
corrected by the user but requires the
device to be powered off and on. If the
error persists, then the controller requires
service.
This type of error allows the user to
remedy the issue and resume operation
by pressing the A and B button(s)
corresponding with the port affected
without powering the unit down. For
this type of error, a check mark will be
shown indicating what port is the area of
concern. A yellow triangle indicates a low
concern error. If the triangle is red it is
indicative of an error related to a pressure
that is high in an abnormal way. If the
error persists, then the controller requires
service.
Example
E5
E1
A
E2
A
B
B
EN-14
