Controls and Indicators

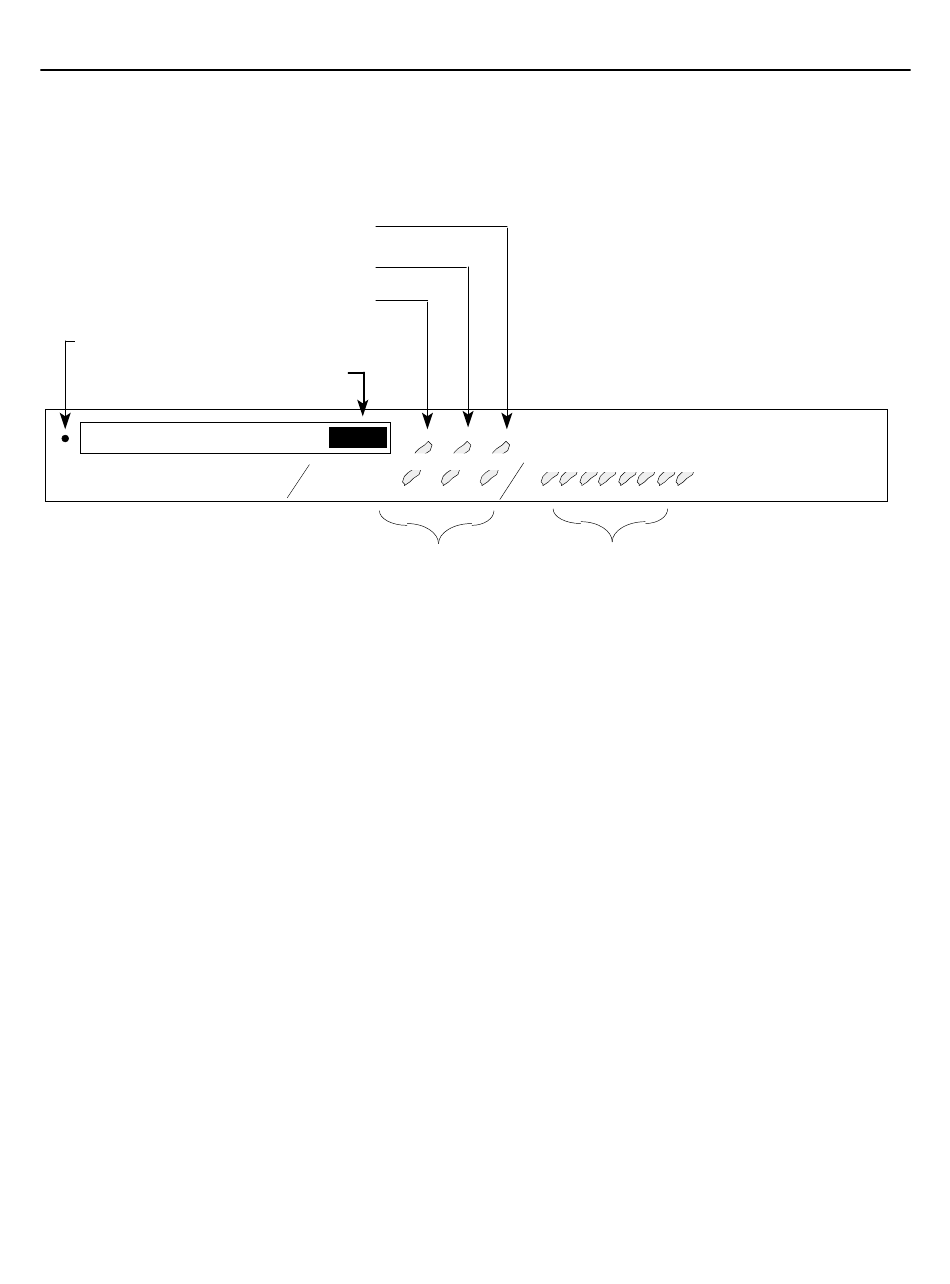

Figure 1-3 shows the location and purpose of all controls and LED indicators on the Terminal
Server 720 cards.
Console Port Status Light
720 Card Status Light
Memory Card Drive Status Light
Reset Switch
Memory Card Eject Button
Memory Card Slot
.....................................................................................................................................................
TERMINAL SERVER 720
Figure 1-3. Terminal Server 720 Controls and Indicators.
0021
CARD RUN CON
ETHERNET A B
Ethernet Segment
Indicator Lights
Introducing the Terminal Server 720
1 2 3 4 5 6 7
C
Serial Port
Status Lights
8
