I/O and Cabling Considerations
The following signal abbreviations will be used throughout this chapter:
Abbreviation
D T R
XMT
RTS
GND
RCV
DCD
RNG
CTS
DSR
3-22

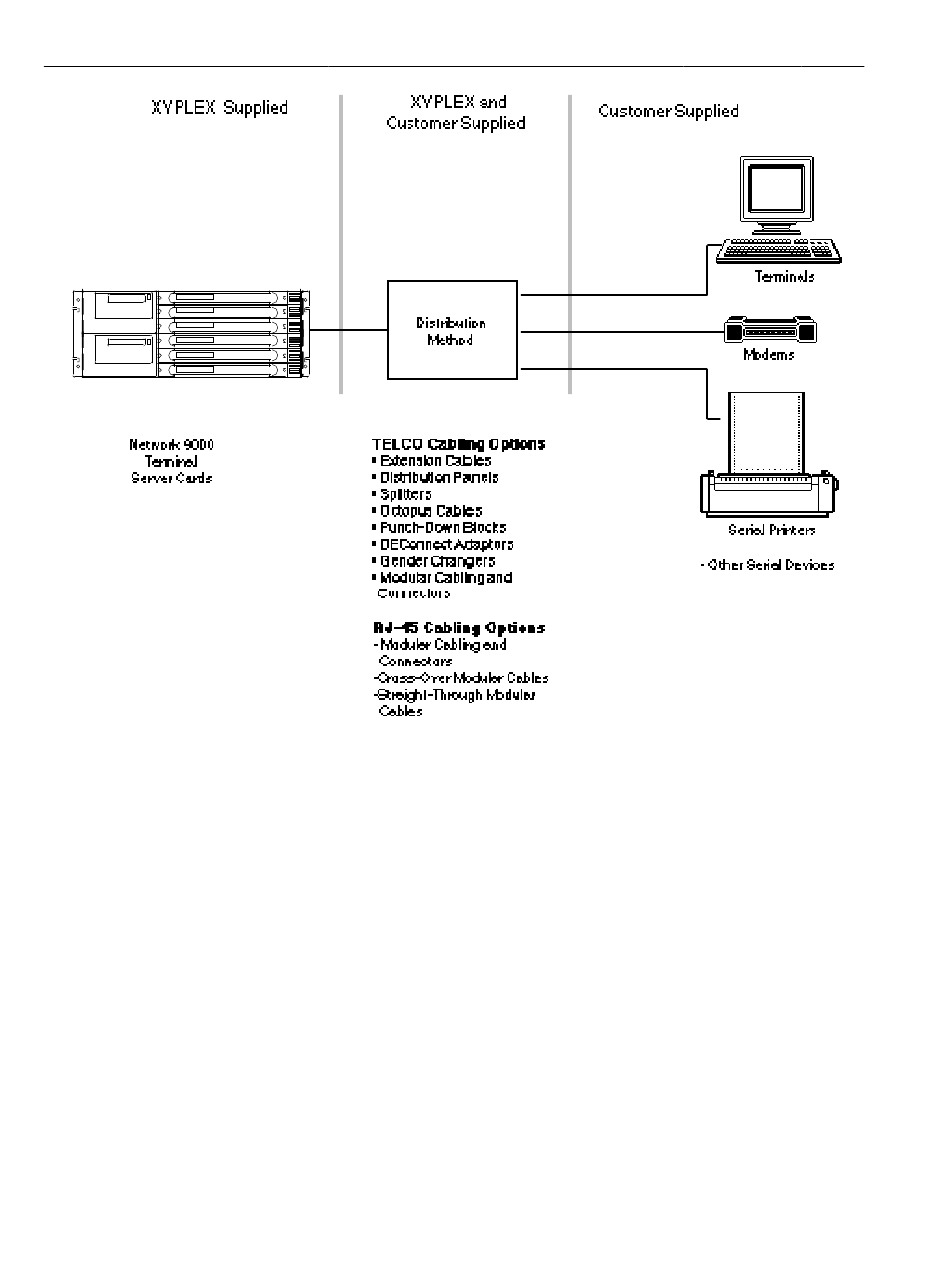

Figure 3-1. Cabling Overview.
Signal Name
Data Terminal Ready
Transmit Data
Request to Send
Ground
Receive Data
Data Carrier Detect
Ring Indicator
Clear to Send
Data Set Ready
Type Available For:
Output RJ45, Telco
Output RJ45, Telco
Output
- RJ45, Telco
Input RJ45, Telco
Input RJ45, Telco
Input RJ45, Telco
Input
Input
RJ45
RJ45
RJ45
